Pressure screw, PG strain relief 107 13.5 | PG | Polyamide | Light grey; RAL 7035
morepic-1 morepic-2

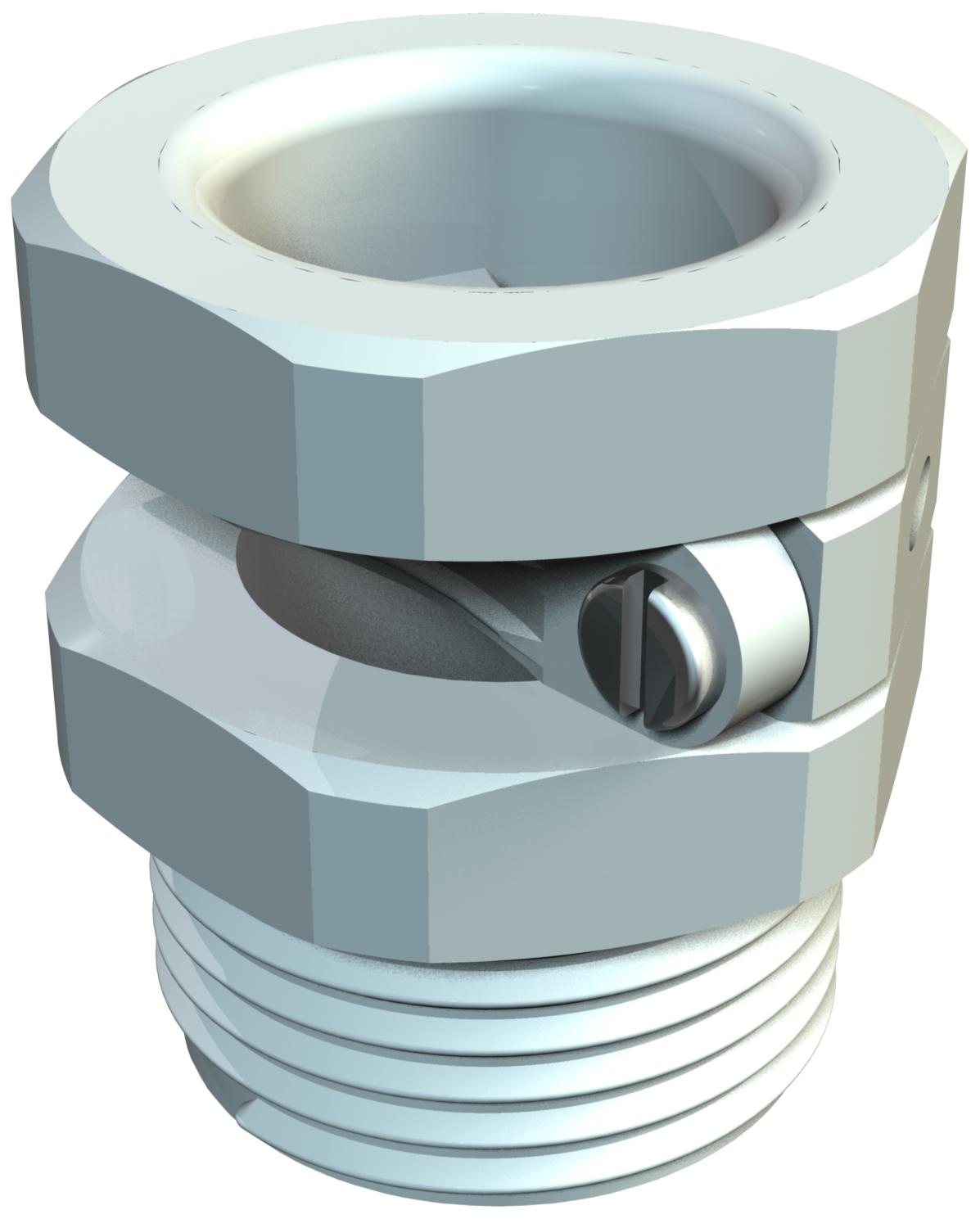

Pressure screw, PG strain relief 107

Item no. 2023121 | EAN 4012195161776

PG
Polyamide
Light grey; RAL 7035
Product description

Product description

Pressure screw with transverse clip strain relief, electrogalvanised steel screws,
PG thread to DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Clamping range, max. 14,3 mm
Clamping range, min. 4,1 mm
Colour Light grey; RAL 7035
Dimension PG13,5
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size 13,5
Strain relief option yes
Thread increase 1,41 mm
Thread type PG
WAF 23

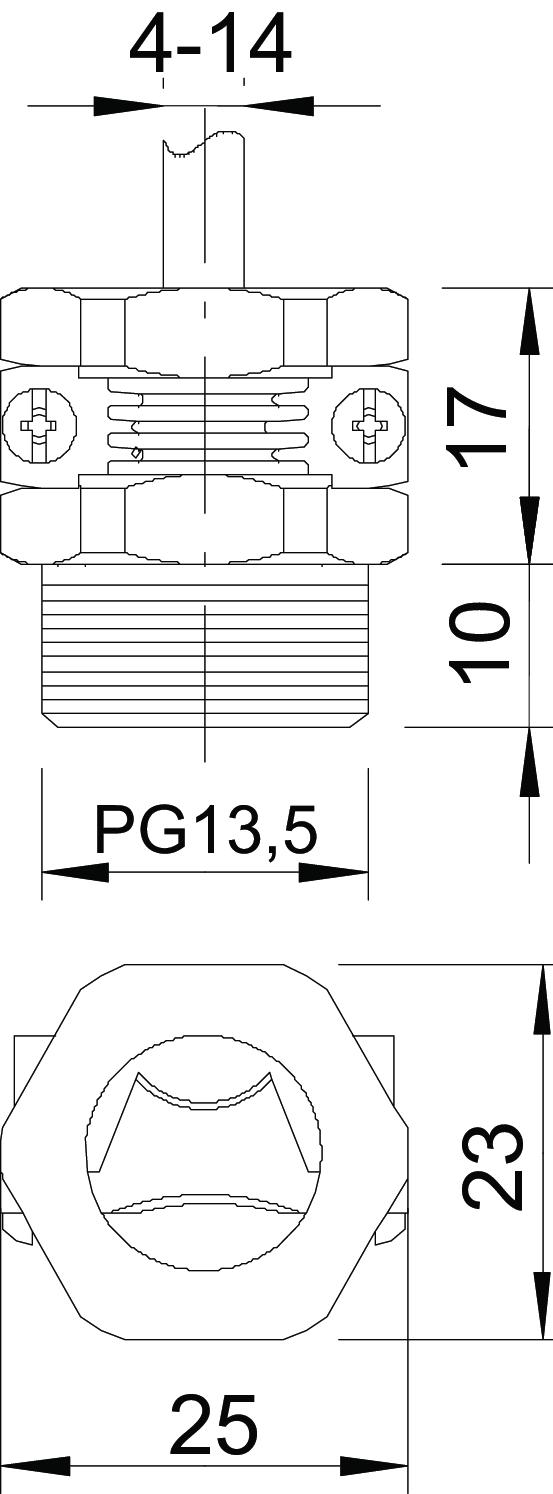

Dimensions

Dimension E 25 mm
Dimension L1 10 mm
Dimension L2 17 mm
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 Z PG 9 PA 9 PG Polyamide Light grey; RAL 7035 2023091
100 piece
107 Z PG11 PA 11 PG Polyamide Light grey; RAL 7035 2023113
100 piece
107 Z PG13.5 PA 13.5 PG Polyamide Light grey; RAL 7035 2023121
100 piece
107 Z PG16 PA 16 PG Polyamide Light grey; RAL 7035 2023164
50 piece
107 Z PG21 PA 21 PG Polyamide Light grey; RAL 7035 2023210
25 piece
107 Z PG29 PA 29 PG Polyamide Light grey; RAL 7035 2023296
25 piece
