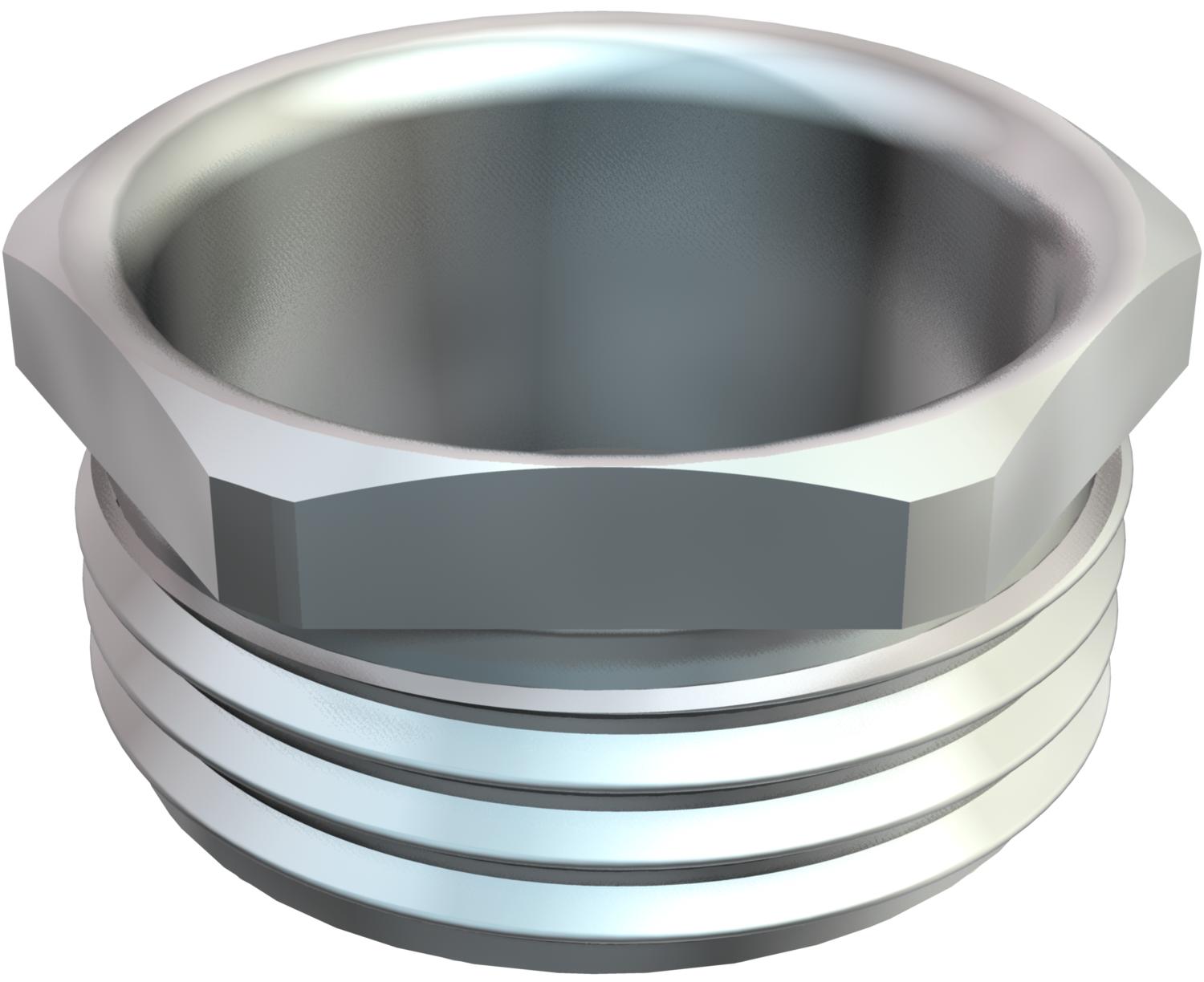

Pressure screw, PG thread

Item no. 2084201 | EAN 4012195189015

PG
Brass
Product description
Product description
Pressure screw (Part 3) in accordance with DIN 46320, with Pg thread to DIN EN 40430.
* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

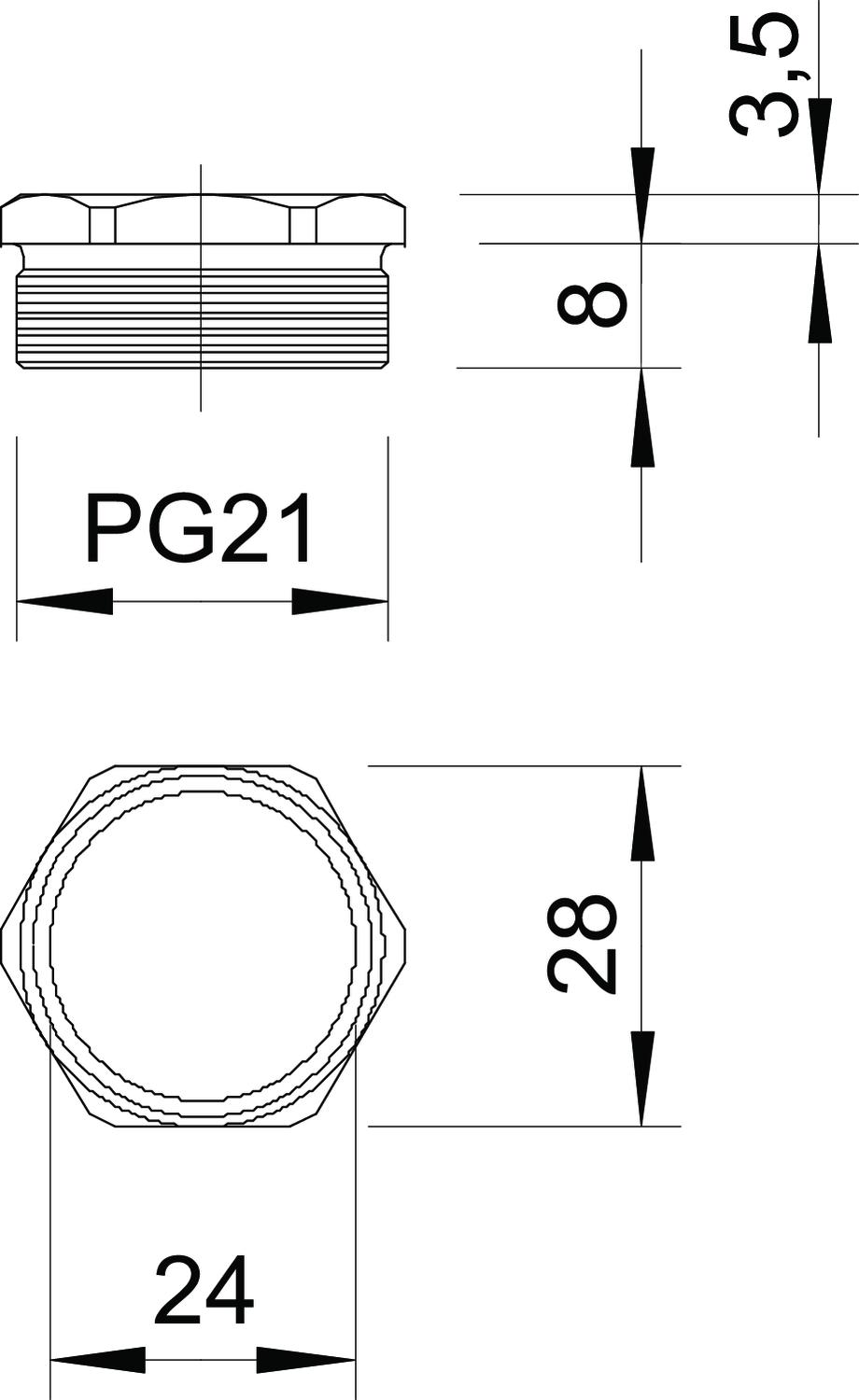

Dimension PG21
Dimension D 24 mm
Dimension E 31,2 mm
Dimension L1 8 mm
Dimension L2 3,5 mm
Fibre-glass reinforced no
Halogen-free no
Impact-resistant no
Material Brass
Nominal thread size 21
Strain relief option no
Surface Nickel-plated
Thread increase 1,59 mm
Thread length 8 mm
Thread type PG
WAF 28
All types

All types

Types Nominal thread size Thread type Material Item no. Quantity SSU
164 MS PG11 11 PG Brass 2084112
100 piece
164 MS PG16 16 PG Brass 2084163
100 piece
164 MS PG21 21 PG Brass 2084201
50 piece
