Pressure screw, PG thread, black 9 | PG | Polystyrene | Jet black; RAL 9005
morepic-1 morepic-2

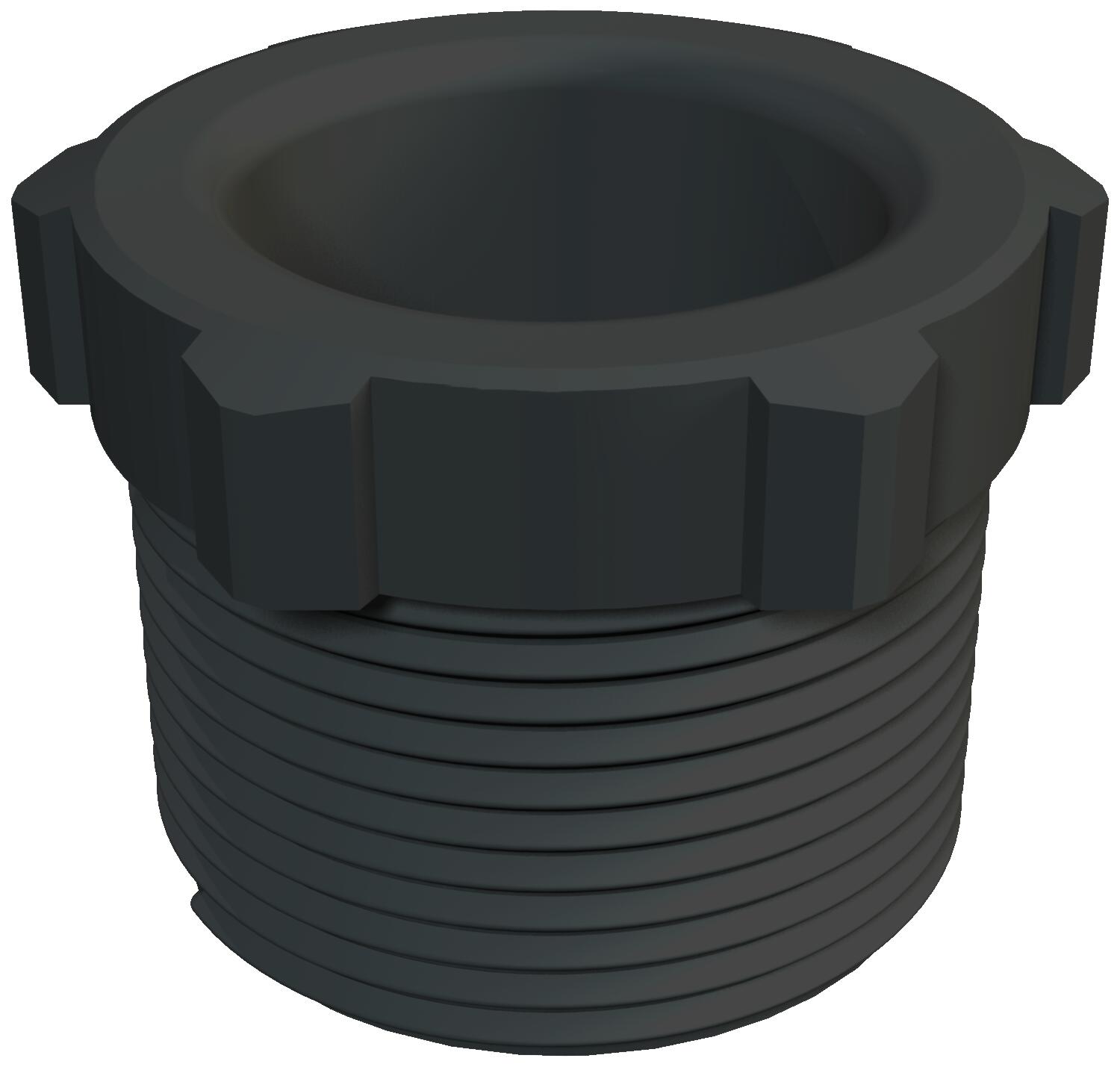

Pressure screw, PG thread, black

Item no. 2026090 | EAN 4012195164234

2026090 / 107 E PG9 PS SW
9
PG
Polystyrene
Jet black; RAL 9005
Product description
Product description
107/E: Pressure screw (Part 1) to DIN 46320,
Pg thread DIN 40430
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Jet black; RAL 9005
Dimension PG9
Dimension D 10,2 mm
Dimension E 18 mm
Dimension L1 9 mm
Dimension L2 5 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polystyrene
Nominal thread size 9
Strain relief option no
Thread increase 1,41 mm
Thread type PG
WAF 16
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 E PG9 PS SW 9 PG Polystyrene Jet black; RAL 9005 2026090
100 piece
