Pressure screw, PG thread, fibre-glass reinforced 21 | PG | Polyamide | Light grey; RAL 7035
morepic-1 morepic-2

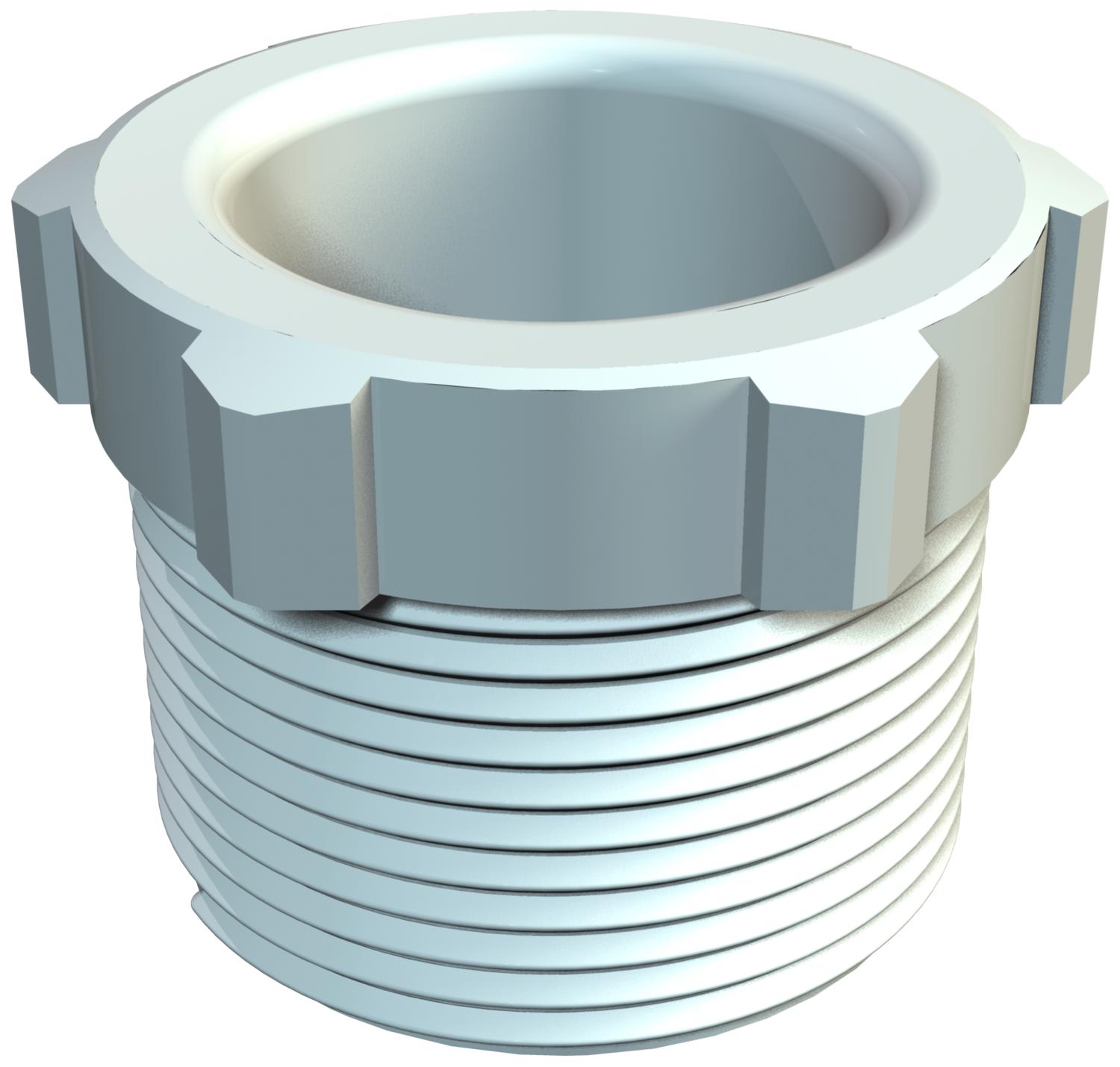

Pressure screw, PG thread, fibre-glass reinforced

Item no. 2025604 | EAN 4012195163879

PG
Polyamide
Light grey; RAL 7035
Product description
Product description
Pressure screw, Part 1, to DIN 46320, fibreglass reinforced.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

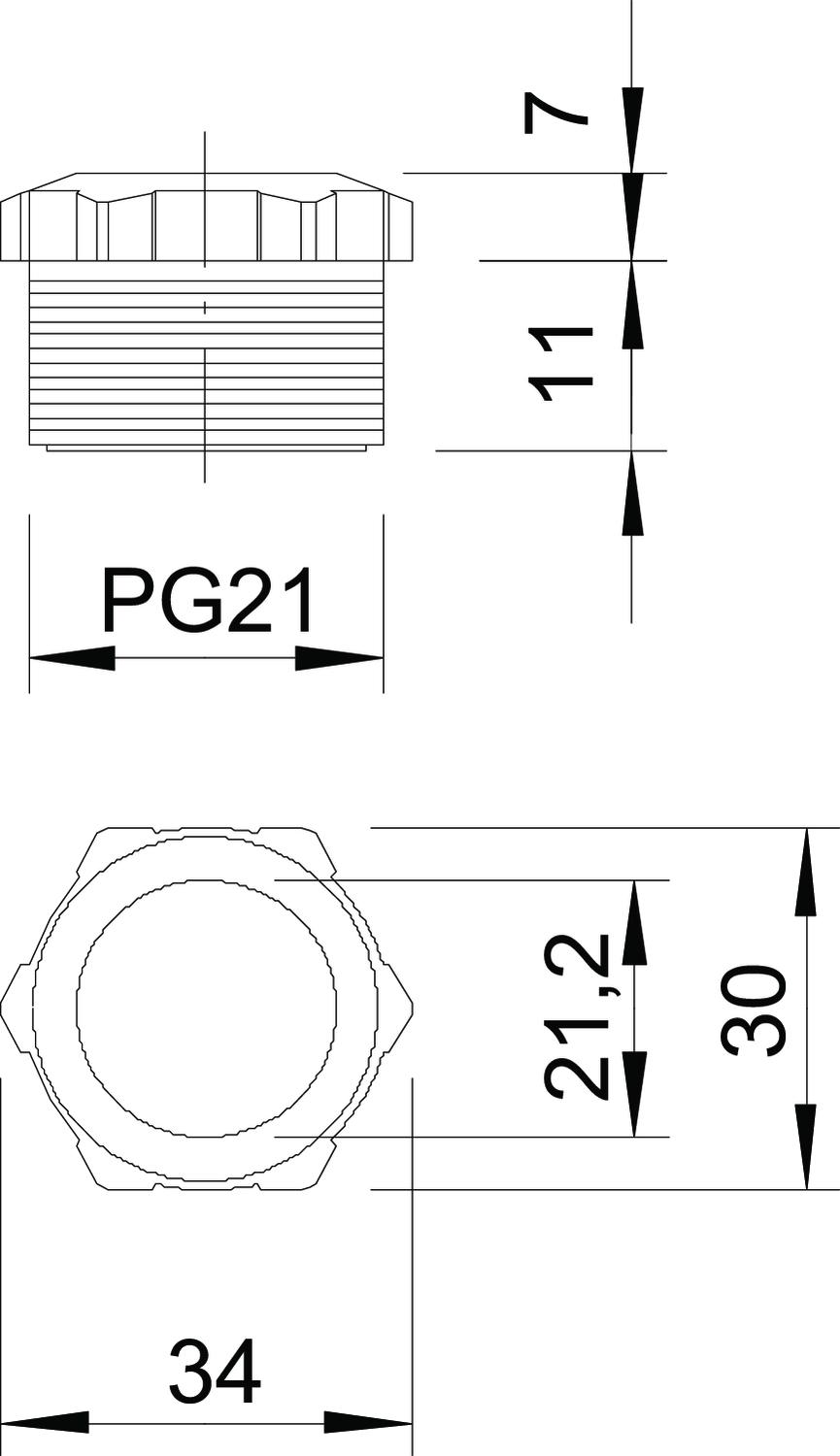

Dimension PG21
Dimension D 21,2 mm
Dimension L1 17 mm
Dimension L2 7 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant yes
Material Polyamide
Nominal thread size 21
Strain relief option no
Thread type PG
WAF 30
All types

All types

Types Nominal thread size Thread type Material Colour Item no. Quantity SSU
107 E PG11 PA 11 PG Polyamide Light grey; RAL 7035 2025531
100 piece
107 E PG13.5 PA 13.5 PG Polyamide Light grey; RAL 7035 2025566
100 piece
107 E PG21 PA 21 PG Polyamide Light grey; RAL 7035 2025604
50 piece
107 E PG36 PA 36 PG Polyamide Light grey; RAL 7035 2025647
25 piece
Downloads

Download

Download

EU declaration of conformity 107 E PG21 PA / 2025604 , 0.05MB , pdf
