Profile connector, horizontal 175 | 7
morepic-1 morepic-2 video-1

Profile connector, horizontal

Item no. 6288110 | EAN 4012195147220

Product description
Product description

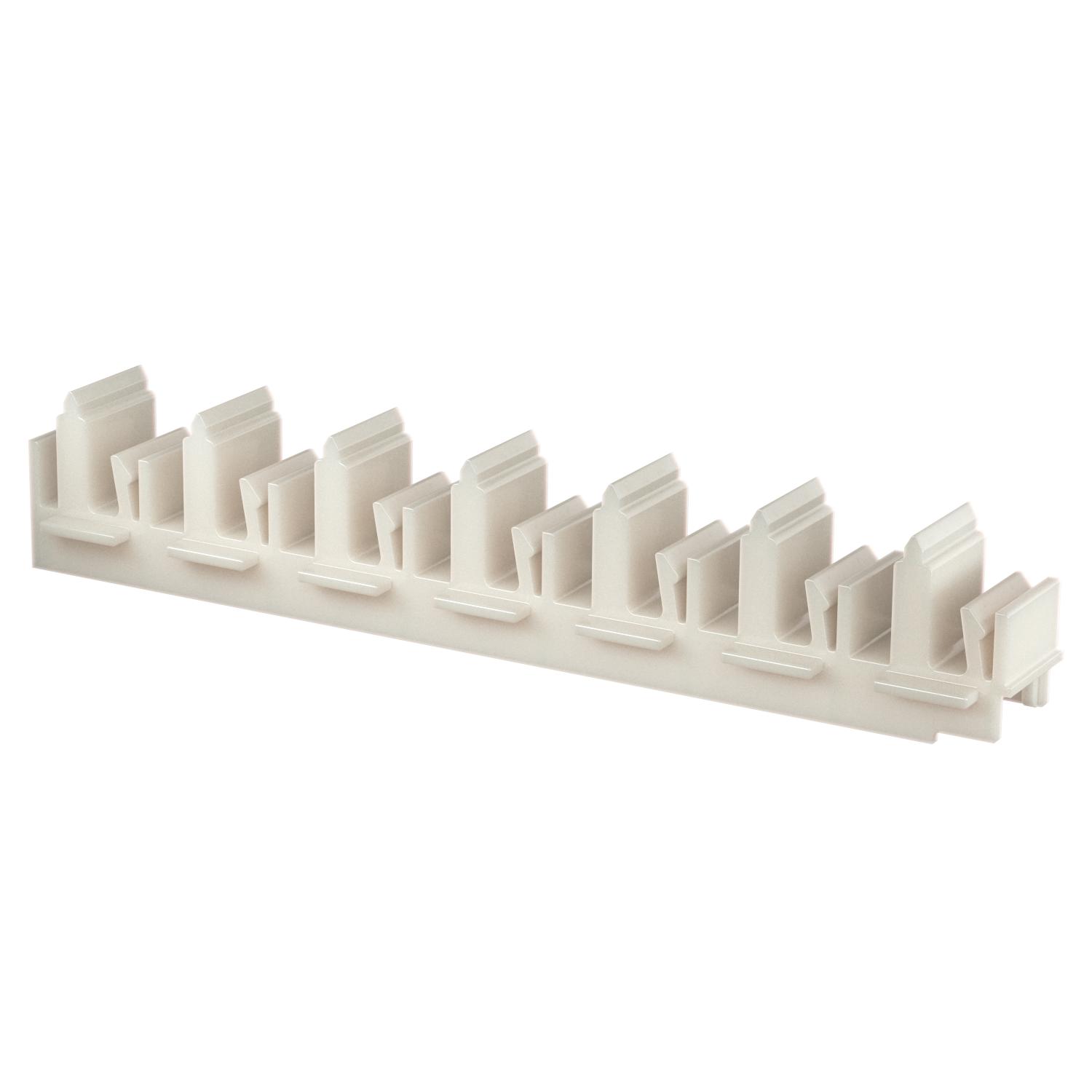

Horizontal profile connector with guide slits to lock convection grid profiles. The profile connector is mounted on the fastening panel using the clamp, type SP3.
The mesh slats are simply attached to the slat holder.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Natural

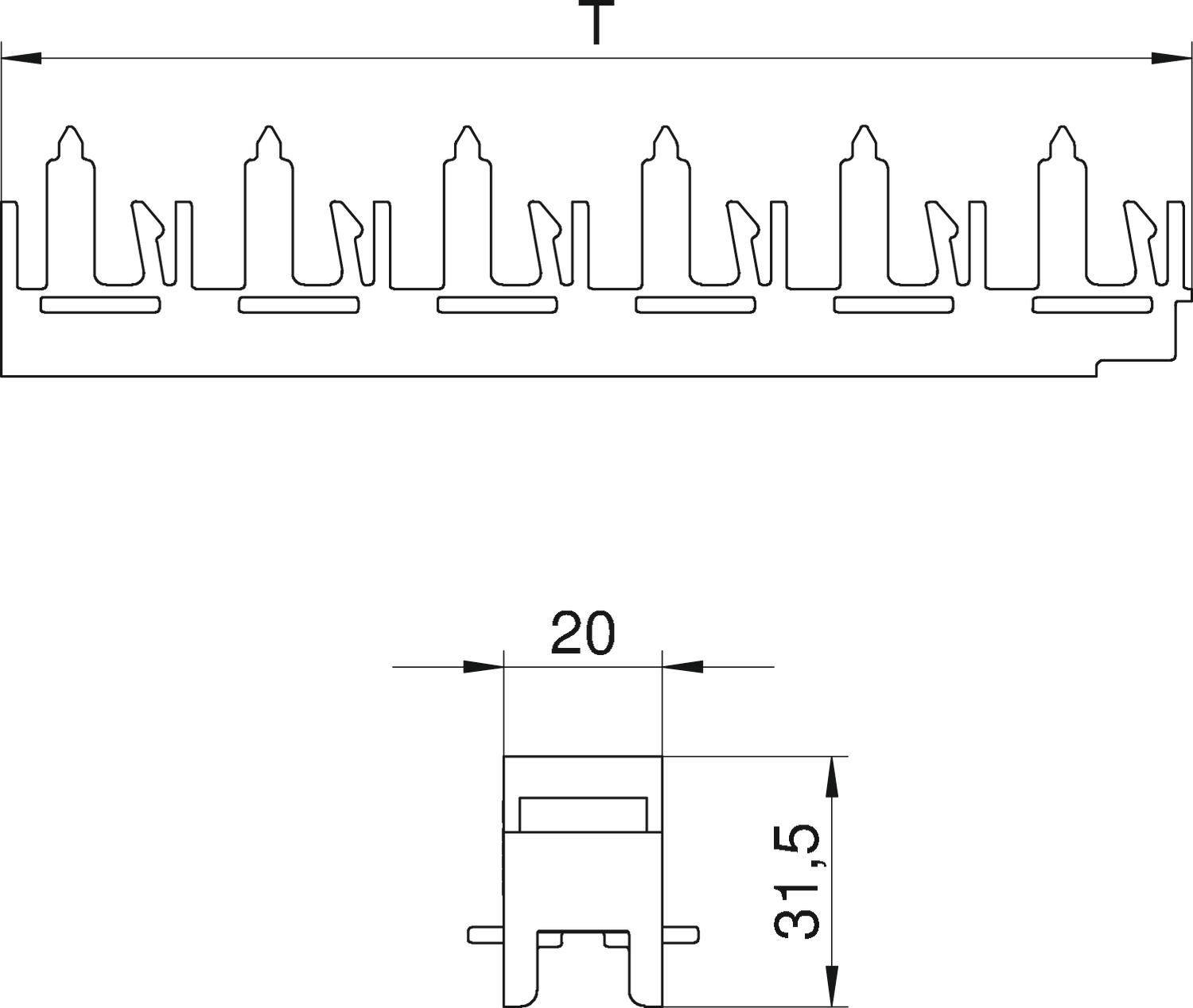

Dimension 20x32x175
Halogen-free yes
Height 31,5 mm
installation position Horizontal
Length 175 mm
Material Polypropylene
Number of profiles 7
Transparent no
Width 20 mm
All types

All types

Types Length Number of profiles Item no. Quantity SSU
PV N3 50H 50 mm 2 6288100
1 piece
PV N3 75H 75 mm 3 6288102
1 piece
PV N3 100H 100 mm 4 6288104
1 piece
PV N3 125H 125 mm 5 6288106
1 piece
PV N3 150H 150 mm 6 6288108
1 piece
PV N3 175H 175 mm 7 6288110
1 piece
PV N3 200H 200 mm 8 6288112
1 piece
PV N3 225H 225 mm 9 6288114
1 piece
PV N3 250H 250 mm 10 6288116
1 piece
PV N3 275H 275 mm 11 6288118
1 piece
PV N3 300H 300 mm 12 6288120
1 piece
