Profile connector, horizontal

Item no. 6288114 | EAN 4012195147244

Item no. / Types

Length

Number of profiles

Product description

Product description

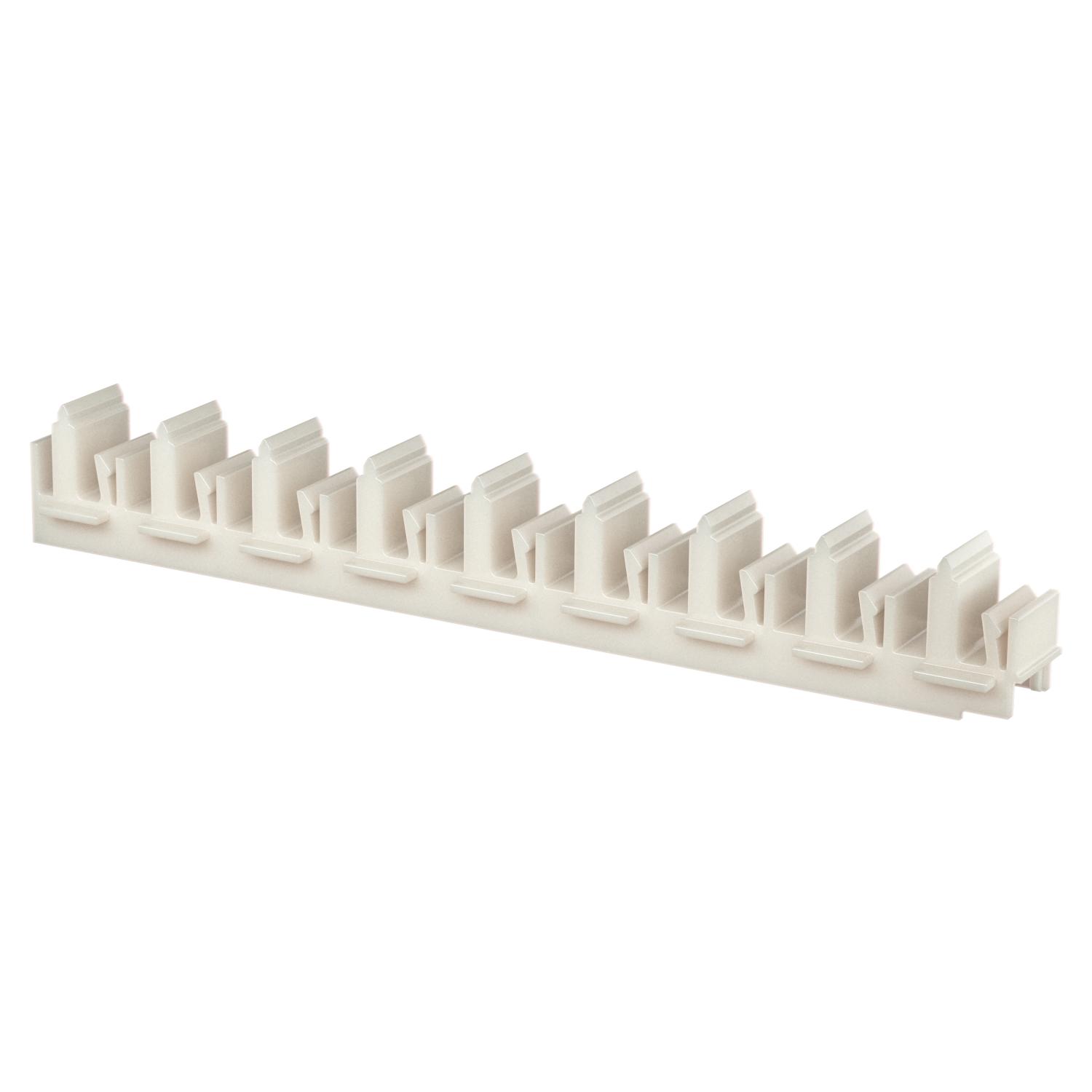

Horizontal profile connector with guide slits to lock convection grid profiles. The profile connector is mounted on the fastening panel using the clamp, type SP3.
The mesh slats are simply attached to the slat holder.

Technical data

Technical data

Colour	Natural

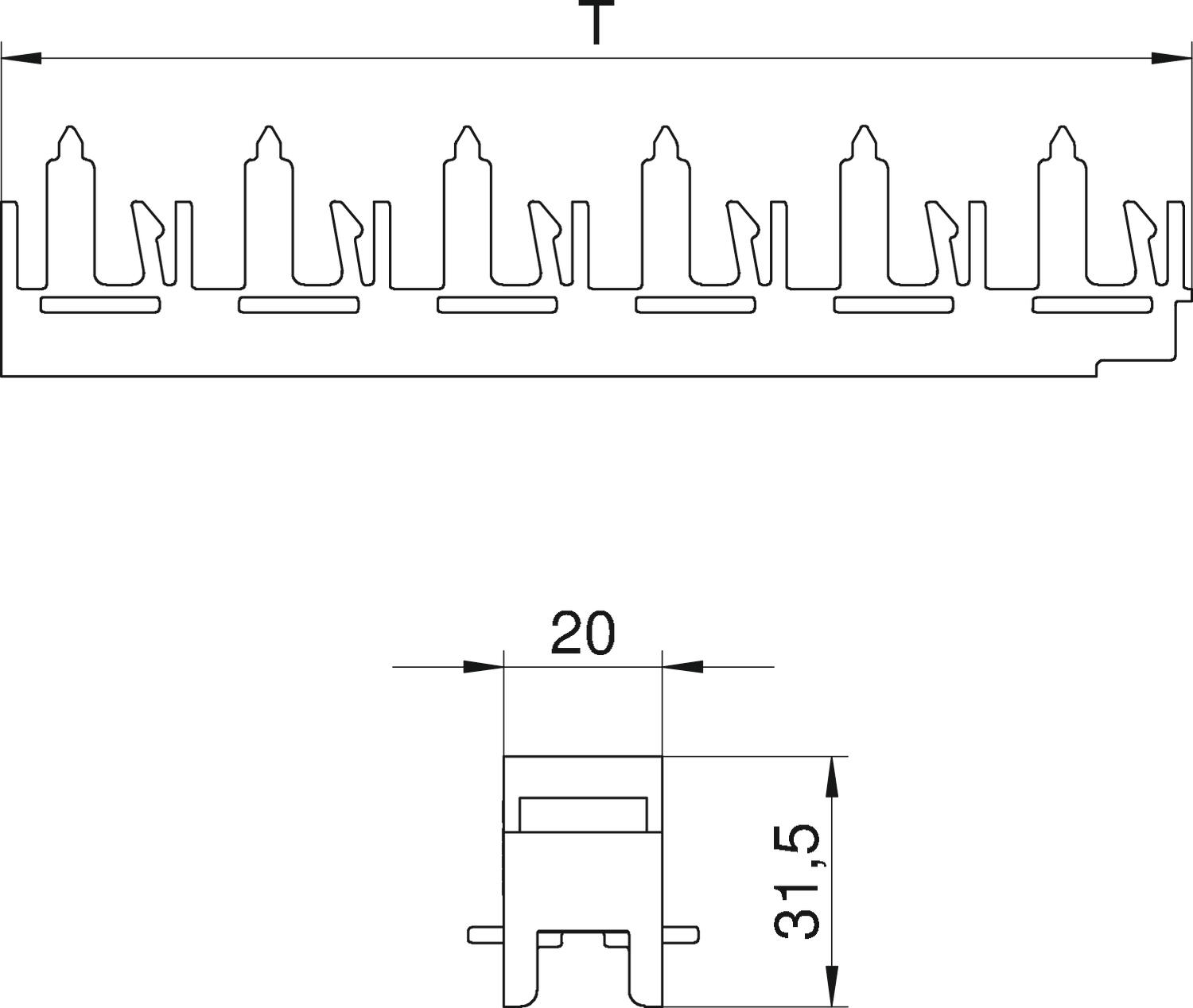

Dimension	20x32x225
Halogen-free	yes
Height	31,5 mm
installation position	Horizontal

Length	225 mm
Material	Polypropylene
Number of profiles	9
Transparent	no
Width	20 mm

All types

All types

Types	Length	Number of profiles	Item no.	Quantity	SSU
PV N3 50H	50 mm	2	6288100	piece	1 piece
PV N3 75H	75 mm	3	6288102	piece	1 piece
PV N3 100H	100 mm	4	6288104	piece	1 piece
PV N3 125H	125 mm	5	6288106	piece	1 piece
PV N3 150H	150 mm	6	6288108	piece	1 piece
PV N3 175H	175 mm	7	6288110	piece	1 piece
PV N3 200H	200 mm	8	6288112	piece	1 piece
PV N3 225H	225 mm	9	6288114	piece	1 piece
PV N3 250H	250 mm	10	6288116	piece	1 piece
PV N3 275H	275 mm	11	6288118	piece	1 piece
PV N3 300H	300 mm	12	6288120	piece	1 piece
