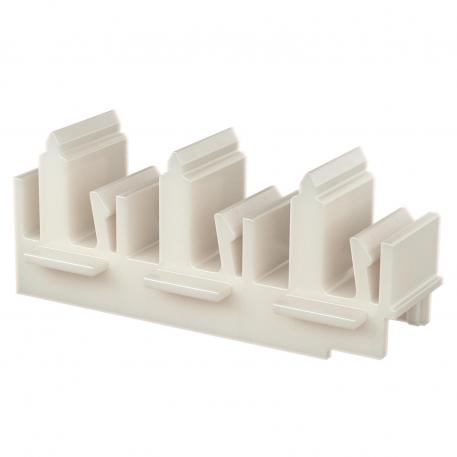

Profile connector, horizontal 75 | 3
morepic-1 morepic-2 video-1

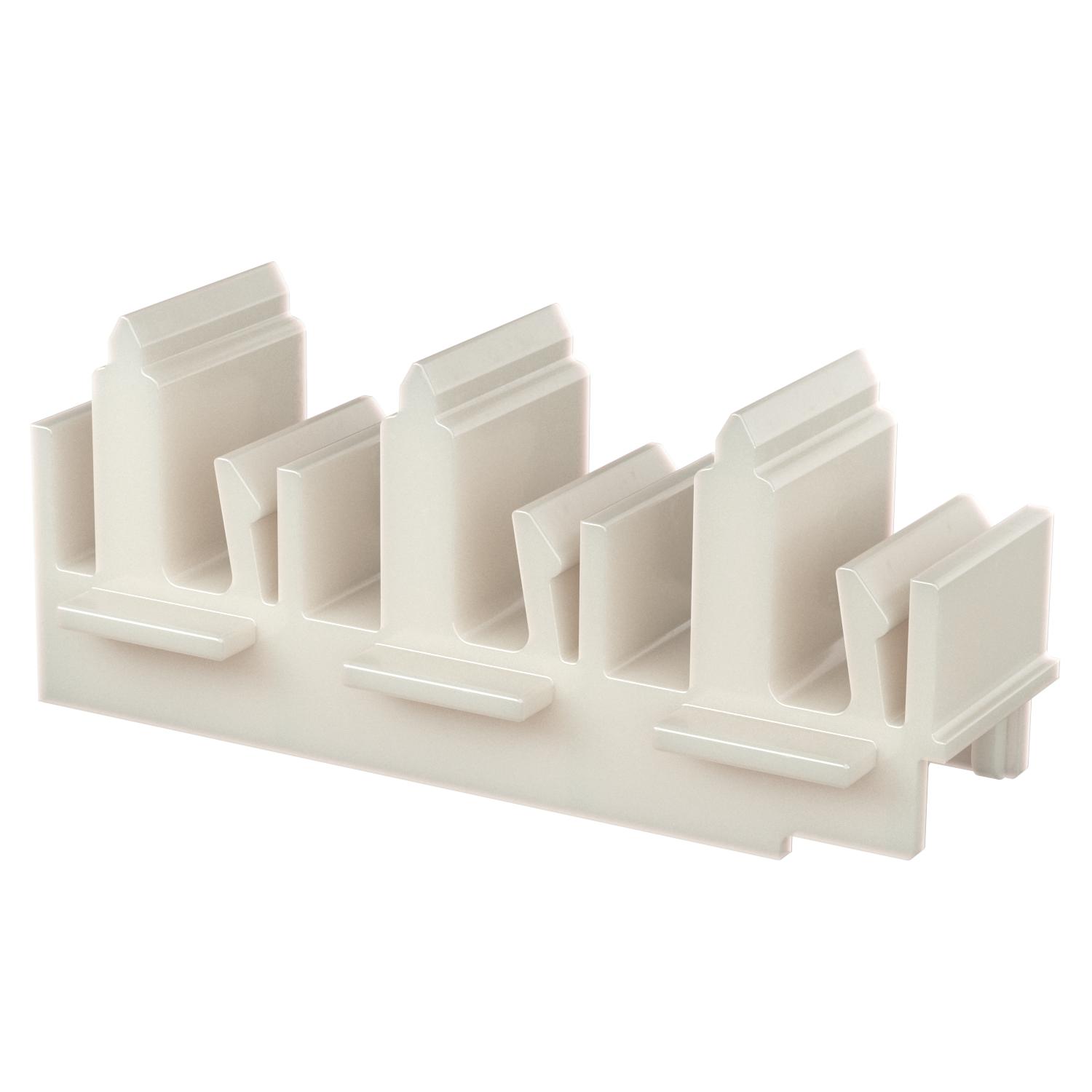

Profile connector, horizontal

Item no. 6288102 | EAN 4012195147169

Product description
Product description
Horizontal profile connector with guide slits to lock convection grid profiles. The profile connector is mounted on the fastening panel using the clamp, type SP3.
The mesh slats are simply attached to the slat holder.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

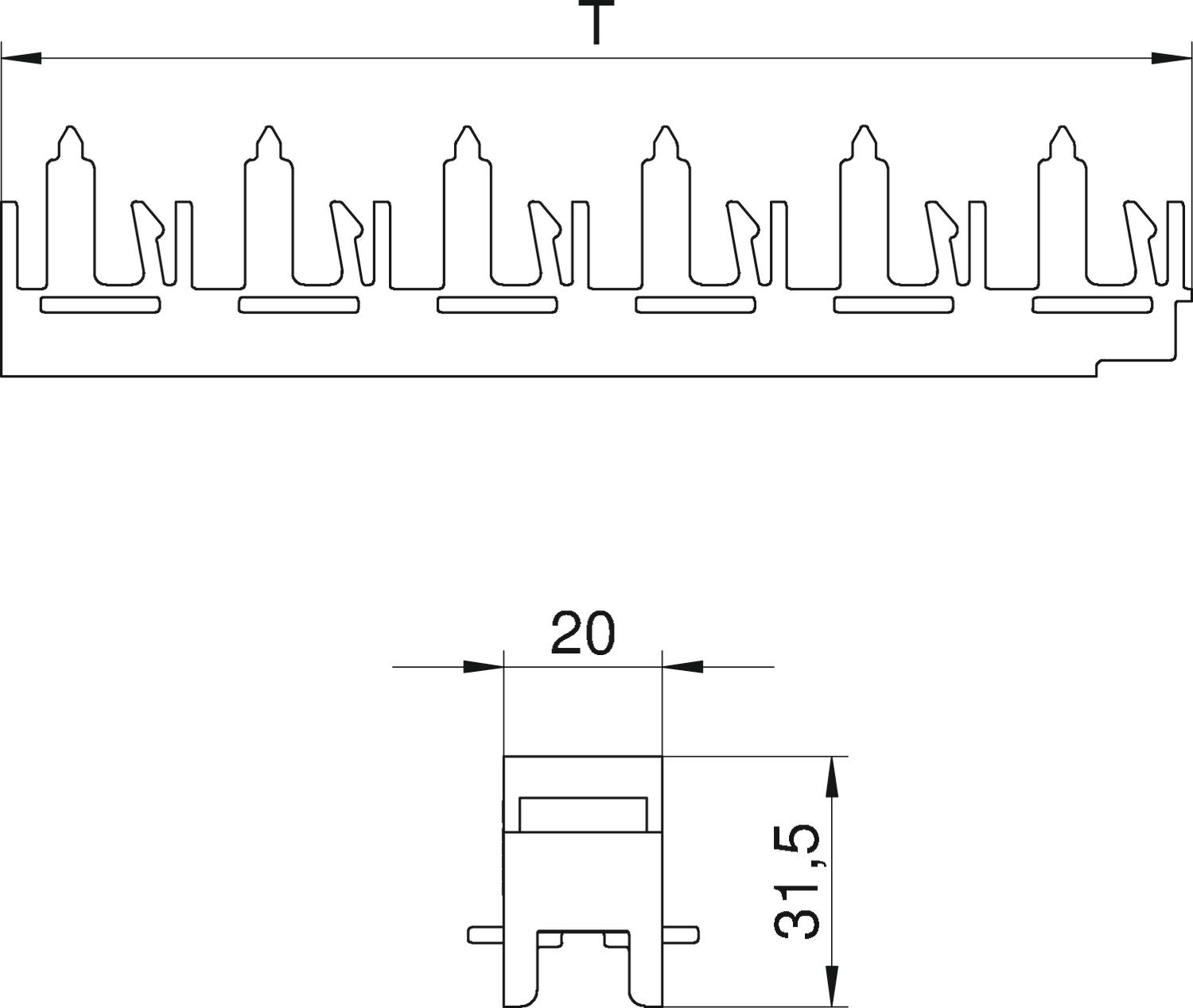

Technical data

Technical data

Colour Natural
Dimension 20x32x75
Halogen-free yes
Height 31,5 mm
installation position Horizontal
Length 75 mm
Material Polypropylene
Number of profiles 3
Transparent no
Width 20 mm
All types

All types

Types Length Number of profiles Item no. Quantity SSU
PV N3 50H 50 mm 2 6288100
1 piece
PV N3 75H 75 mm 3 6288102
1 piece
PV N3 100H 100 mm 4 6288104
1 piece
PV N3 125H 125 mm 5 6288106
1 piece
PV N3 150H 150 mm 6 6288108
1 piece
PV N3 175H 175 mm 7 6288110
1 piece
PV N3 200H 200 mm 8 6288112
1 piece
PV N3 225H 225 mm 9 6288114
1 piece
PV N3 250H 250 mm 10 6288116
1 piece
PV N3 275H 275 mm 11 6288118
1 piece
PV N3 300H 300 mm 12 6288120
1 piece
Downloads

Download

Download

EU declaration of conformity PV N3 75H / 6288102 , 0.13MB , pdf
Download
UK Declaration of Conformity PV N3 75H / 6288102 , 0.14MB , pdf
Download
REACH Declaration of conformity PV N3 75H / 6288102 , 0.27MB , pdf
Download
RoHS Declaration of conformity PV N3 75H / 6288102 , 0.28MB , pdf
Download

No invitation to tender text is available for this product.
