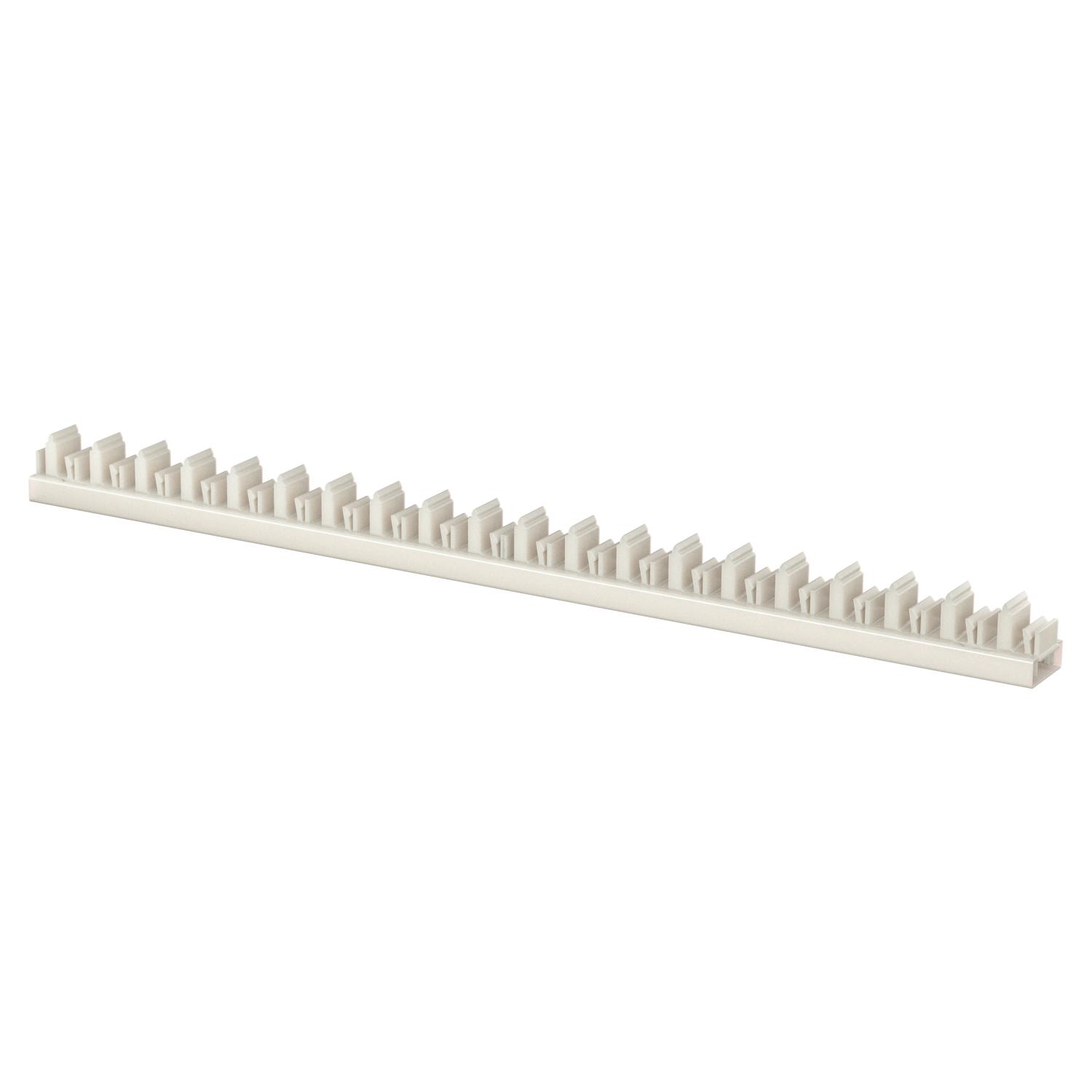

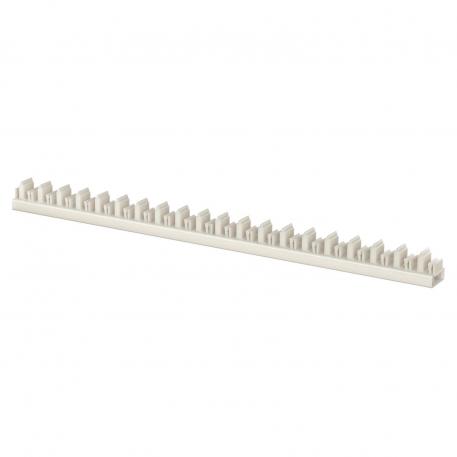

Profile connector, vertical

Item no. 6288084 | EAN 4012195297253

Item no. / Types

Length

Number of profiles

Product description

Product description

Vertical profile connector with guide slits to lock convection grid profiles for the creation of a compact grid unit. The vertical convection grids can run some way down the front side of the trunking, although a gap should be left near the floor for cleaning, or should be run to the floor and fastened with the BVL floor panel. This version represents a variant of the convector panelling. Alternatively to the convection grid profiles, heating convector panelling can also be created with closed sheet steel panelling.
The mesh slats are simply attached to the slat holder.

Technical data

Technical data

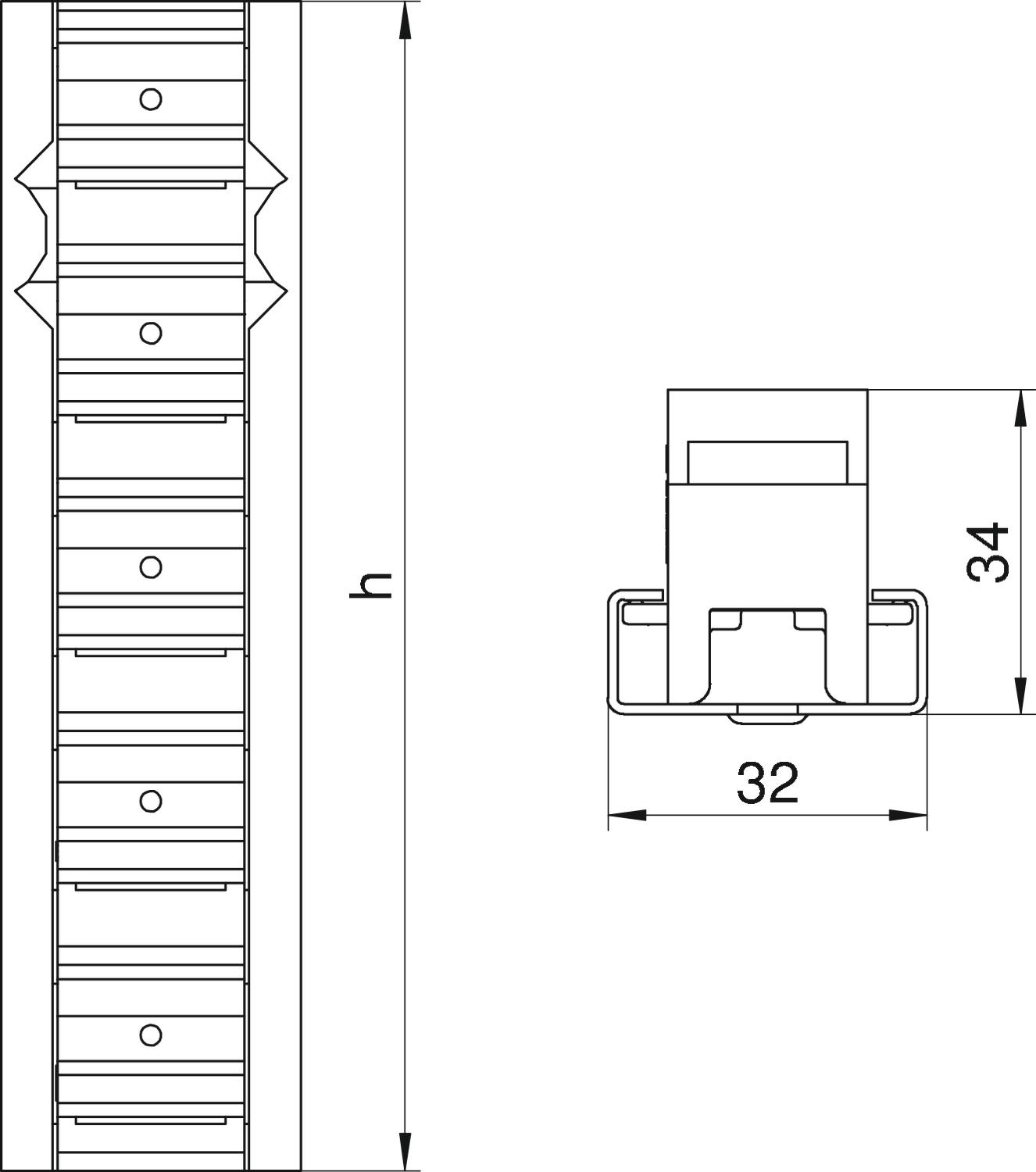

Dimension	32x34x500
Dimension h	500 mm
Halogen-free	yes
Height	34 mm
installation position	Vertical

Length	500 mm
Material	Polypropylene
Number of profiles	20
Width	32 mm

All types

All types

Types	Length	Number of profiles	Item no.	Quantity	SSU
PVV N2 150	150 mm	6	6288034	piece	10 piece
PVV N2 475	475 mm	19	6288044	piece	1 piece
PVV N2 600	600 mm	24	6288050	piece	1 piece
PVV N2 625	625 mm	25	6288052	piece	1 piece
PVV N2 700	700 mm	28	6288058	piece	1 piece
PVV N2 875	875 mm	35	6288066	piece	1 piece
PVV N2 500	500 mm	20	6288084	piece	1 piece
PVV N2 800	800 mm	32	6288090	piece	1 piece
