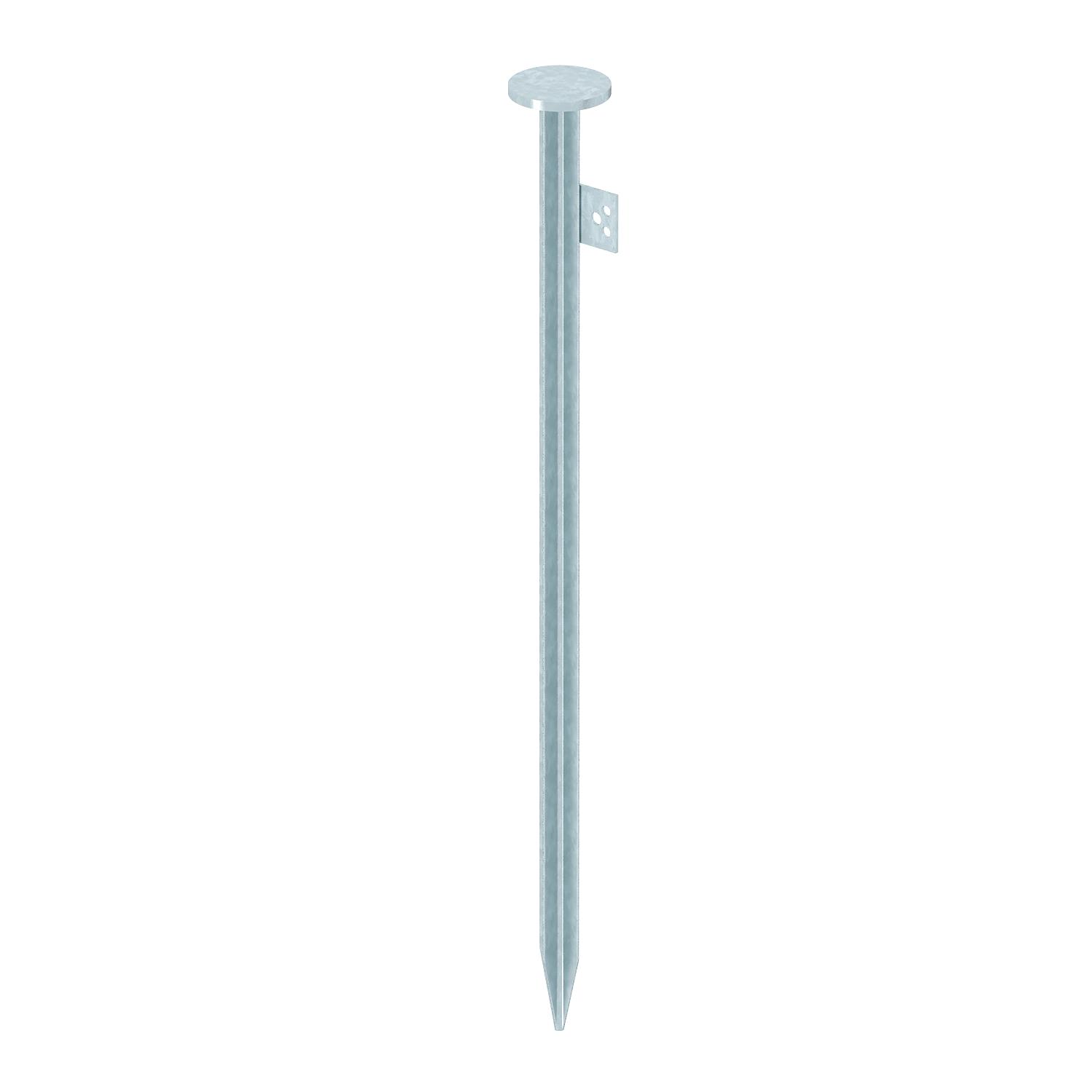

Profile earth rod with connection strap/hand protection

Item no. 5003081 | EAN 4012196527069

5003081 / 213 1000 DIN HS
1000 mm
Product description
Product description

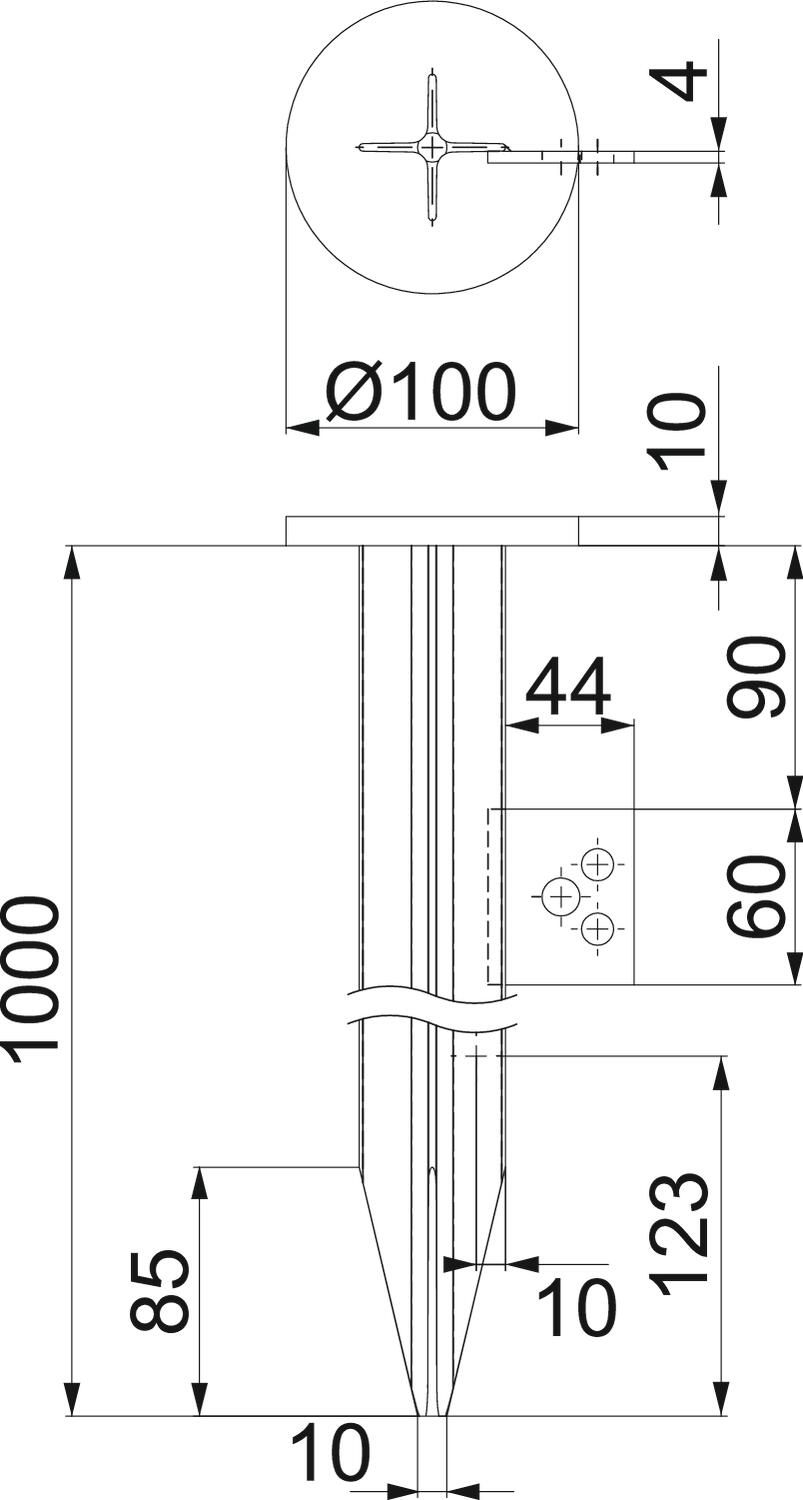

• Cross-profile 50 x 50 x 3 mm

• Hand protection Ø 100 mm

• With connecting strap

• 1 gland hole Ø 13 mm

• 2 gland holes Ø 11 mm

• Round conductor fastening, e.g. with type 5001 DIN-FT possible

• For the construction of earthing systems, e.g. antennas or earthing of

building site distribution boards
Technical data

Technical data

Dimension 1000mm
Length 1000 mm
Material Steel
Profile type Cross
Surface Hot-dip galvanised
All types

All types

Types Length Item no. Quantity SSU
213 1000 DIN HS 1000 mm 5003081
5 piece
