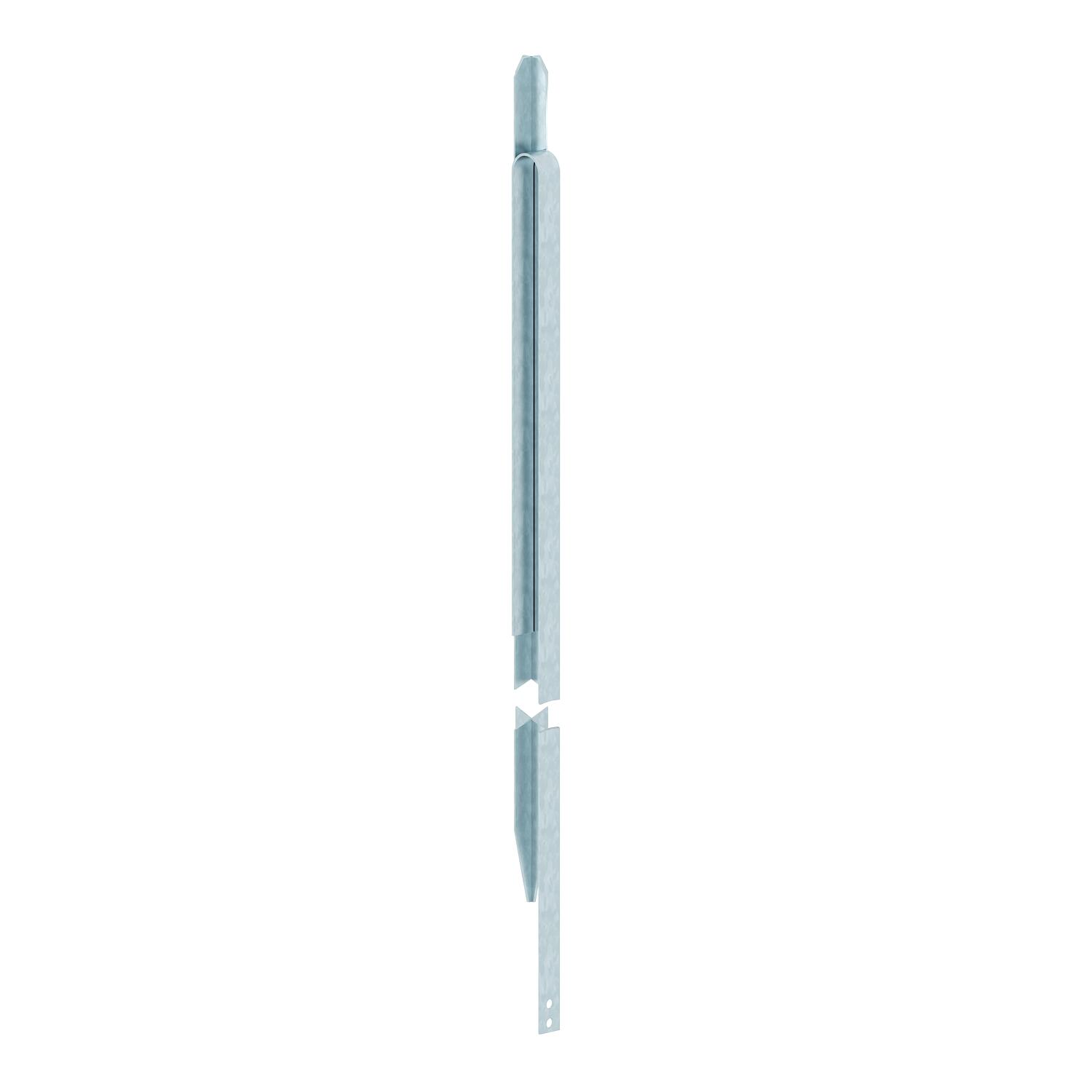

Profile earthing rod connection with strip steel lug

Item no. 5003261 | EAN 4012195374053

Product description

Product description

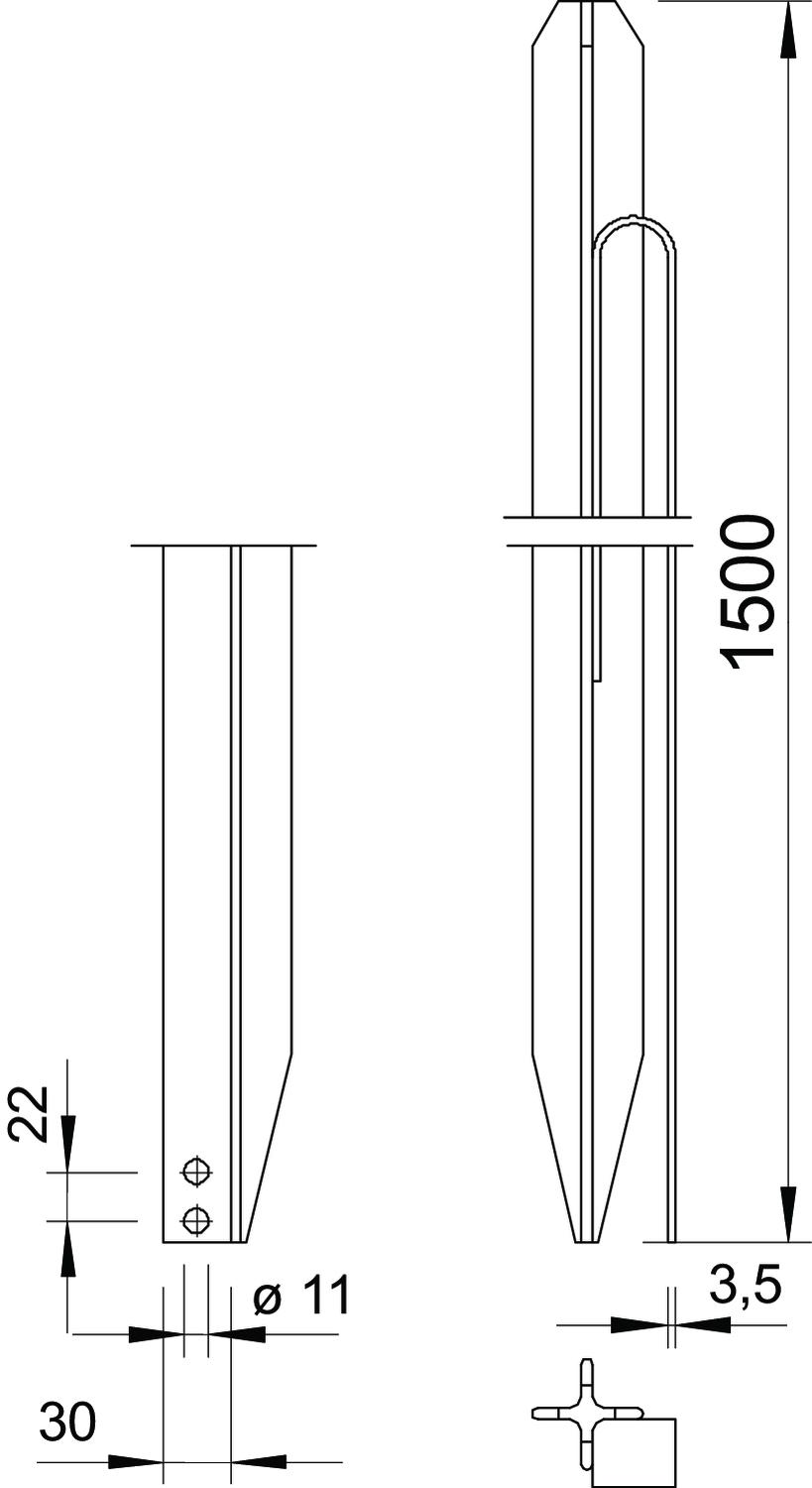

• With 2 m strip steel section FL 30 x 3.5

• With 2 through holes Ø 11 mm

• For the construction of earthing systems, e.g. antenna or earthing of

building site distribution boards


Technical data

Technical data

Dimension 1500mm
Dimension L 1500 mm
Length 1500 mm
Material Steel
Profile type Cross
Surface Hot-dip galvanised
All types

All types

Types Length Item no. Quantity SSU
213 1500 M 1500 mm 5003261
3 piece
213 2000 M 2000 mm 5003288
3 piece
213 2500 M 2500 mm 5003296
3 piece
213 3000 M 3000 mm 5003318
3 piece
