Profile earthing rod connection with strip steel lug
Item no. 5003288 | EAN 4012195374114
- Product description
-

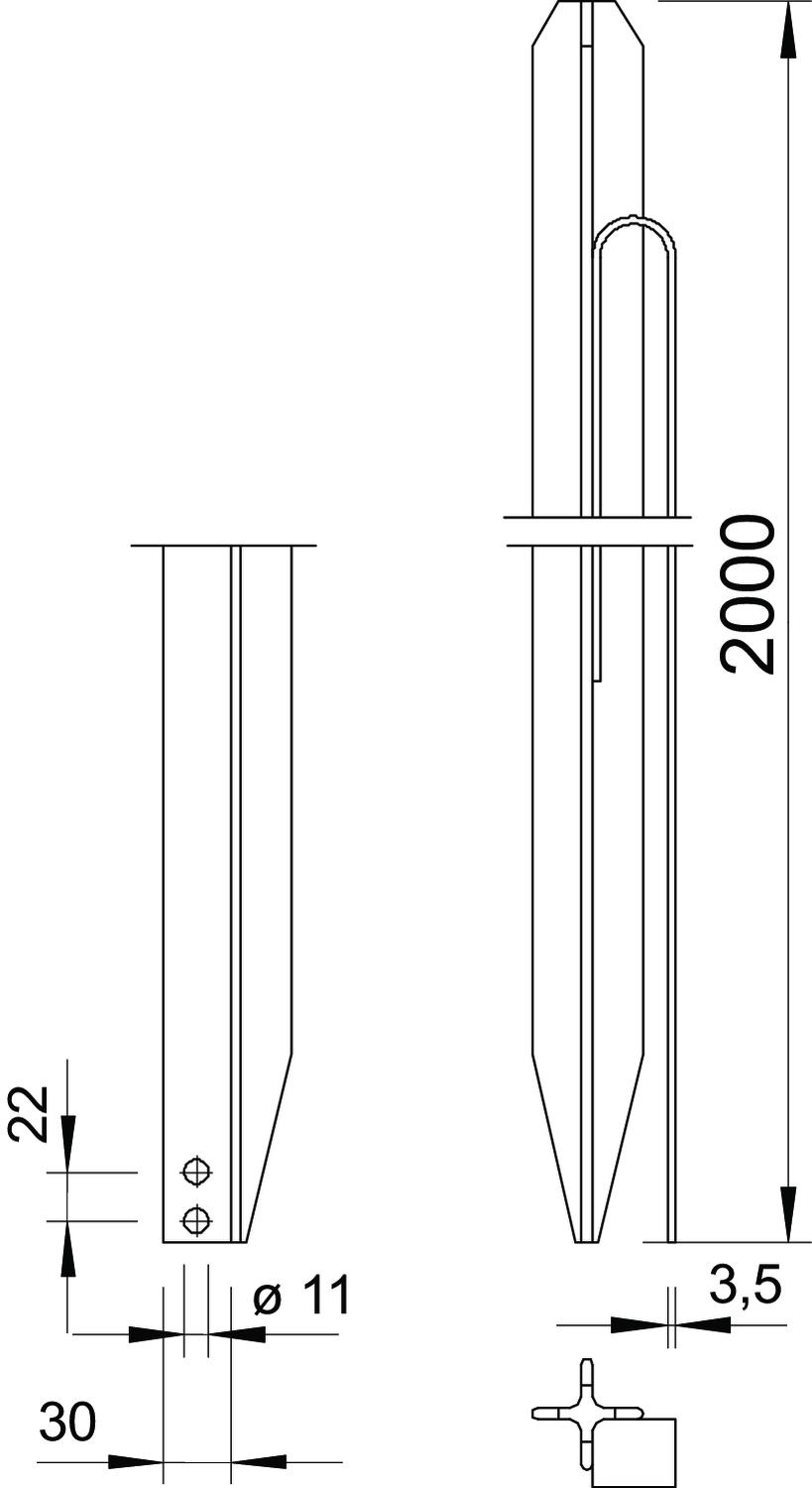

Product description• With 2 m strip steel section FL 30 x 3.5
• With 2 through holes Ø 11 mm
• For the construction of earthing systems, e.g. antenna or earthing of
building site distribution boards
- Technical data
-
Technical data
Dimension 2000mm Dimension L 2000 mm Length 2000 mm Material Steel Profile type Cross Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet 213 2000 M / 5003288 , 0.14MB , pdfEU declaration of conformity 213 2000 M / 5003288 , 0.06MB , pdf
