Profile for screed limitation

Item no. 7403895 | EAN 4012195862123

Product description

Product description

Extension profile for screed limitation in areas of door frames and in front of radiator niches.

Technical data

Technical data

Cover fastening, locking	no
Decouplable	yes
Dimension	1000x87x25
Floor care	Dry
Floor plate	yes
Height	87 mm
Length	1000 mm
Material	Steel
Minimum screed height	85
Mounting opening cover	no
Removable cover	yes

Seal installation option	no
Suitable for expansion joint	no
Suitable for flushfloor, open underfloor trunking	yes
Suitable for screed-covered underfloor ducts	no
Suitable for screed-flush closed underfloor ducts	no
Surface	Strip galvanized
Width	25 mm
With connection opening	no
With equipotential bonding	no
With overhang	yes

All types

All types

Types	Height-adjustment range, min.	Item no.	Quantity	SSU
OKB EP 1000		7403895	piece	1 piece

Downloads

Data sheet OKB EP 1000 / 7403895 , 0.15MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Flyer Flyer OKB brush bar trunking system , 0.20MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Mounting instructions Mounting instructions OKB-U and OKB-E , 1.30MB , pdf

Download

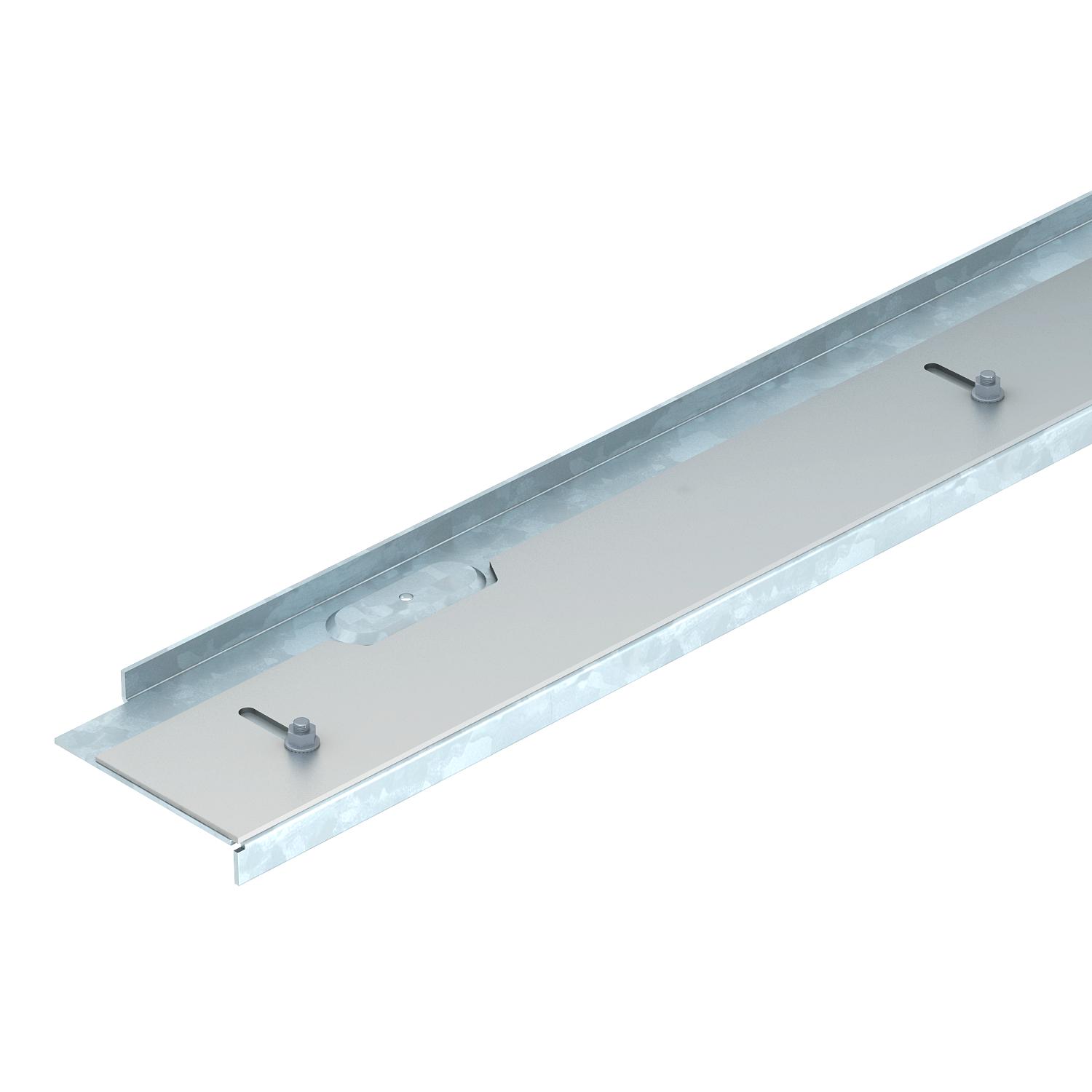

Product graphic OKB EP 1000 / 7403895, 56.69 kB, jpg

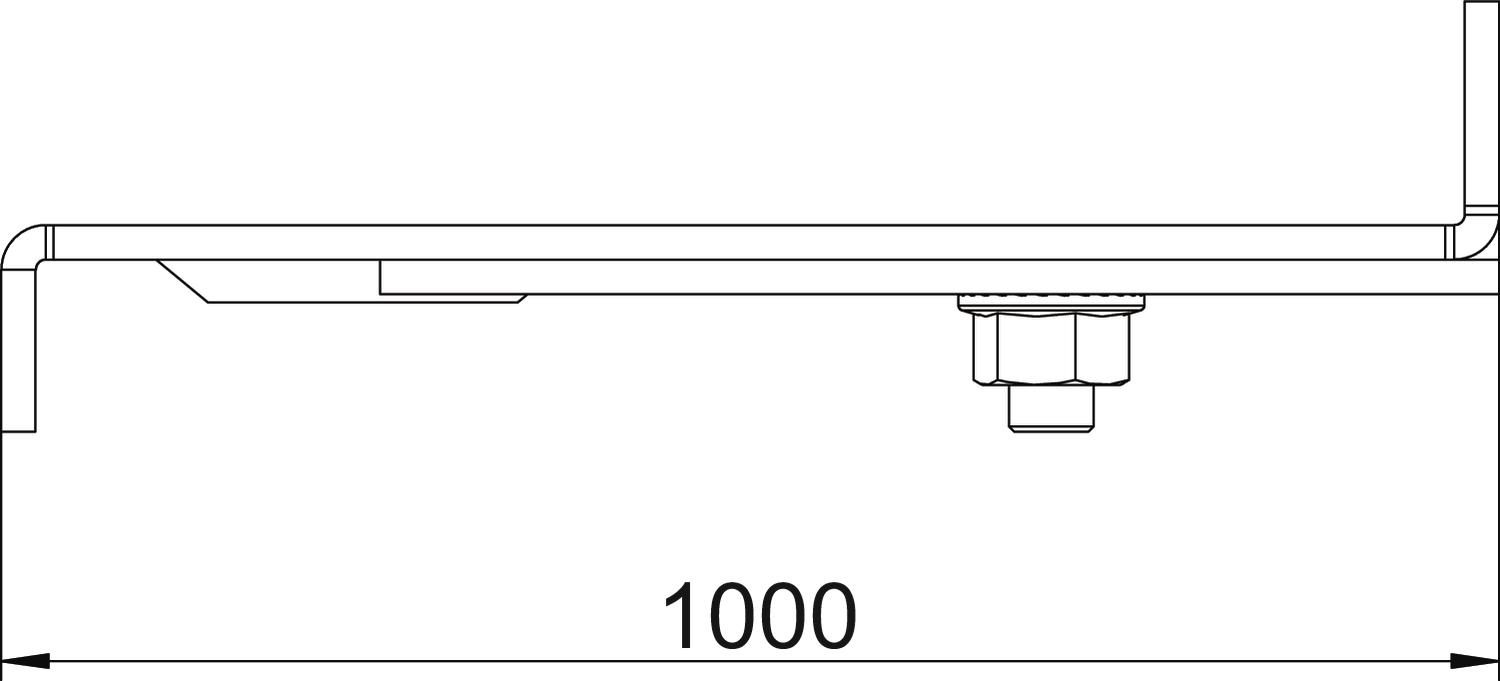

Scale drawing OKB EP 1000 / 7403895, 29.91 kB, jpg

No invitation to tender text is available for this product.
