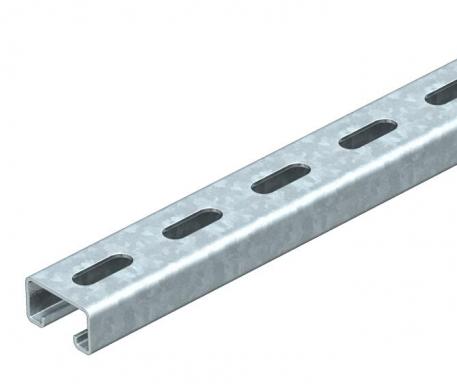

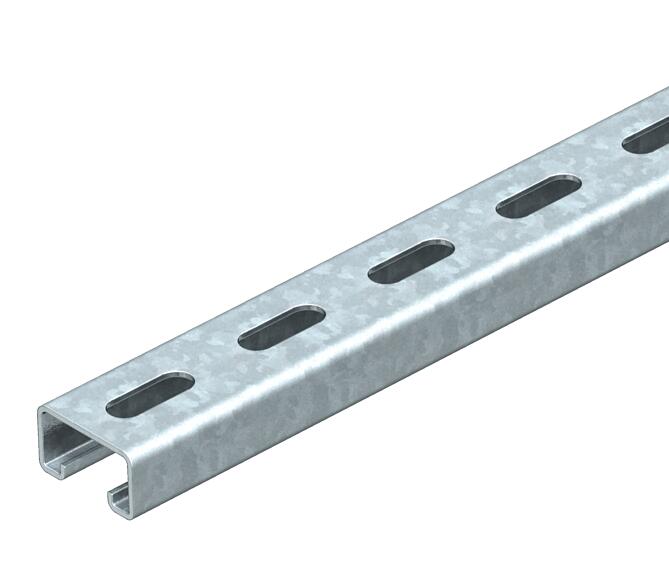

Profile rail MS 22 L FT

Item no. 1122703 | EAN 4012195499756

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no

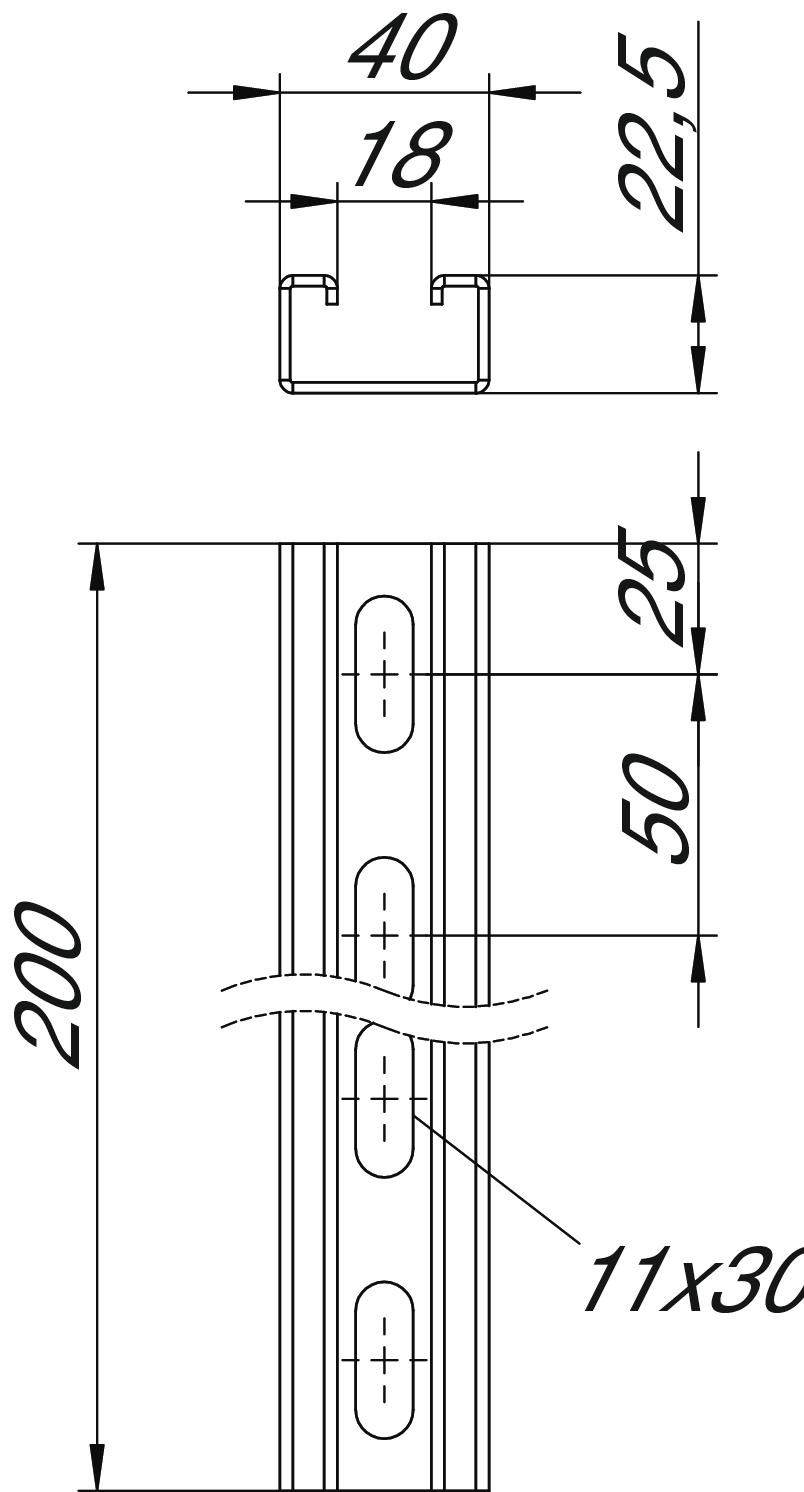

Dimension	200x40x22,5
Drill hole spacing, centre	50 mm
Hole size	11x30 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	18 mm
Static value A	1,74 cm²

Static value ly	1,19 cm
Static value lz	4,46 cm
Static value Wy	1,05 cm²
Static value Wz	2,23 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
With perforation	yes
With toothing	no

Dimensions

Dimension L	200 mm
Height	22,5 mm

Length	200 mm
Width	40 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS 22 L 200 FT	200 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122703	piece	1 piece
MS 22 L 300 FT	300 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122707	piece	1 piece
MS 22 L 400 FT	400 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122711	piece	1 piece
MS 22 L 500 FT	500 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122715	piece	1 piece
MS 22 L 600 FT	600 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122719	piece	1 piece
MS 22 L 700 FT	700 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122723	piece	1 piece
MS 22 L 800 FT	800 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122727	piece	1 piece
MS 22 L 1MFT	1000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122735	m	1 m
MS 22 L 3M FT	3000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122742	m	3 m
MS 22 L 6M FT	6000 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	1122746	m	6 m
