- Product description
-
Product description

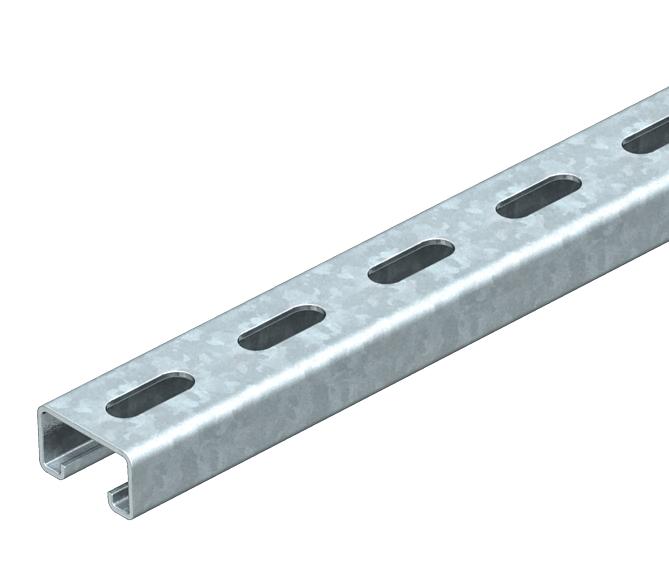

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
- Technical data
-
Technical data

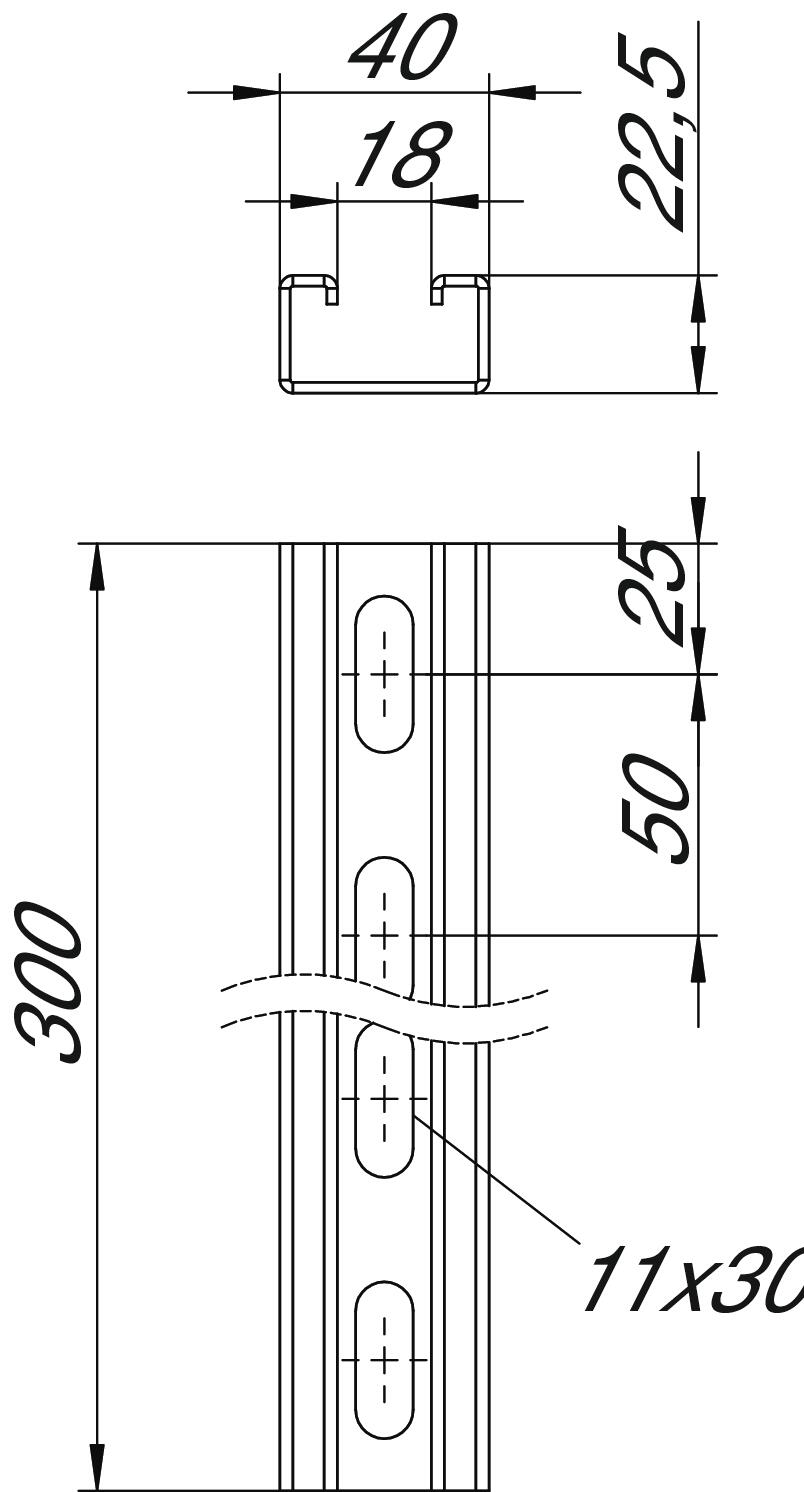

Breakable no Dimension 300x40x22,5 Drill hole spacing, centre 50 mm Hole size 11x30 mm Maintain electrical functions no Material Steel Material thickness 2 mm Profile shape C profile Slot width 18 mm Static value A 1,74 cm² Static value ly 1,19 cm Static value lz 4,46 cm Static value Wy 1,05 cm² Static value Wz 2,23 cm² Surface Hot-dip galvanised Type of perforation Perforated back Version for Single profile With perforation yes With toothing no Dimensions
Dimension L 300 mm Height 22,5 mm Length 300 mm Width 40 mm - All types
-
All types
- Downloads
-
Data sheet MS 22 L 300 FT / 1122707 , 0.22MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity MS 22 L 300 FT / 1122707 , 0.05MB , pdfREACH Declaration of conformity MS 22 L 300 FT / 1122707 , 0.12MB , pdfRoHS Declaration of conformity MS 22 L 300 FT / 1122707 , 0.12MB , pdf
