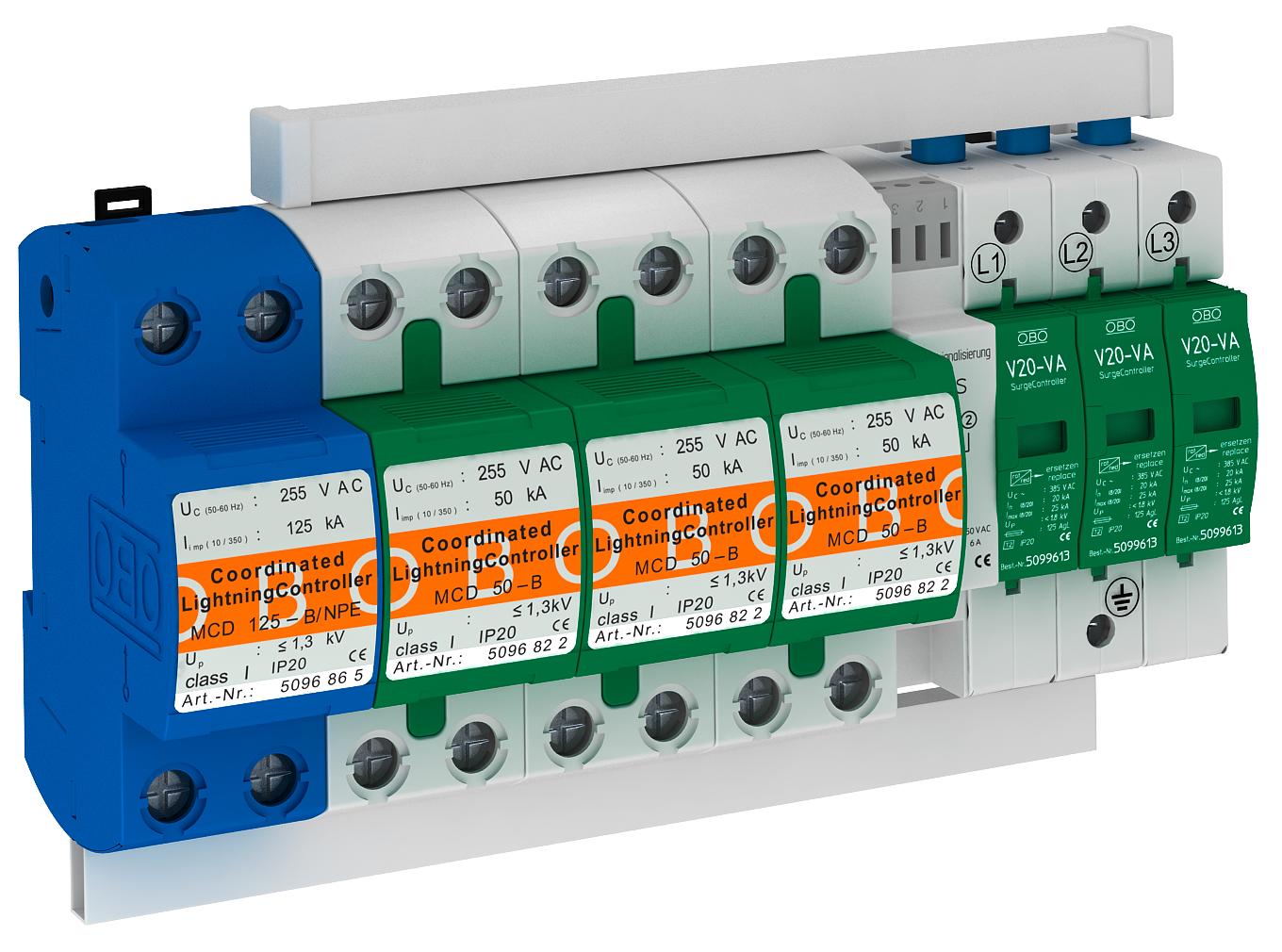

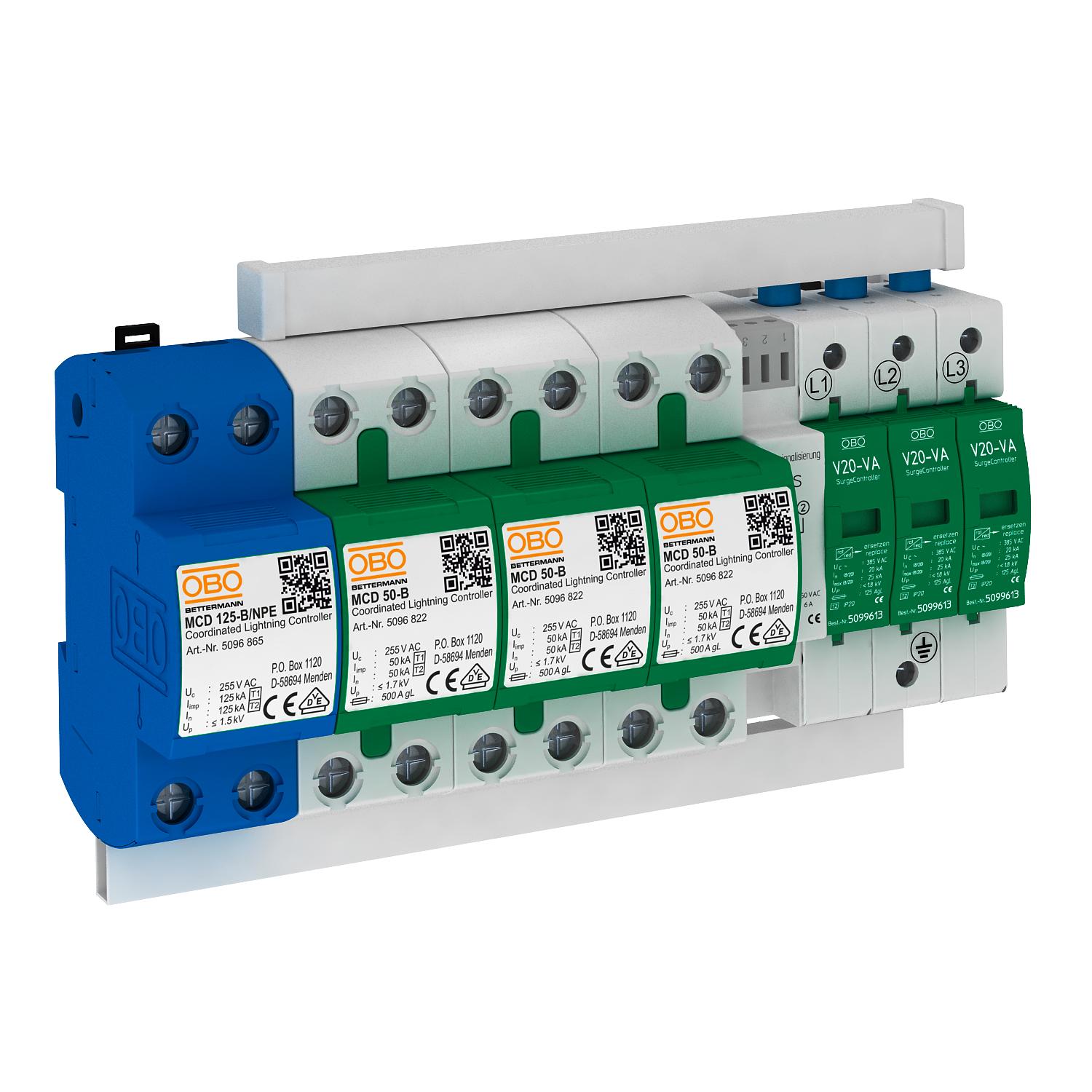

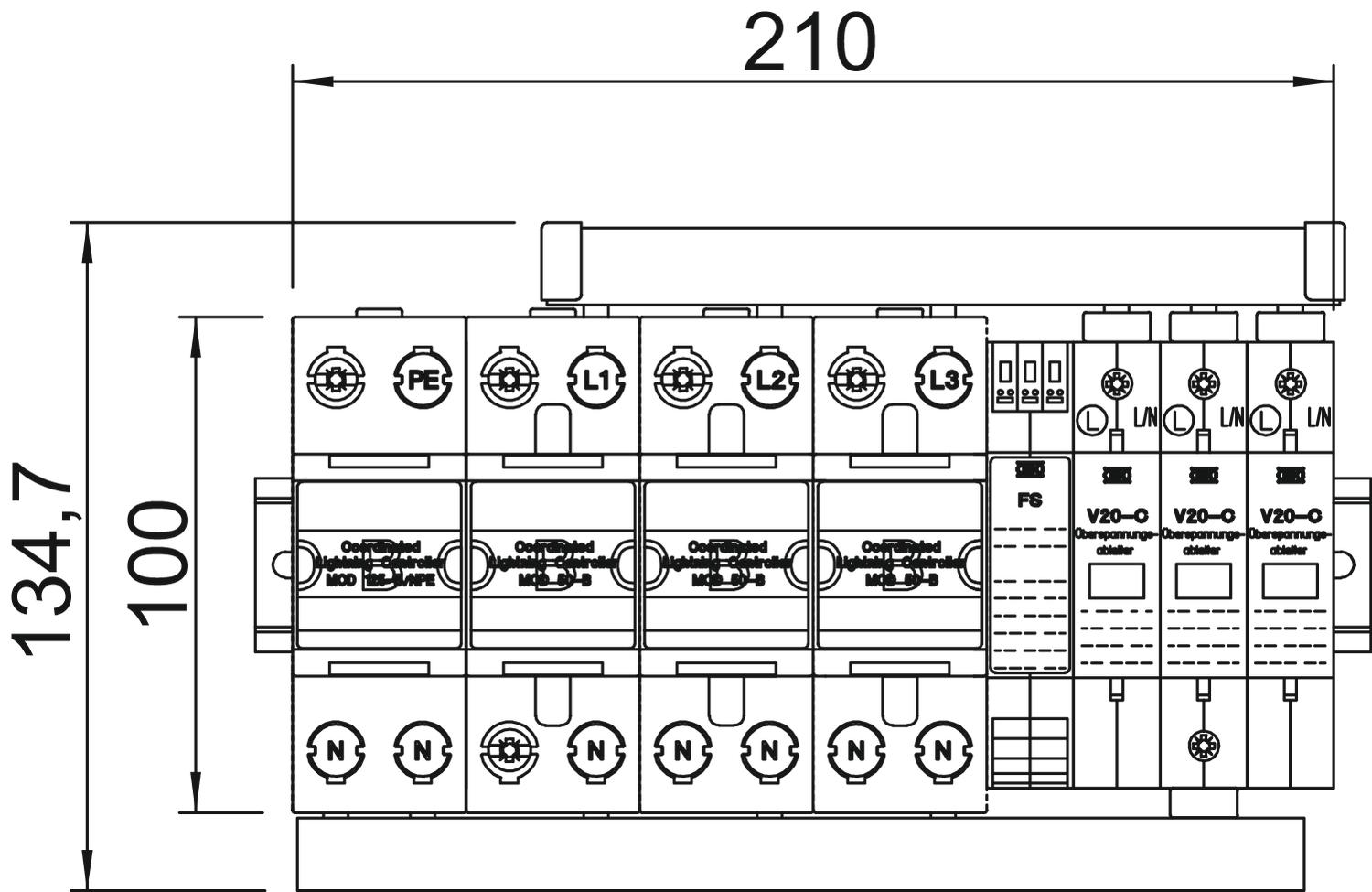

Protection set MCD + V20, leakage current-free, 3-pole + NPE with remote signalling
Item no. 5089777 | EAN 4012195405597
- Product description
-
Product description
Protection set VA, lightning and surge arrester combination, type 1+2
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity to 50 kA (10/350) per pole and up to 125 kA (10/350) N-PE
• Leakage current-free
• Plug-in arrester, incl. connecting bridges, labelled connection terminals
• Encapsulated, non-extinguishing arrester for use in distributor housings
Application: Industrial systems with special requirements.
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 100 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Dimension 255V Follow current quenching capacity (eff) [N-PE] 25 kA Installation type DIN rail 35 mm Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 100 kA Lightning surge current (10/350) 100 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 255 Maximum discharge current (8/20 μs) 100 kA Network form Other Nominal discharge current (8/20 µs) 100 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 85 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection rating IP20 Remote signalling yes Response time <25 ns Short-circuit resistance 25 kA Short-circuit resistance for max. mains-side overcurrent protection 25 kA Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Version for 3+NPE with FS - All types
- Downloads
-
Data sheet PS4-VA TT+FS / 5089777 , 0.26MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfREACH Declaration of conformity PS4-VA TT+FS / 5089777 , 0.12MB , pdfRoHS Declaration of conformity PS4-VA TT+FS / 5089777 , 0.13MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfNo invitation to tender text is available for this product.
