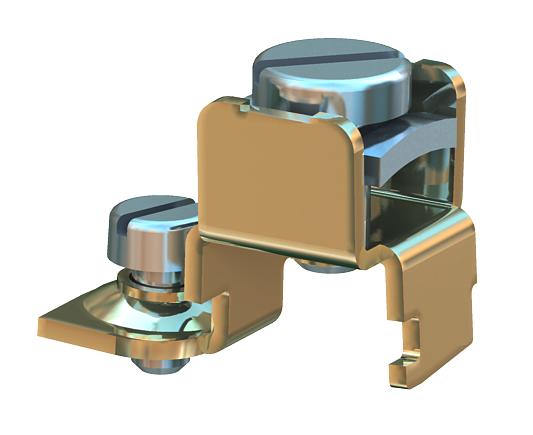

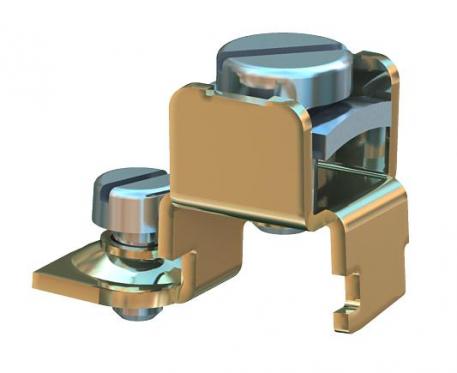

Protective conductor connection bracket

Item no. 6288704 | EAN 4012195149101

Product description
Product description
Protective conductor connection bracket to include steel and aluminium device installation trunking, service poles and system components of underfloor duct systems in the protective measure.

Clamping area: 2 x 1.5−4 mm²
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

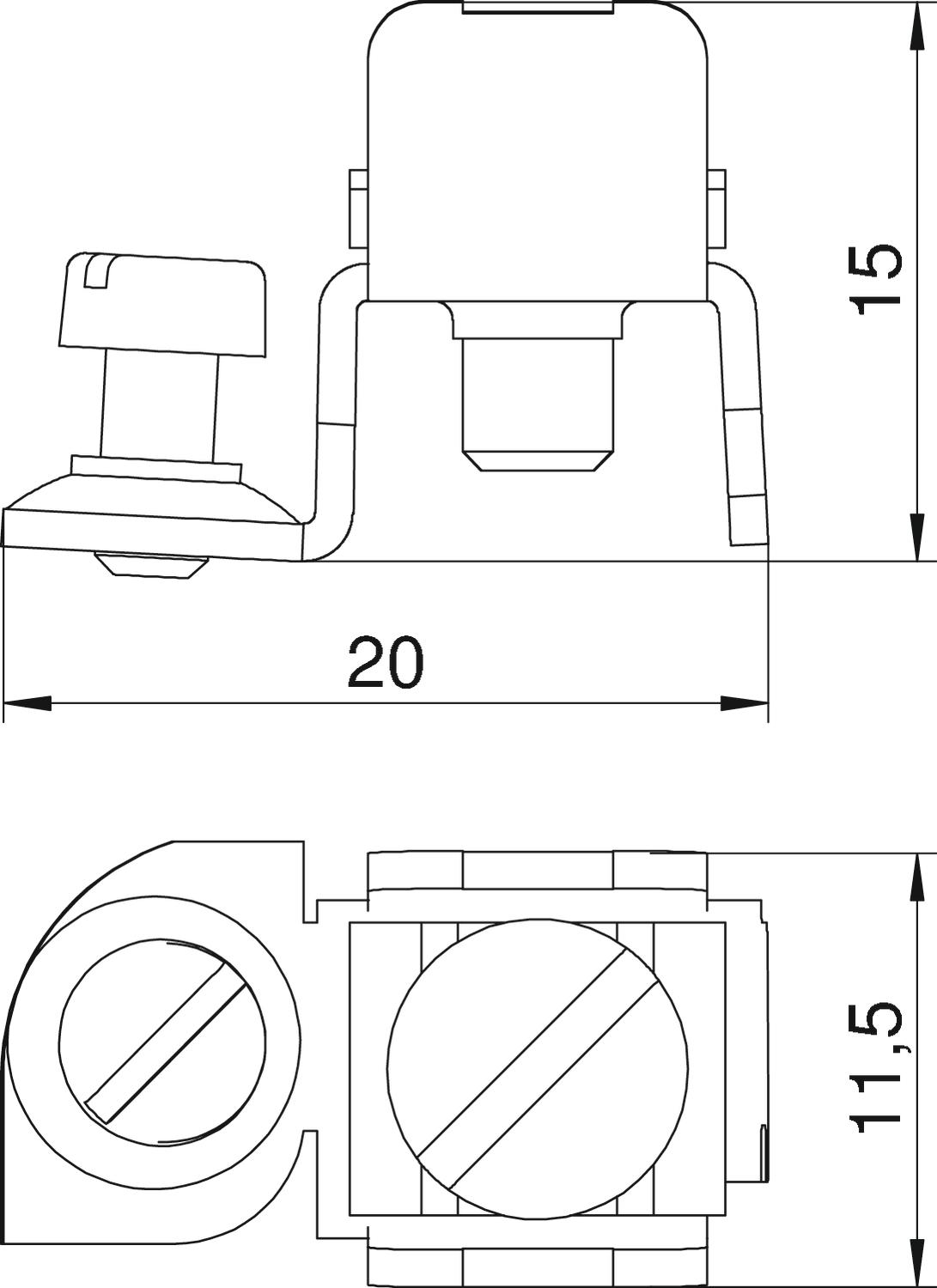

Dimension 20x12x15
Height 15 mm
Length 20 mm
Material Steel
Surface Electrogalvanized
Width 12 mm
All types

All types

Types Item no. Quantity SSU
8AWR 6288704
10 piece
Downloads

Download

EU declaration of conformity 8AWR / 6288704 , 0.13MB , pdf
Download
UK Declaration of Conformity 8AWR / 6288704 , 0.14MB , pdf
REACH Declaration of conformity 8AWR / 6288704 , 0.12MB , pdf
RoHS Declaration of conformity 8AWR / 6288704 , 0.12MB , pdf

8AWR / 6288704
Download
