Protective conductor terminal

Item no. 7205714 | EAN 4012197272517

7205714 / TPE 35
35 mm²
Product description

Product description

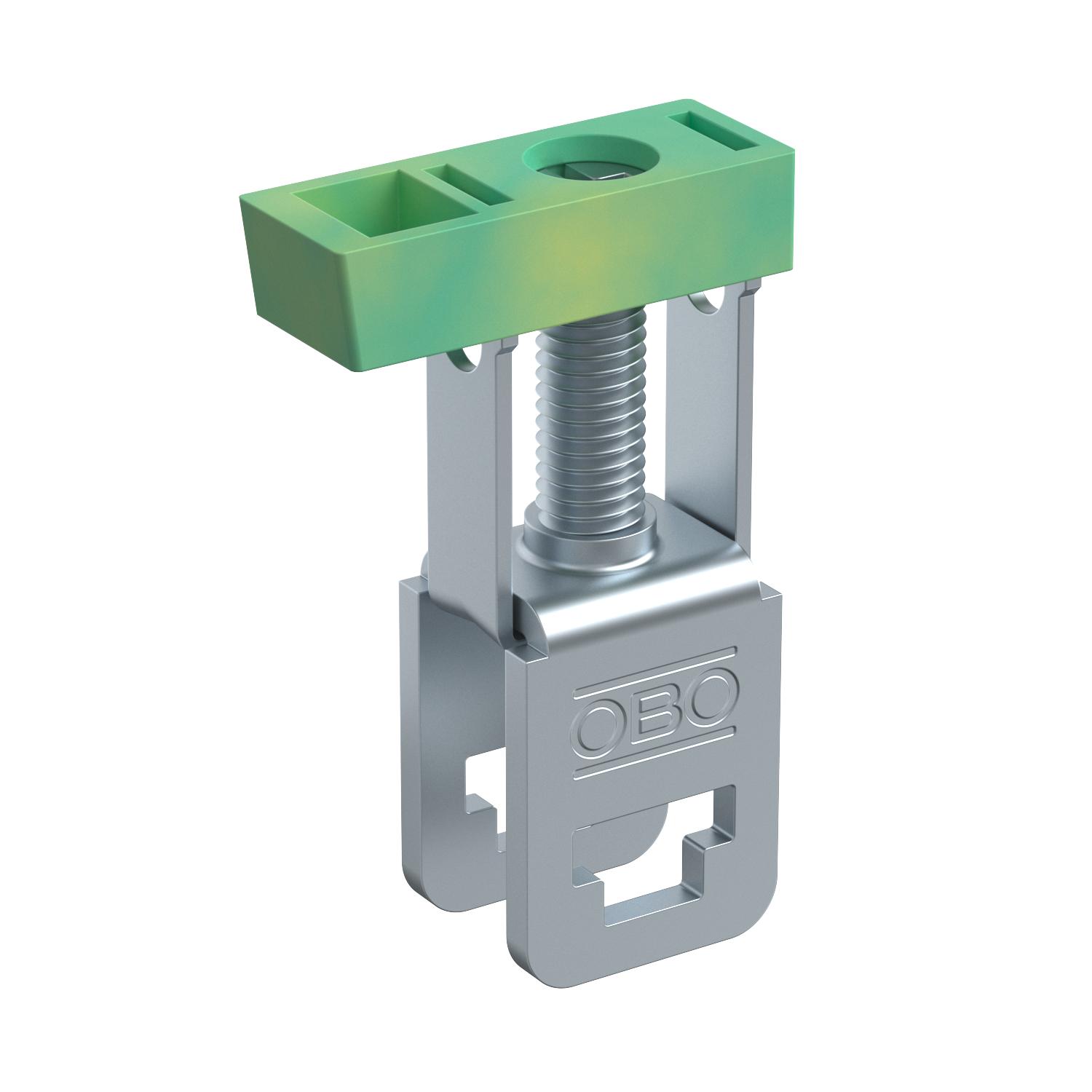

Protective conductor terminal for refitting of the FireBox T series with green-yellow identification.
Technical data

Technical data

Bus bar thickness 2,5 mm
Bus bar width 6 mm
Colour Yellow green

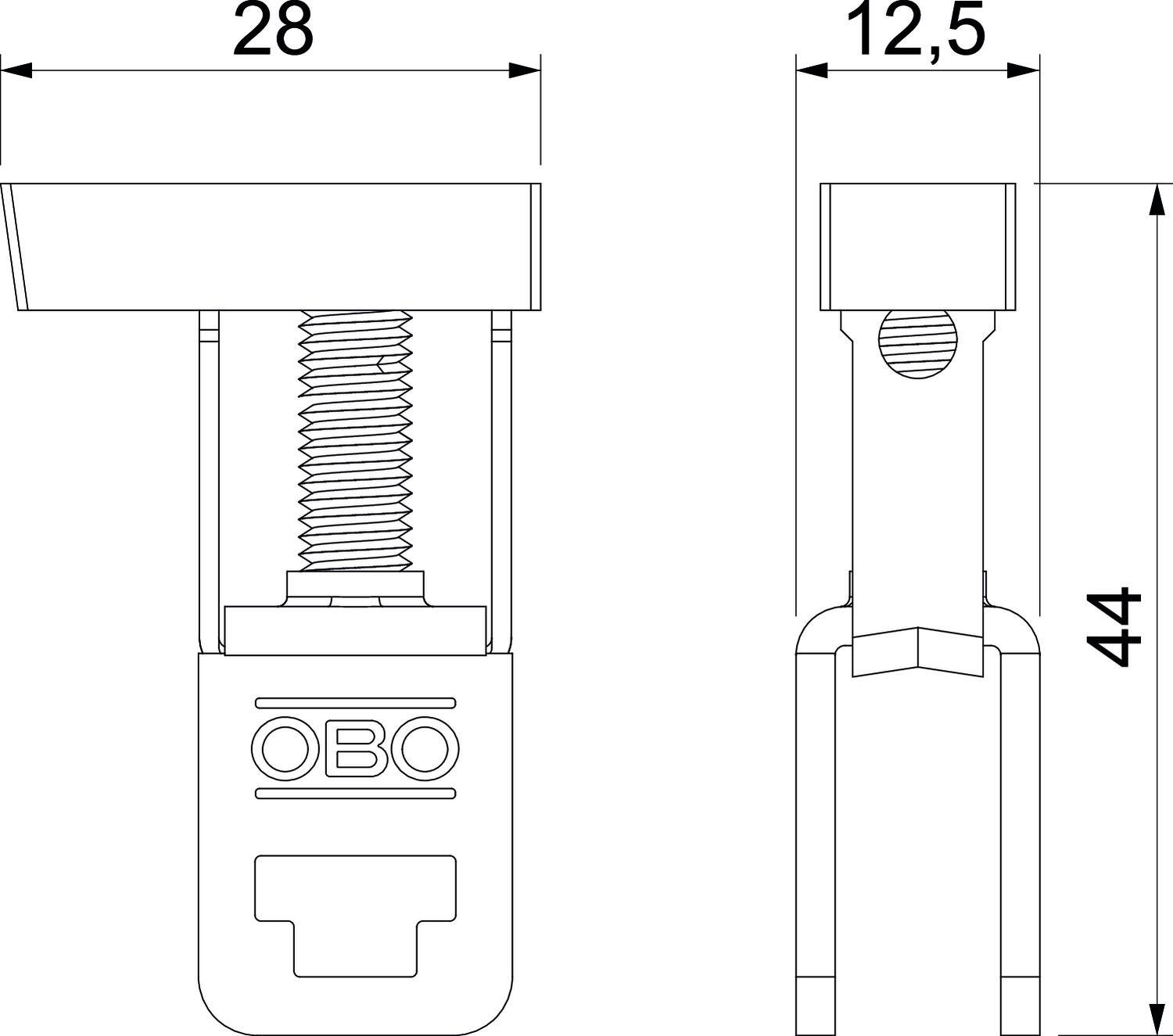

Dimension 28x12,5x44
Dimension B 28 mm
Dimension H 44 mm
Dimension L 12,5 mm
Max. Conductor cross-section 35 mm²
Max. Measuring operating current Ie 140 A
Suitable for busbar Flat rail
Suitable for ribbon conductor connection no
Suitable for round cable connection yes
Suitable for sector conductor connection no
Width 12,5 mm
All types

All types

Types Max. Conductor cross-section Item no. Quantity SSU
TPE 35 35 mm² 7205714
5 piece
Downloads

Download

REACH Declaration of conformity TPE 35 / 7205714 , 0.12MB , pdf
RoHS Declaration of conformity TPE 35 / 7205714 , 0.12MB , pdf

No invitation to tender text is available for this product.
