Protective spark gap

Item no. 5240050 | EAN 4012195412632

5240050 / 482
25 kA
< 10 kV
Product description

Product description

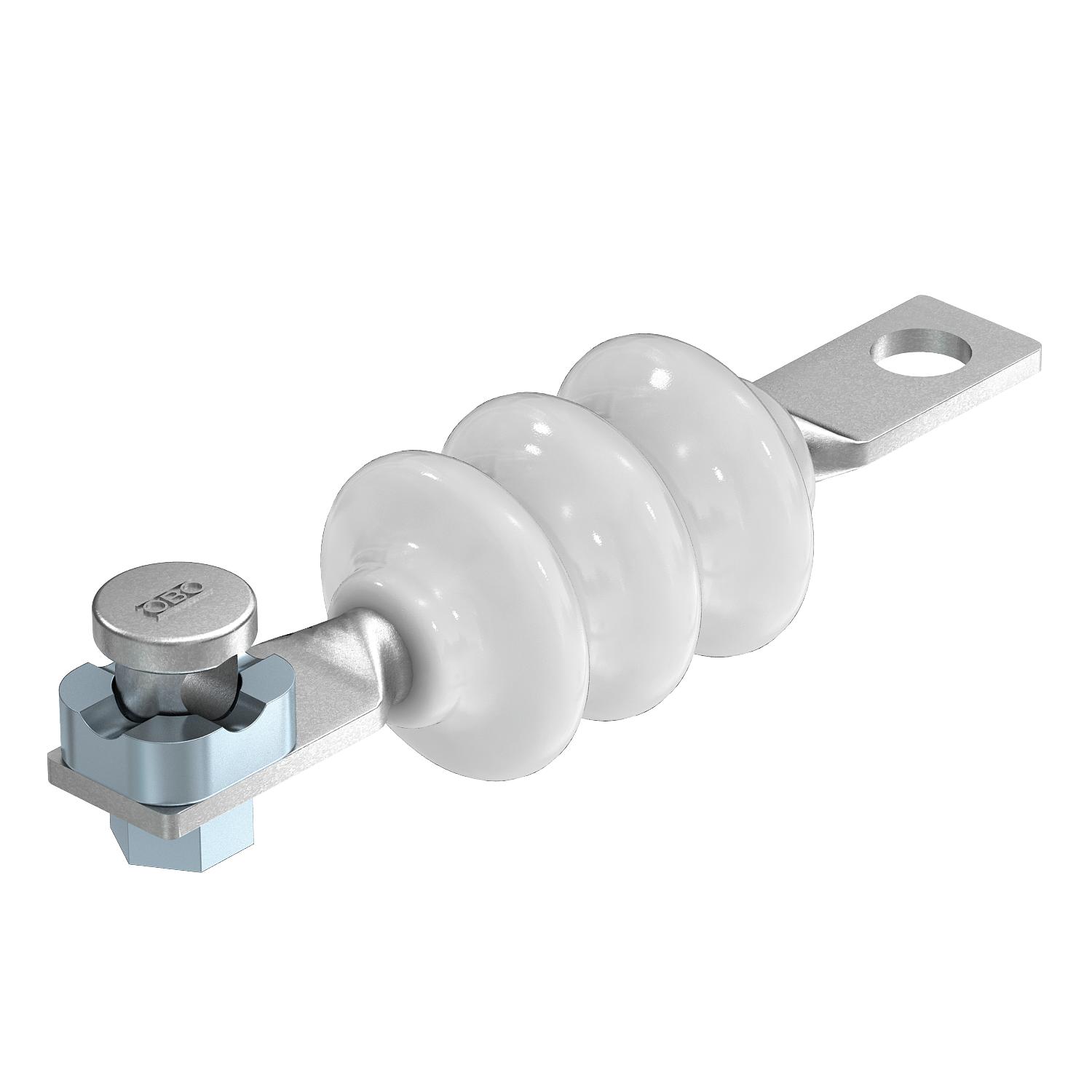

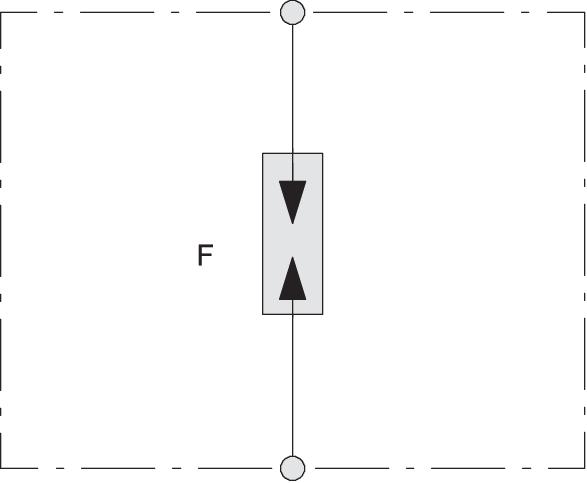

Closed spark gap for bridging a proximity point between roof standard of low-voltage system and components of outer lightning protection system.


• Protection rating IP 54

• With pre-mounted type 5001 connector for attaching round conductors Rd 8 - 10
  • 5-year warranty
  • EurAsian Conformity
Technical data

Technical data

Connection Rd 10 mm

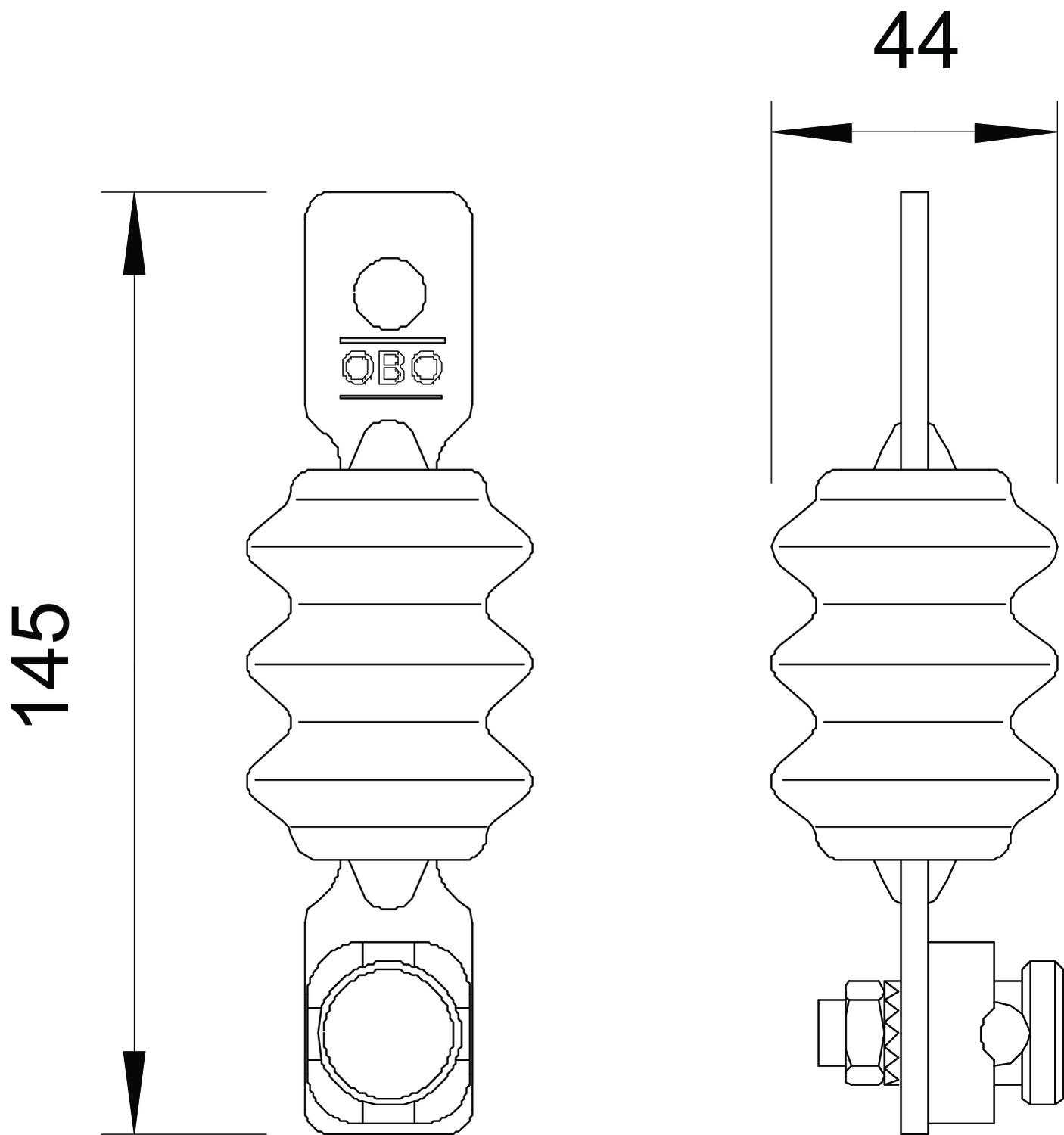

Dimension 134x93x86
Explosion-tested version no
Material cast steel
Material of the connection Die-cast zinc
Nominal discharge surge current 25 kA
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -20 °C
Power frequency spark-over voltage 10 kV
Protection level < 10 kV
Protection rating IP54
Response time <100 ns
All types

All types

Types Nominal discharge surge current Protection level Item no. Quantity SSU
482 25 kA < 10 kV 5240050
1 piece
