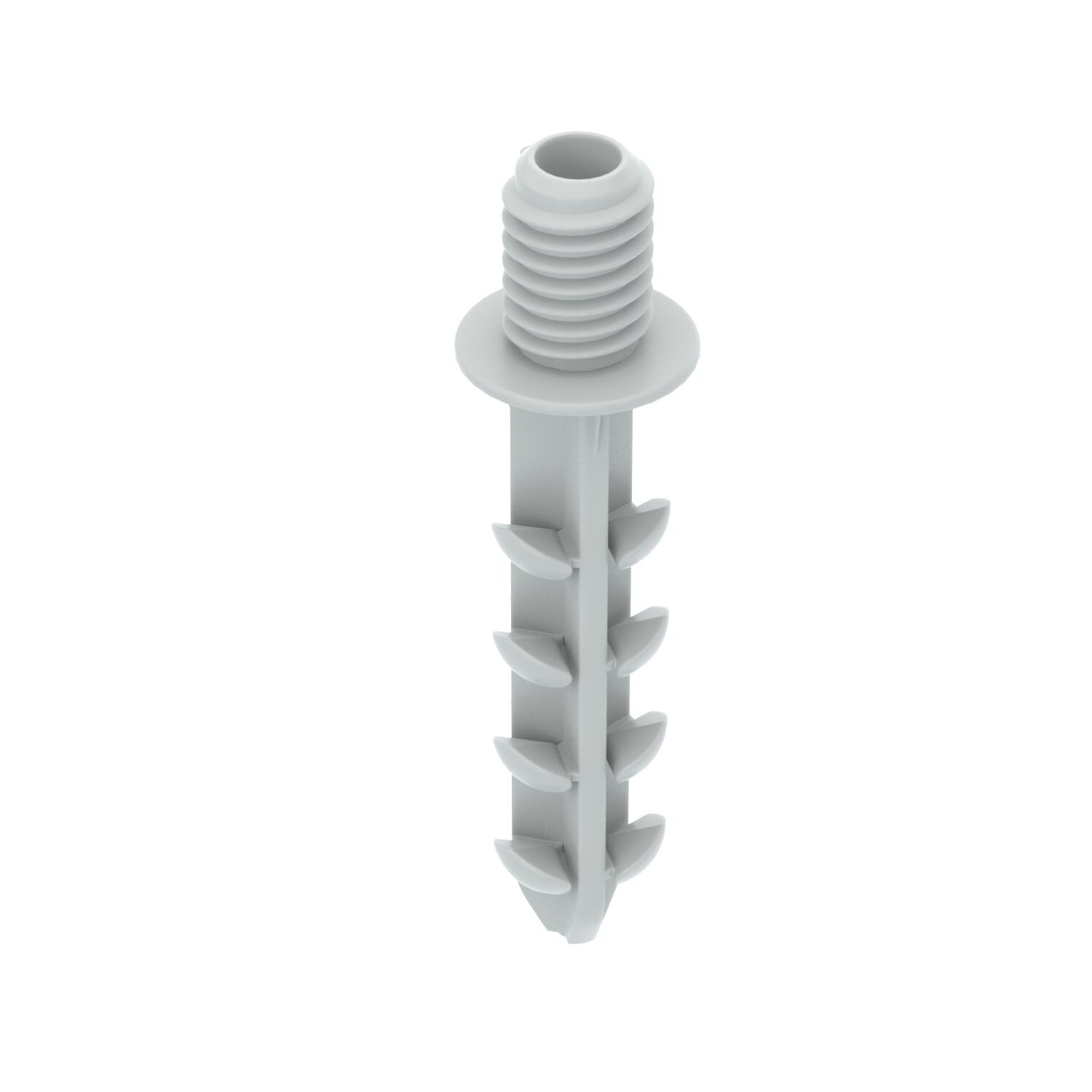

Push-fit plug Delta-Push® with M6 thread
Item no. 2351673 | EAN 4012197430788
- Product description
-
Product descriptionPush-fit plug Delta-Push® for mounting electrical installations. Suitable for concrete, calcareous limestone, full brick, hollow brick and porous concrete. Toolless mounting by pushing into a drill hole in a wall or on a ceiling. Without screws. With M6 thread for screwing on Quick clips, for example.
-
- Technical data
-
Technical data

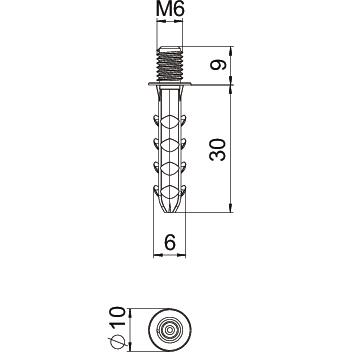

Diameter 6 mm Dimension 39,0x10,0x10,0 Drill hole depth 35 mm Drill hole diameter, min. 6 mm Halogen-free yes Length 30 mm Material Polyamide Mounting type, anchor, tie Pre-mounting Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Calcareous sandstone Version for Push-fit anchor With bolts no - All types
- Downloads
-
Mounting instructions Push-fit anchor Delta-Push® DP D 30, DP KB 30, DP GM6 30 , 0.51MB , pdf
