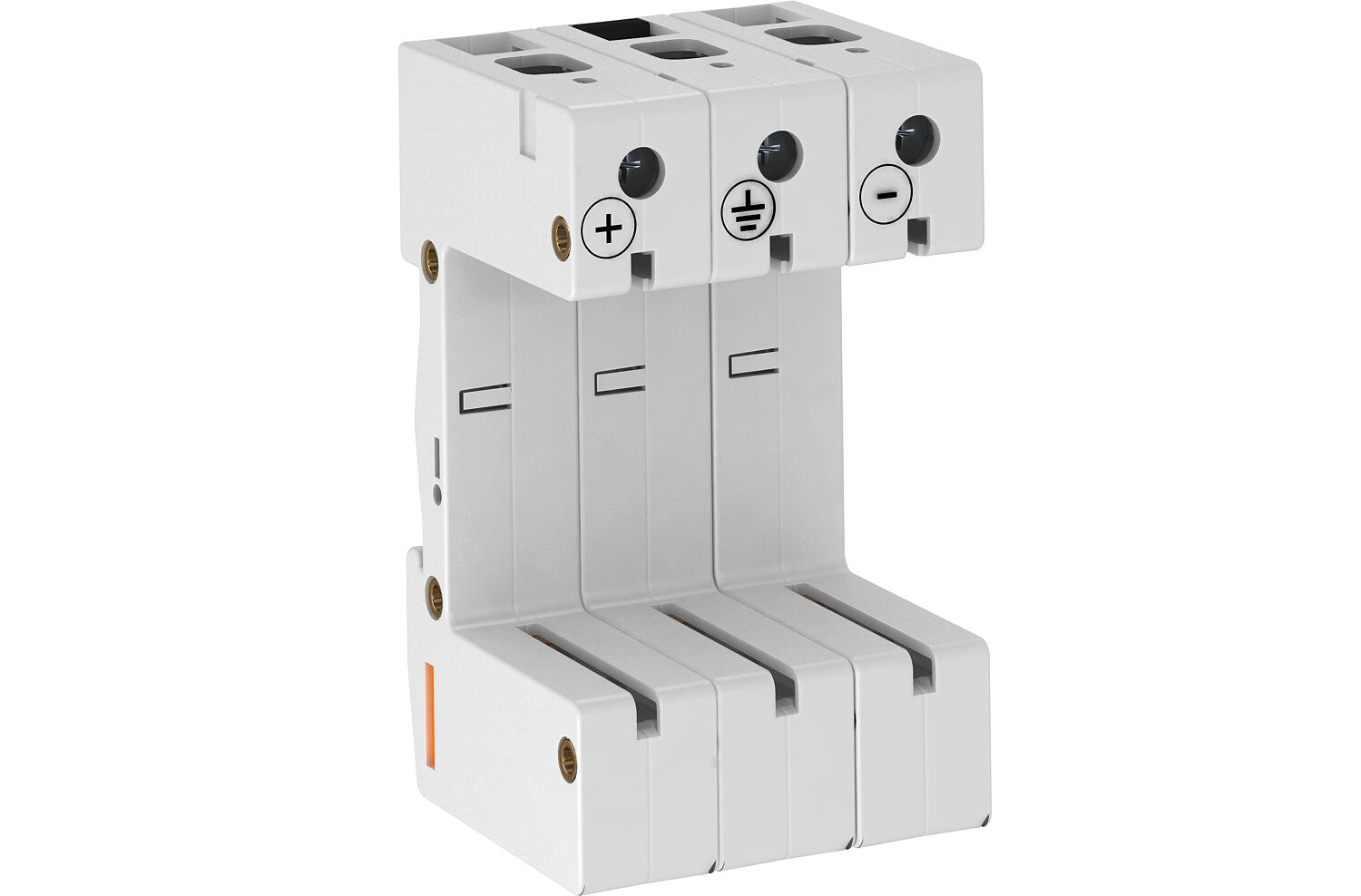

Product descriptionBase for photovoltaic systems up to Voc = 1,000 V (Y-circuit)
• Suitable for V 25-B+C upper parts, type 1+2, combination arresters
• Suitable for V 20-C upper parts, type 2, surge arresters
• Protection circuit against transverse and longitudinal voltages

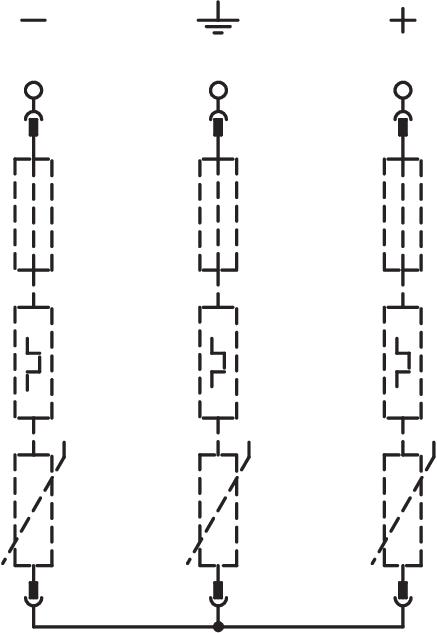

• Y-protection circuit
• Low DC voltage protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-C/0-440)
• Low DC voltage protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-385)
• Low DC voltage protection level: < 2.6 kV (Voc max = 600 V DC with V50-C/0-280)
• Labelled connections
Application: In photovoltaic systems between PH modules and inverters.
- Technical data
-
Technical data

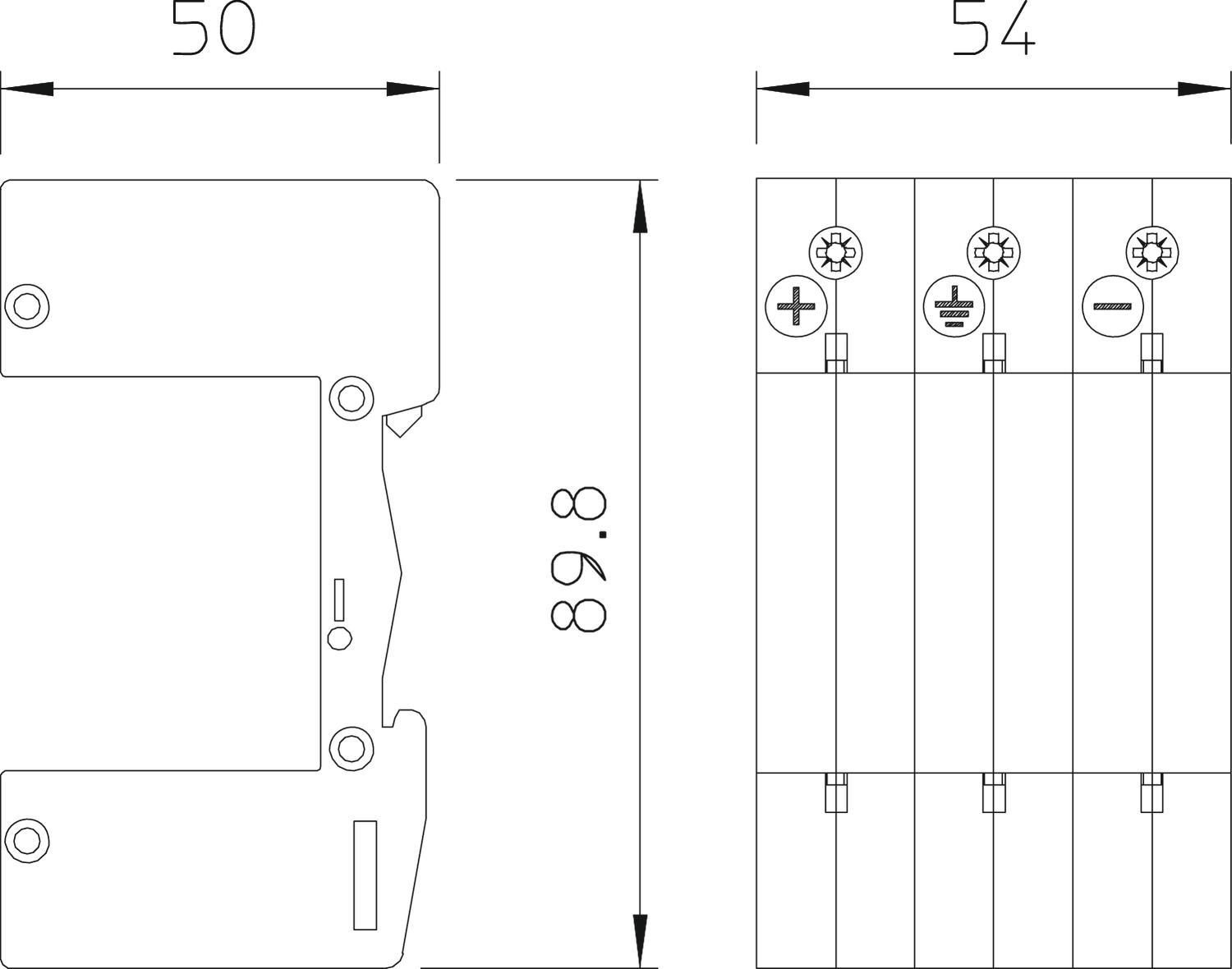

Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension Y-PH Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3 Protection rating IP20 Version for 3-pole Y circuit for PV - All types
- Downloads
-
Data sheet V20-C U-3PH-Y / 5096647 , 0.21MB , pdfEU declaration of conformity V20-C U-3PH-Y / 5096647 , 0.11MB , pdfREACH Declaration of conformity V20-C U-3PH-Y / 5096647 , 0.12MB , pdfRoHS Declaration of conformity V20-C U-3PH-Y / 5096647 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
