PV CombiController V50, plug-in arrester, type 1+2 1 | 280 | IP20

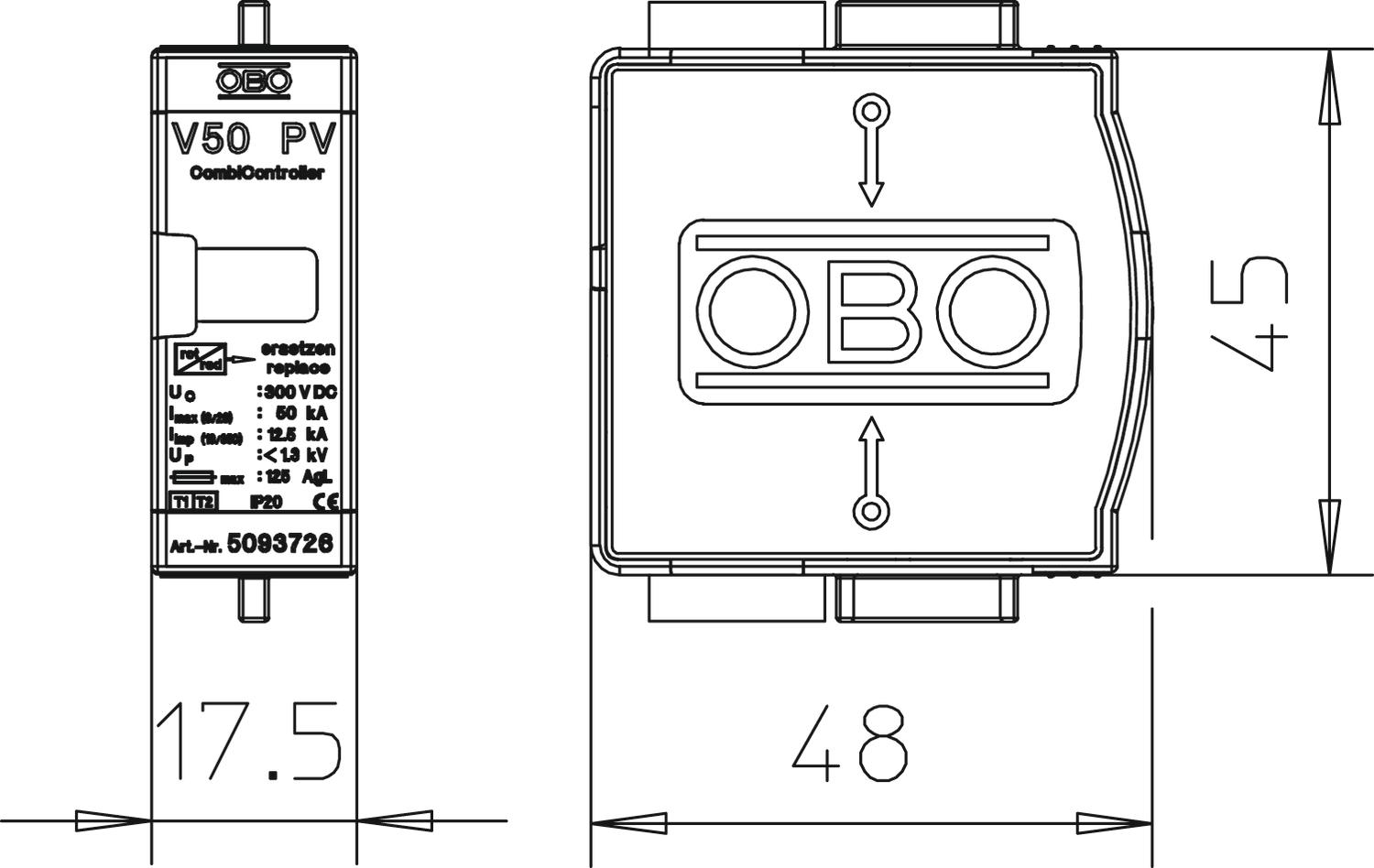

PV CombiController V50, plug-in arrester, type 1+2

Item no. 5093726 | EAN 4012195708841

Item no. / Types	5093726 / V50-B+C 0-300PV

Pole version	1

Maximum continuous voltage AC	280

Protection rating	IP20

Product description

Product description

CombiController upper part – type 1+2, combination arrester for photovoltaic systems

• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 12.5 kA (10/350) and 50 kA (8/20) per pole
• Low DC voltage protection level: < 1.3 kV per pole (Y circuit: 2.6 kV and Voc max = 600 V DC)
• Plug-in arrester with thermodynamic cut-off unit and visual function display
• Encapsulated, zinc oxide varistor arrester for use in distributor housings
• High current carrying capacity with long lifespan

Application: PV systems with lightning protection system
Plug-in arrester

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	30 kA
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
Dimension	300V DC
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	12,5 kA
Lightning surge current (10/350)	12,5 kA
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage AC	280
Maximum continuous voltage DC	300
Maximum discharge current (8/20 μs)	50 kA

Nominal discharge current (8/20 µs)	30 kA
Nominal discharge current (8/20 µs) [L-N]	30 kA
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole version	1
Protection level [L-N]	≤1,3
Protection rating	IP20
Response time	<25 ns
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
Version for	1-pole, PV upper part with Y base to 600 V DC
