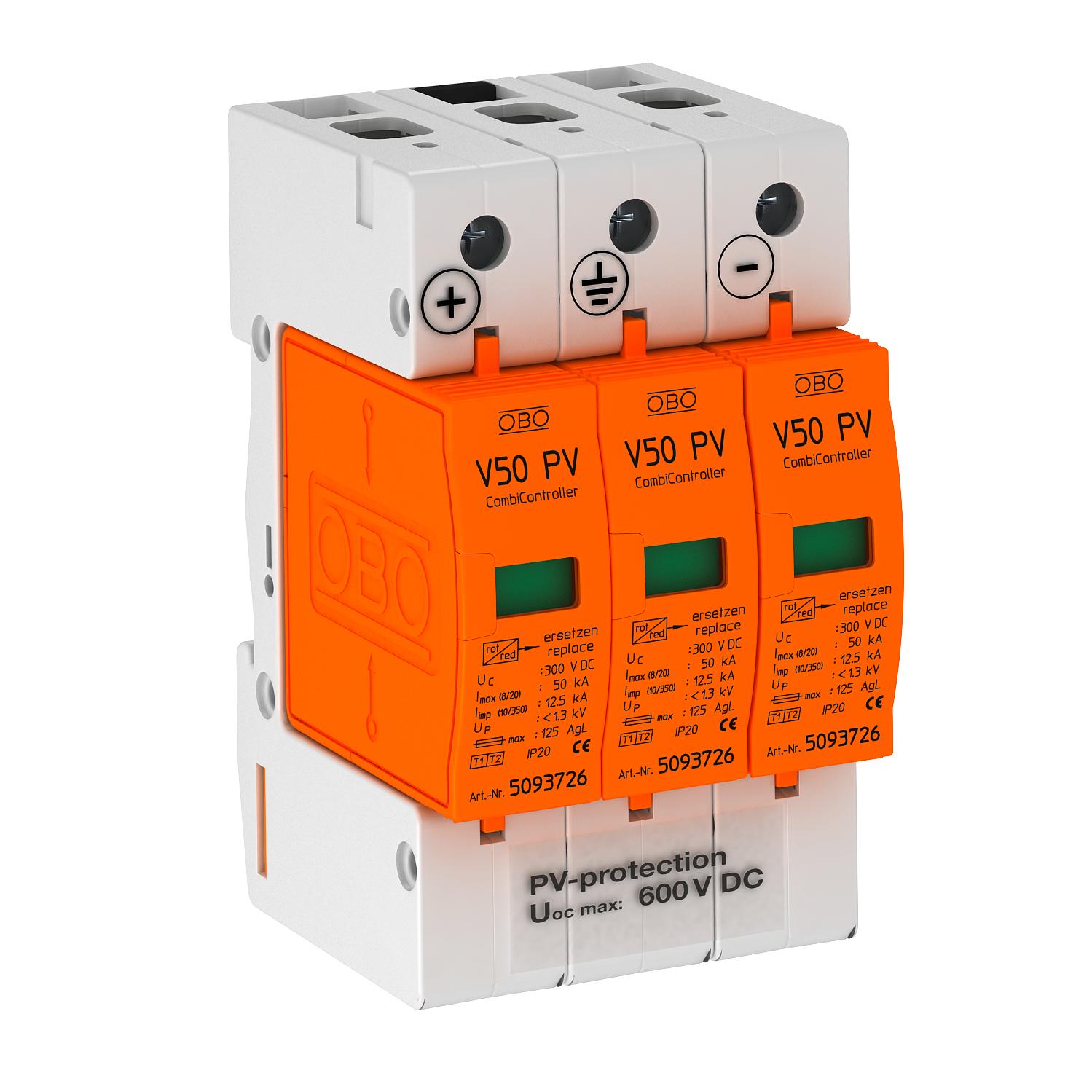

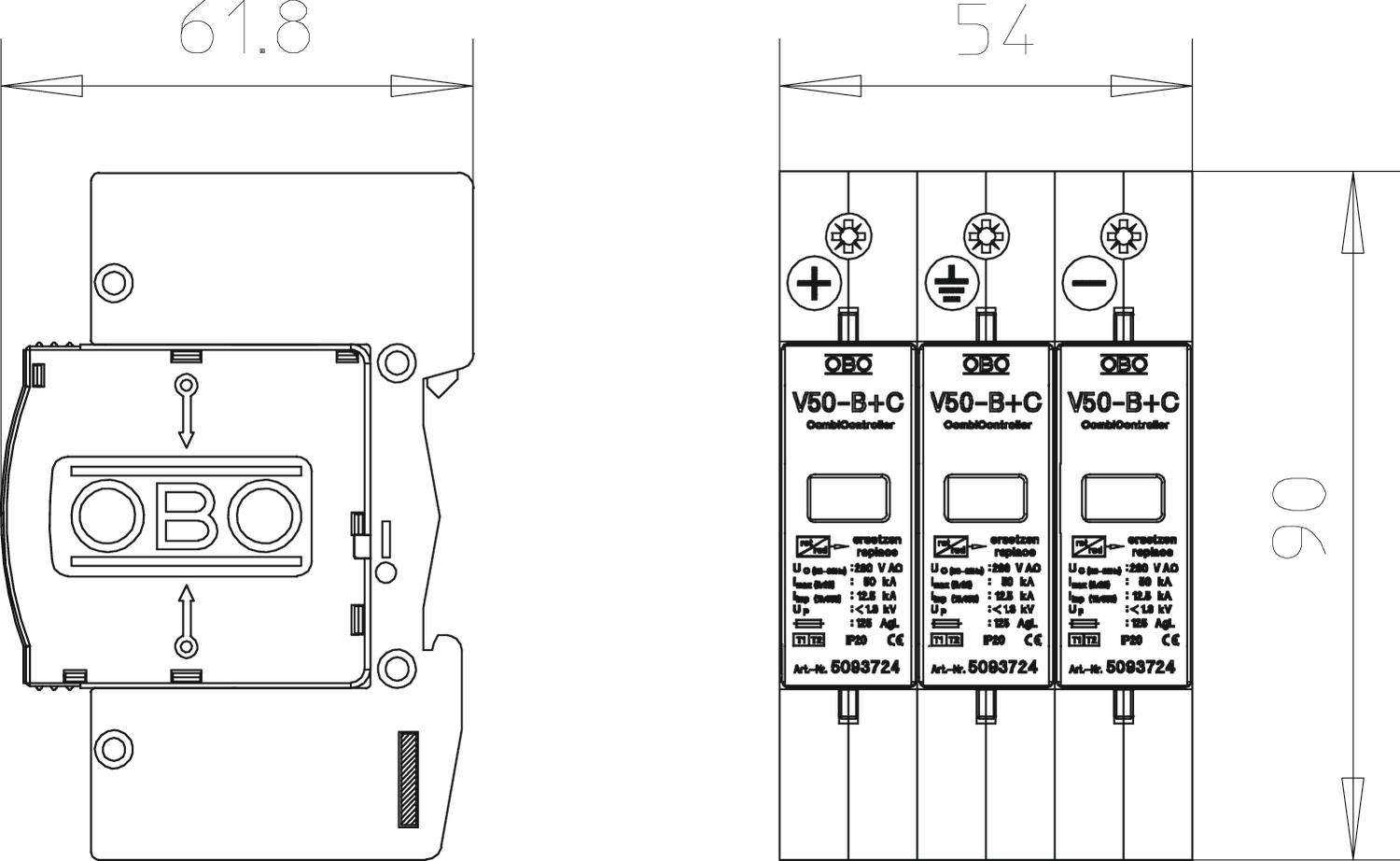

Product descriptionV50 combination arrester, type 1+2, for photovoltaic systems
• Complete unit, consisting of plug-in varistor arrester with cut-off unit
• Error-resistant Y circuit to VDE 0100-712 (EN 50539-12)
• Surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 12.5 kA (10/350) and 50 kA (8/20) per pole
• Low DC protection level: < 2.6 kV and Voc max = 600 V DC
• With visual function display for use in distributor housings
Application: PV systems with lightning protection system.
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 30 kA Blow-out no Cable type for surge protection devices Power cable DC (PV) Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² DC network form yes Dimension 600V DC Installation type DIN rail 35 mm IT network form no Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 12,5 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage DC 600 V Maximum discharge current (8/20 μs) 50 kA Network form DC Nominal discharge current (8/20 µs) 30 kA Nominal discharge current (8/20 µs) [L-N] 30 kA Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Pole version 3 Protection rating IP20 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II TN network form no TN-C network form no TN-C-S network form no TN-S network form no TT network form no Version for 3-pole for PV systems - All types
