PV SurgeController V20, plug-in arrester, type 2 1 | 300 | IP20

PV SurgeController V20, plug-in arrester, type 2

Item no. 5099611 | EAN 4012195708902

Item no. / Types

Pole version	1

Maximum continuous voltage AC

Protection rating	IP20

Product description

Product description

SurgeController upper part - type 2, surge arrester for photovoltaic systems

• For surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Arresting capacity to 40 kA (8/20) per pole

• Low DC voltage protection level: < 1.3 kV per pole (Y circuit: 2.6 kV and Voc max = 600 V DC)

• Plug-in arrester with thermodynamic cut-off unit and visual function display

• Encapsulated, non-extinguishing zinc oxide varistor arrester for use in distributor housings

• High current carrying capacity with long lifespan

Application example: PV systems with or without separated insulated lightning protection system

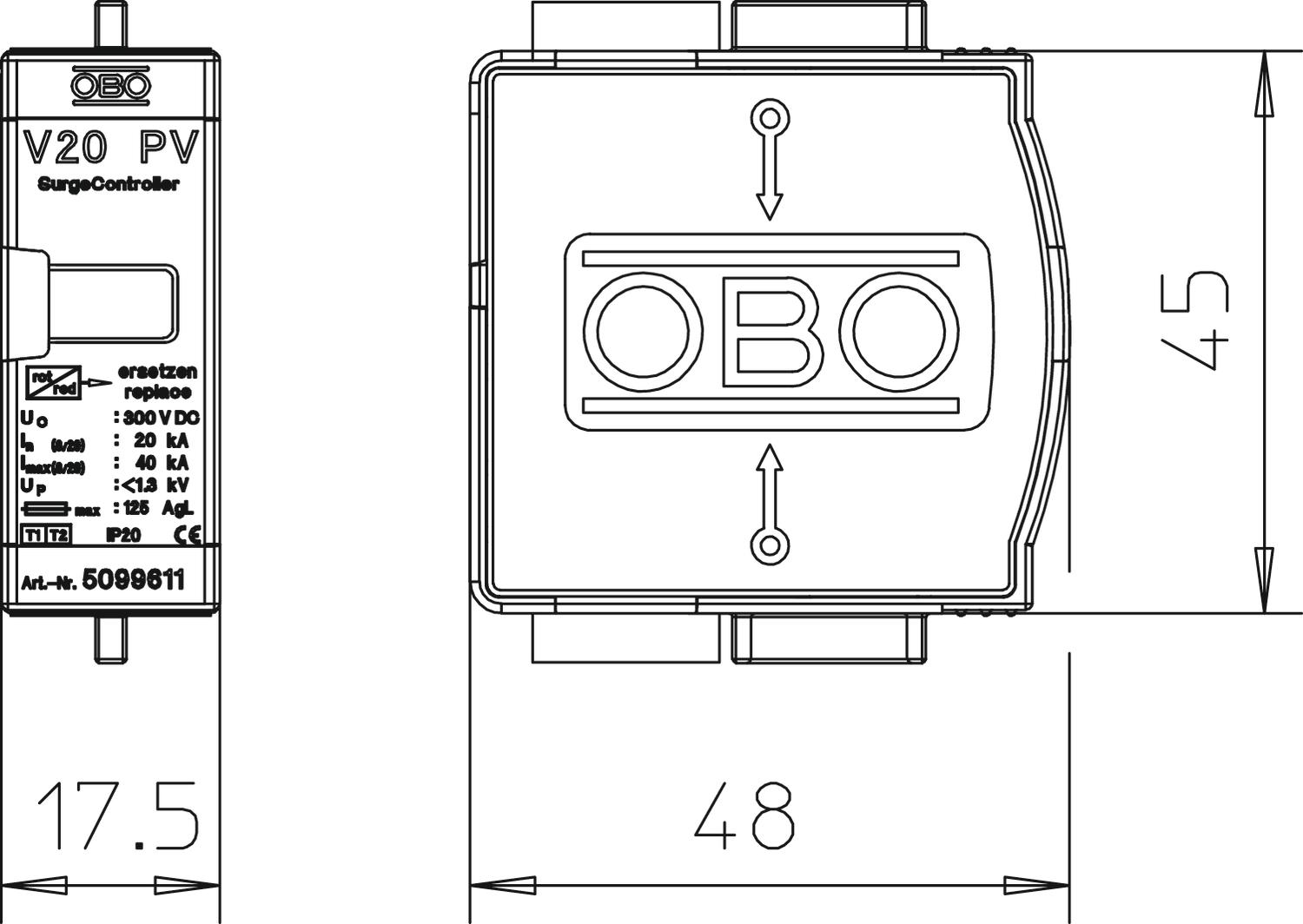

Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
DC network form	yes
Dimension	300V DC
Installation type	On basic element
Integrated back-up fuse	no
IT network form	no
Lightning protection zone LPZ	1→2
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage AC	300
Maximum continuous voltage DC	300
Maximum discharge current (8/20 μs)	40 kA
Network form	TN
Nominal discharge current (8/20 µs)	20 kA
Nominal voltage AC (50/60 Hz)	400 V
Operating temperature, max.	80 °C

Operating temperature, min.	-40 °C
Other network form	no
Pole version	1
Protection rating	IP20
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2
SPD to IEC 61643-1	Class II
Test class, type 2	yes
TN network form	yes
TN-C network form	yes
TN-C-S network form	yes
TN-S network form	yes
TT network form	yes
Version for	1-pole, PV upper part with Y base to 600 V DC
