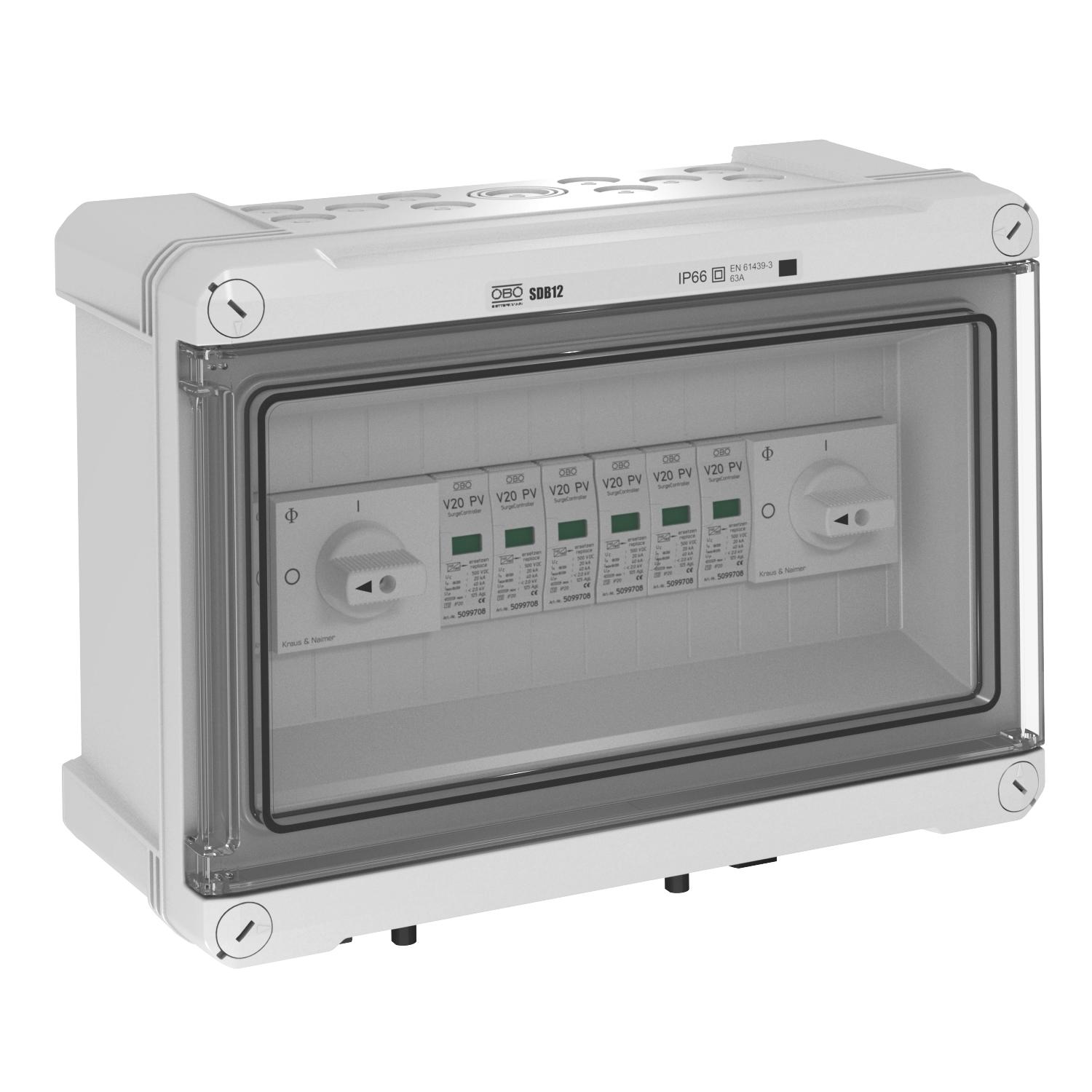

PV system solution, type 2, with MC4 connector and switch disconnector for inverter with 2 MPP trackers, 1,000 V DC IP66

PV system solution, type 2, with MC4 connector and switch disconnector for inverter with 2 MPP trackers, 1,000 V DC

Item no. 5088503 | EAN 4012196792214

Item no. / Types	5088503 / PKV-C1000ST110

Protection rating	IP66

Product description

Product description

System solution, type 2, with MC4 connector and switch disconnector for inverter with 2 MPP trackers, 1,000 V DC

• Varistor arrester, pluggable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Uoc max = 1,000 V DC with V20-C/0-500PV)
• Circuit breaker (1,000 V; 20 A) for the safe disconnection of the DC string cable
• One PV string input (MC4 connector) to one MPP input
• Pre-mounted with polycarbonate housing (IP66), UV-resistant for the use outside

For DC protection of the inverter in PV systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	13,5718 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
DC network form	yes

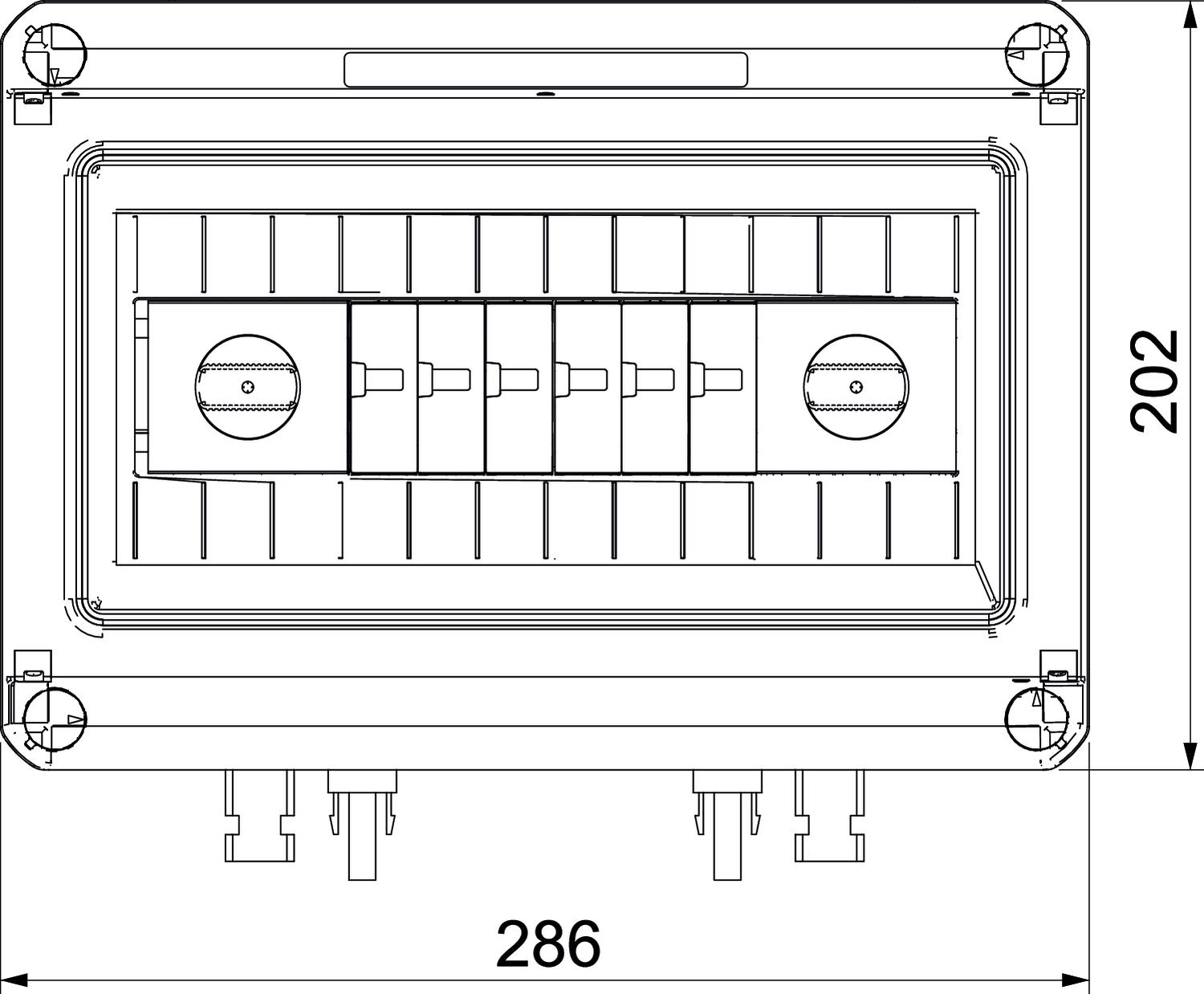

Depth	125 mm
Dimension	1000V DC
Equipped with load-break switch	yes
Installation type	Pre-mounted in the housing
Integrated back-up fuse	no
IT network form	no
Lightning protection zone LPZ	1→2
Material	Polycarbonate
Max. Input current per string	20 A
Max. Input voltage DC	1000 V
Max. mains-side overcurrent protection	125
Max. Output current	20 A
Max. PV voltage	1000 V
Maximum back-up fuse	125 A
Maximum continuous voltage DC	1000 V
Maximum discharge current (8/20 μs)	40 kA
Monitoring function	no
Network form	Other
Nominal discharge current (8/20 µs)	20 kA
Number of cable entries	4
Number of inputs	1

Number of string inputs	1
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	yes
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Pole version	3
Protection rating	IP66
Protection rating IK code	IK08
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2
SPD to IEC 61643-1	Class II
String fuse	Without
Test class, type 2	yes
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Type of entry	MC4
Version for	3-pole for PV systems
