PYROBAG® fire protection cushion 40 | 0.63

PYROBAG® fire protection cushion

Item no. 7202741 | EAN 4012196460755

Item no. / Types

Dimension d min.

Contents

Product description

Product description

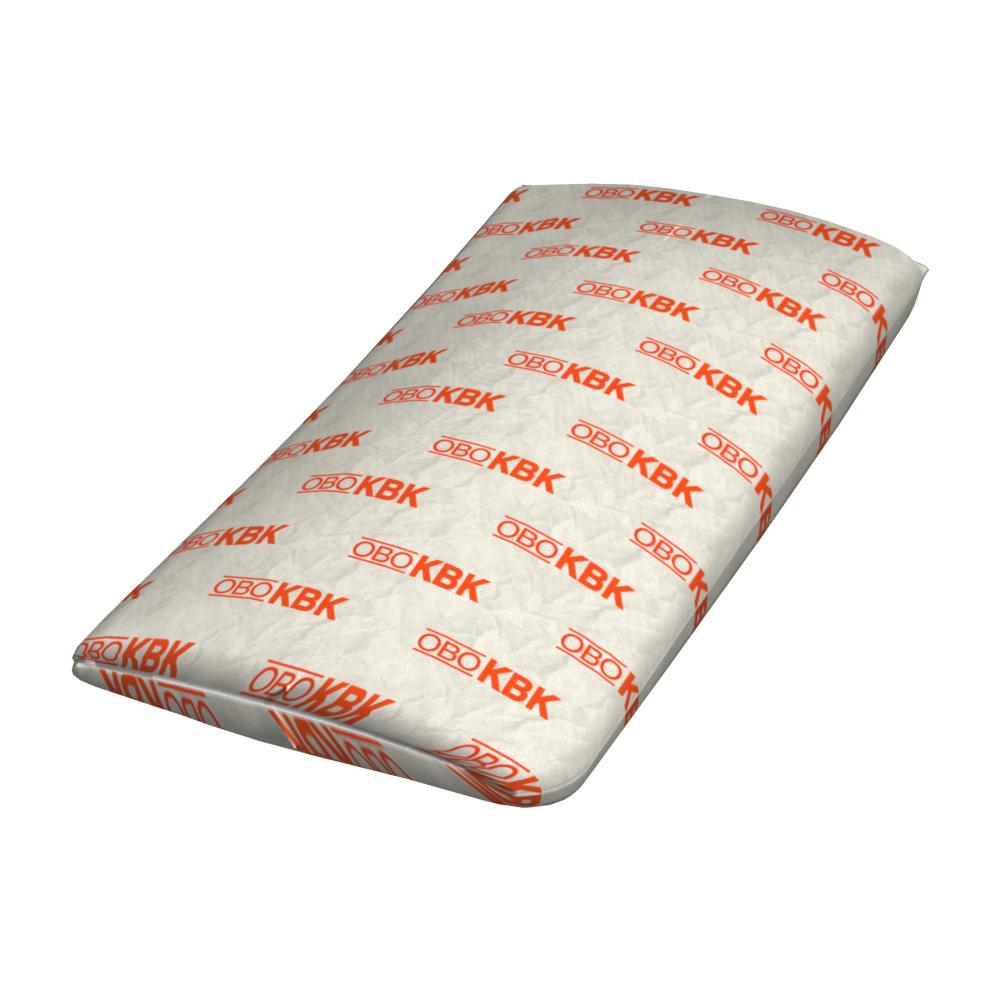

Cable fire protection cushions made of dense, closely knit and mechanically solid glass mesh with a special filling. Free from mineral fibres, weatherproof and water-resistant. For interior application.

Can be stored for an unlimited period of time in dry, frost-free rooms.

Technical data

Technical data

Accessories required	yes
Colour	Grey
Contents	0,63 kg
Dimension	350x170x40mm

Fire protection version	Cushion insulation
Material	Glass mesh with special fire protection filling
Shape	Rectangular

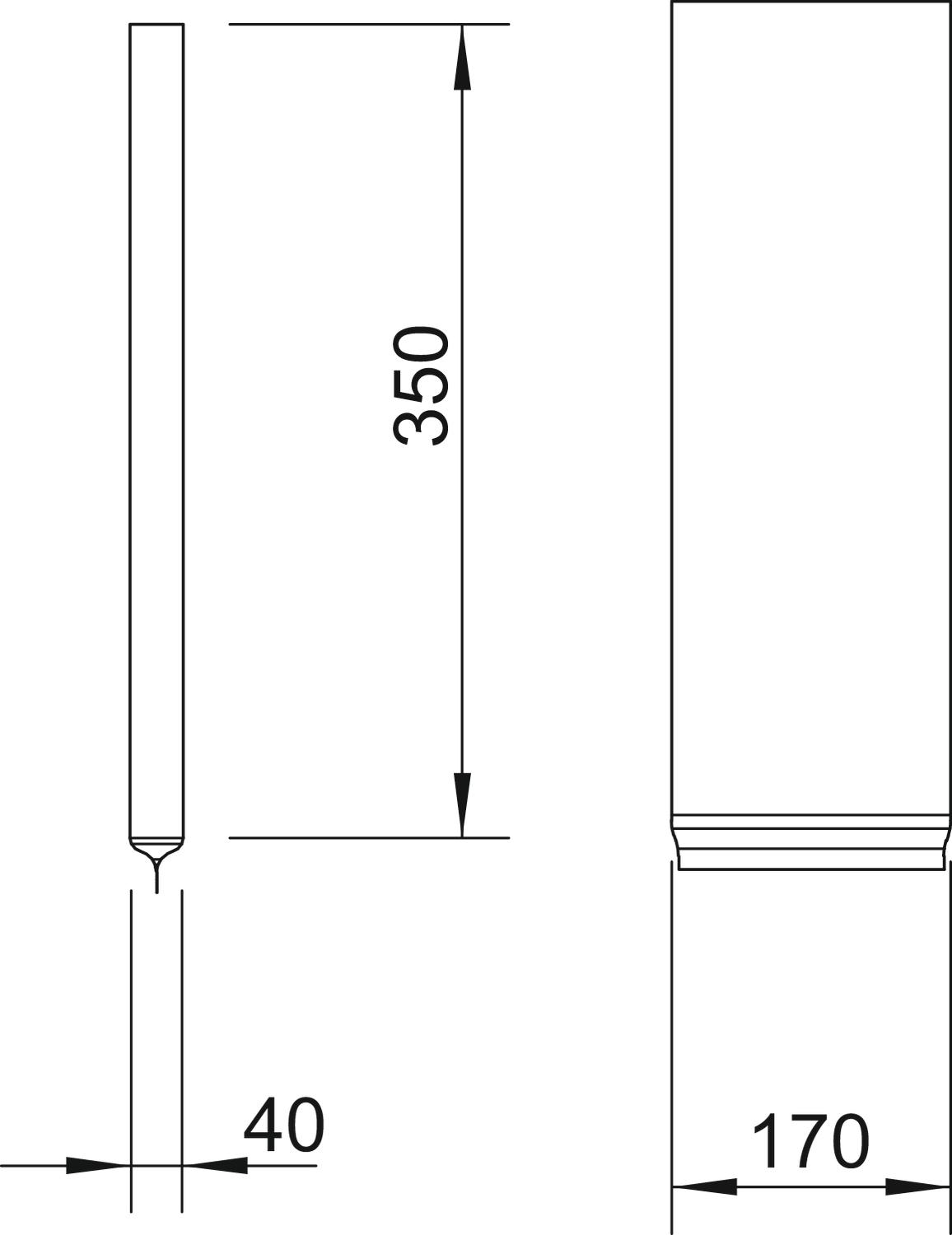

Dimensions

Dimension B	170 mm
Dimension d min.	40 mm
Height	40 mm

Length	350 mm
Width	170 mm

All types

All types

Types	Dimension d min.	Contents	Item no.	Quantity	SSU
KBK-1	10 mm	0.18 kg	7202709	piece	5 piece
KBK-2	23 mm	0.33 kg	7202725	piece	5 piece
KBK-3	40 mm	0.63 kg	7202741	piece	5 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Calcium silicate plate	KSI-P1	7202283	piece	1 piece
Calcium silicate plate	KSI-P2	7202904	piece	1 piece
Calcium silicate plate	KSI-P3	7202912	piece	1 piece
Steel wire grid	SDG-1	7202963	piece	1 piece
Steel wire grid	SDG-2	7202971	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
