PYROCOMB® Intube half shell
Item no. 7204306 | EAN 4012196448081
- Product description
-

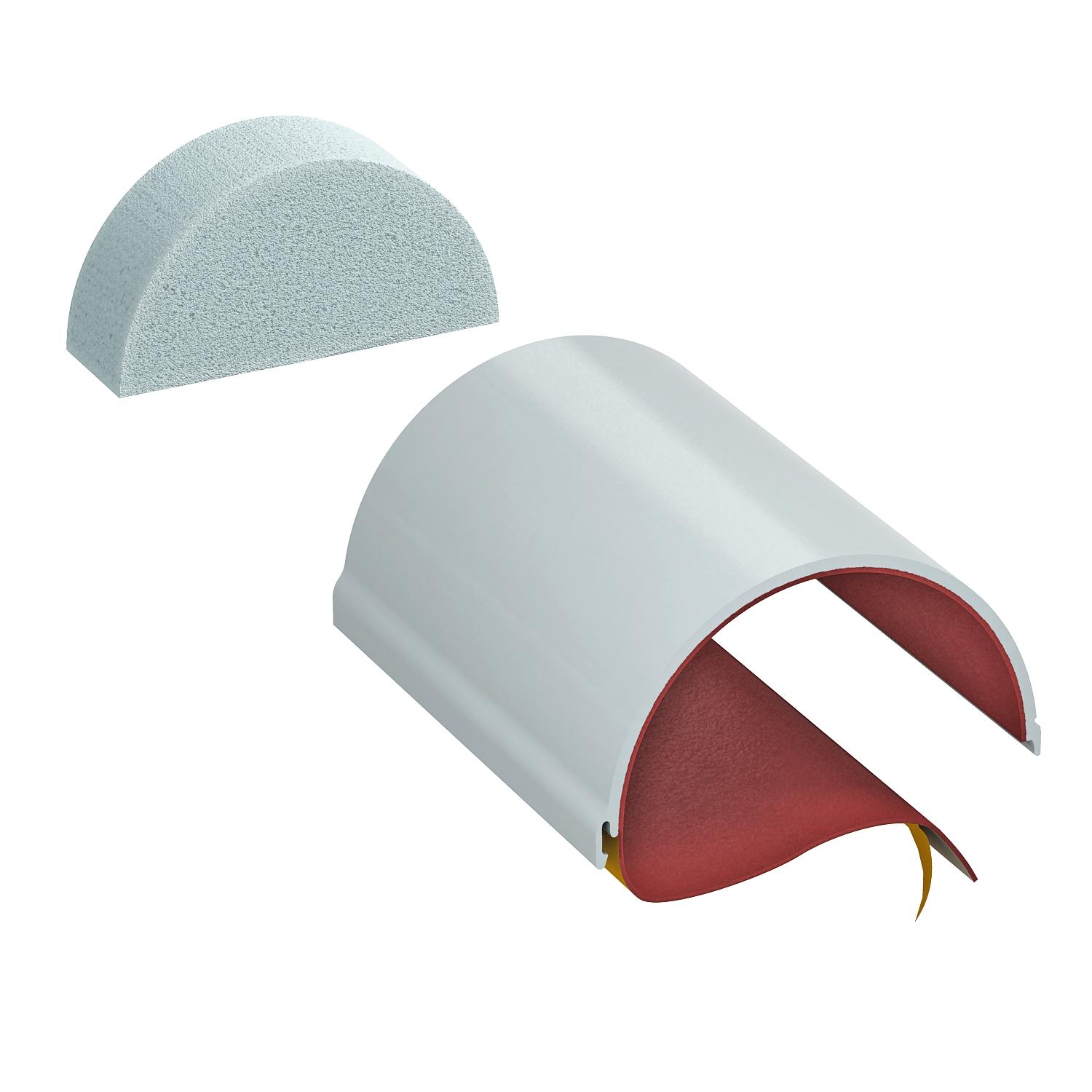

Product descriptionInternally coated half shell, the inner space of which can be fully assigned with cables and electrical installation pipes. For interior application. CE-labelled, European approved construction product according to ETA-13/0904 and German general type approval. Fire resistance up to 120 minutes.
Closing with foam plug included in the delivery. The surface seal is created with PYROCOAT® ASX coating. The system is particularly suitable for underfloor areas.
Details can be found in the mounting instructions/approval.
-
- Technical data
-
Technical data

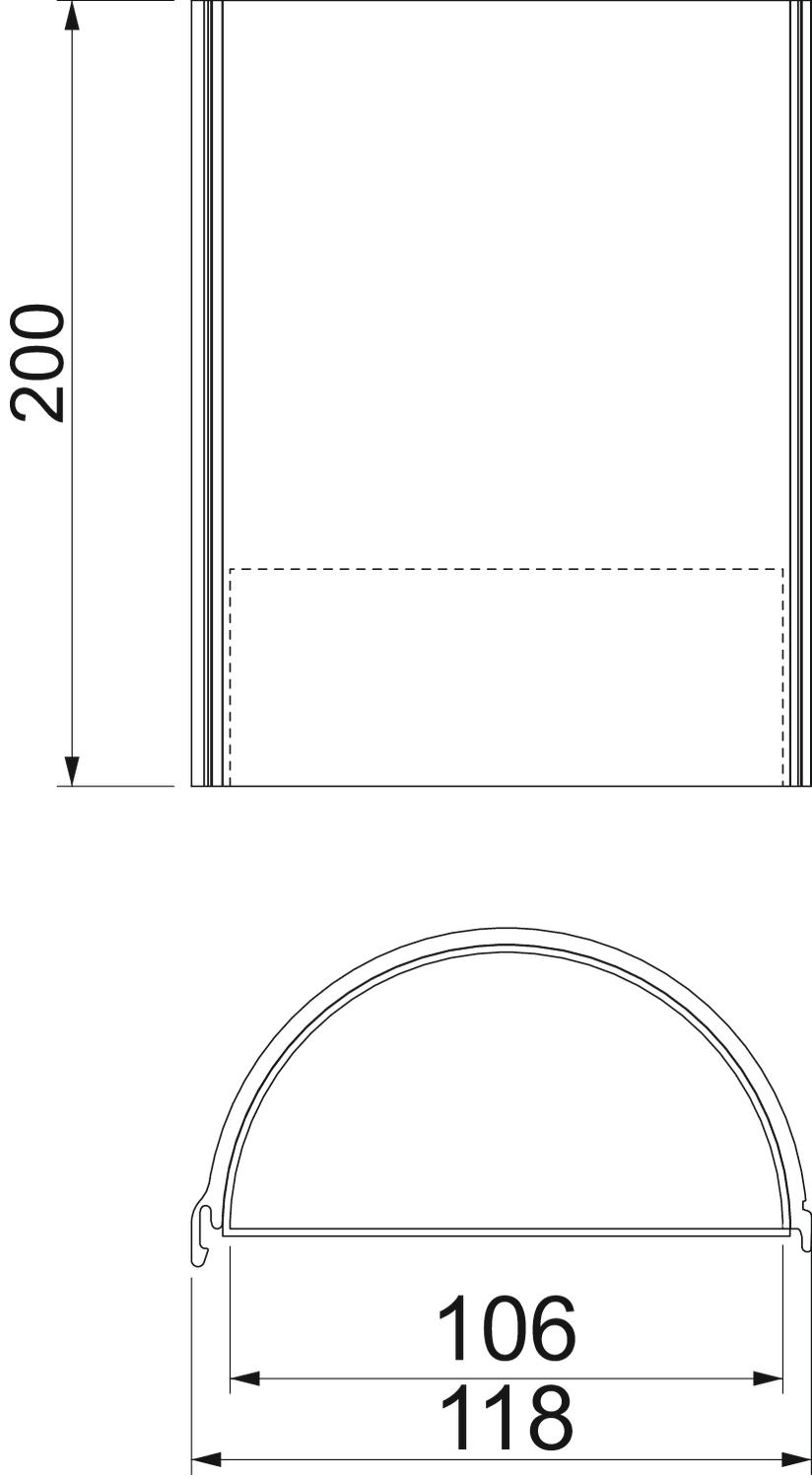

Accessories required no Colour Grey Diameter 120 mm Dimension 200x116x65mm Dimension B 118 mm Dimension d min. 106 mm Dimension L 200 mm Fire protection version Miscellaneous For opening, max. 165 mm For opening, min. 125 mm Length 200 mm Material Polyvinylchloride Shape Round - All types
-
System accessories
Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge
ASX-K 7202310 1 piece
Identification plate DE
KS-S DE 7205425 1 piece - Downloads
-
Data sheet CTS-HP200 / 7204306 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity CTS-HP200 / 7204306 , 0.11MB , pdfDeclaration of performance CTS-HP200 / 7204306 , 0.75MB , pdfApproval certificate European Technical Approval, PYROCOMB® Intube , 0.20MB , pdfSelection aid Selection aid, insulation , 0.86MB , pdfMounting instructions System instructions PYROCOMB® Intube , 0.04MB , pdfNo invitation to tender text is available for this product.
