PYROPLUG® Box box insulation

Name: PYROPLUG® Box box insulation
Brand: OBO Bettermann
SKU: 7202660

Item no. 7202660 | EAN 4012196144013

Product description

Product description

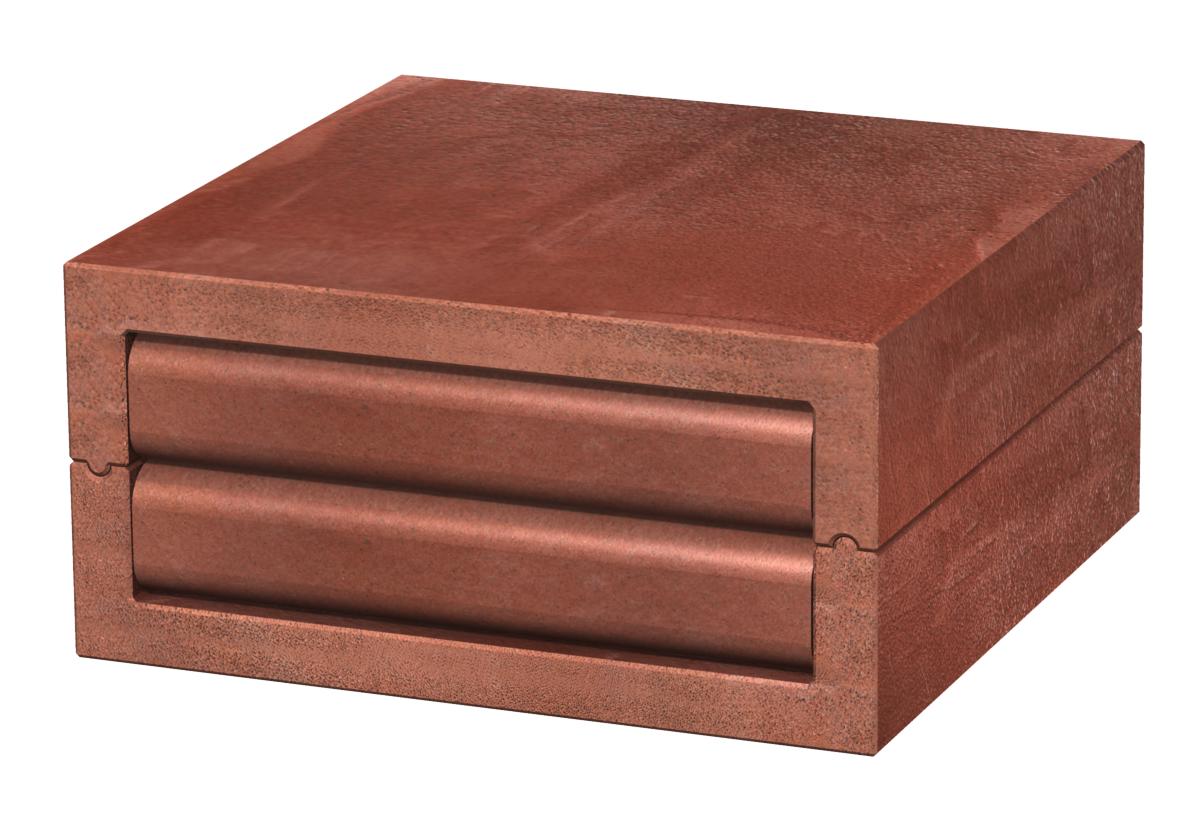

Box for cable insulation.

Consisting of a two-part, hard frame and two soft internal pieces. Protect the frame and internal pieces against water in order to guarantee safe foaming in case of fire. For interior application.

Technical data

Technical data

Accessories required	yes
Colour	Red
Dimension	200x200x100

Fire protection version	Box body
Material	Permanently elastic, closed-pore foam
Shape	Rectangular

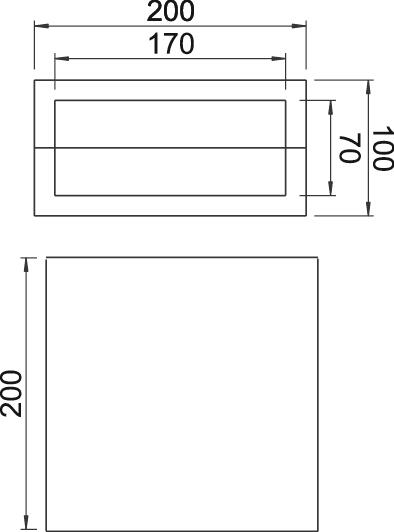

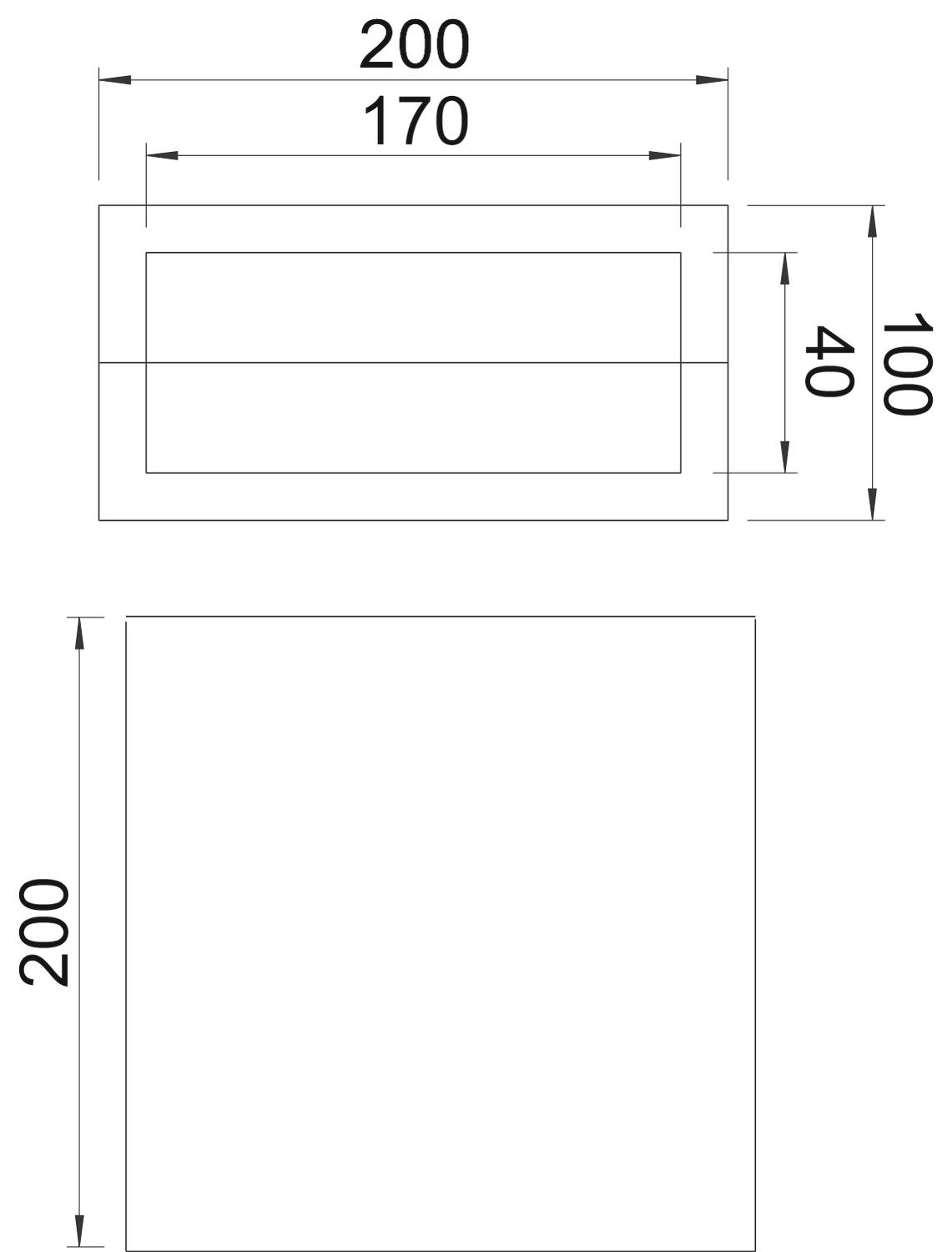

Dimensions

Height	100 mm
Length	200 mm

Width	200 mm

All types

All types

Types		Item no.	Quantity	SSU
FBA-F		7202660	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
PYROPLUG® screed filler	FBA-SP	7202322	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
