PYROPLUG® MagicBox, four-sided, interior height 110 mm 114 | 505

PYROPLUG® MagicBox, four-sided, interior height 110 mm

Item no. 7204136 | EAN 4012196811861

Item no. / Types

Internal height	114 mm

Internal width

Product description

Product description

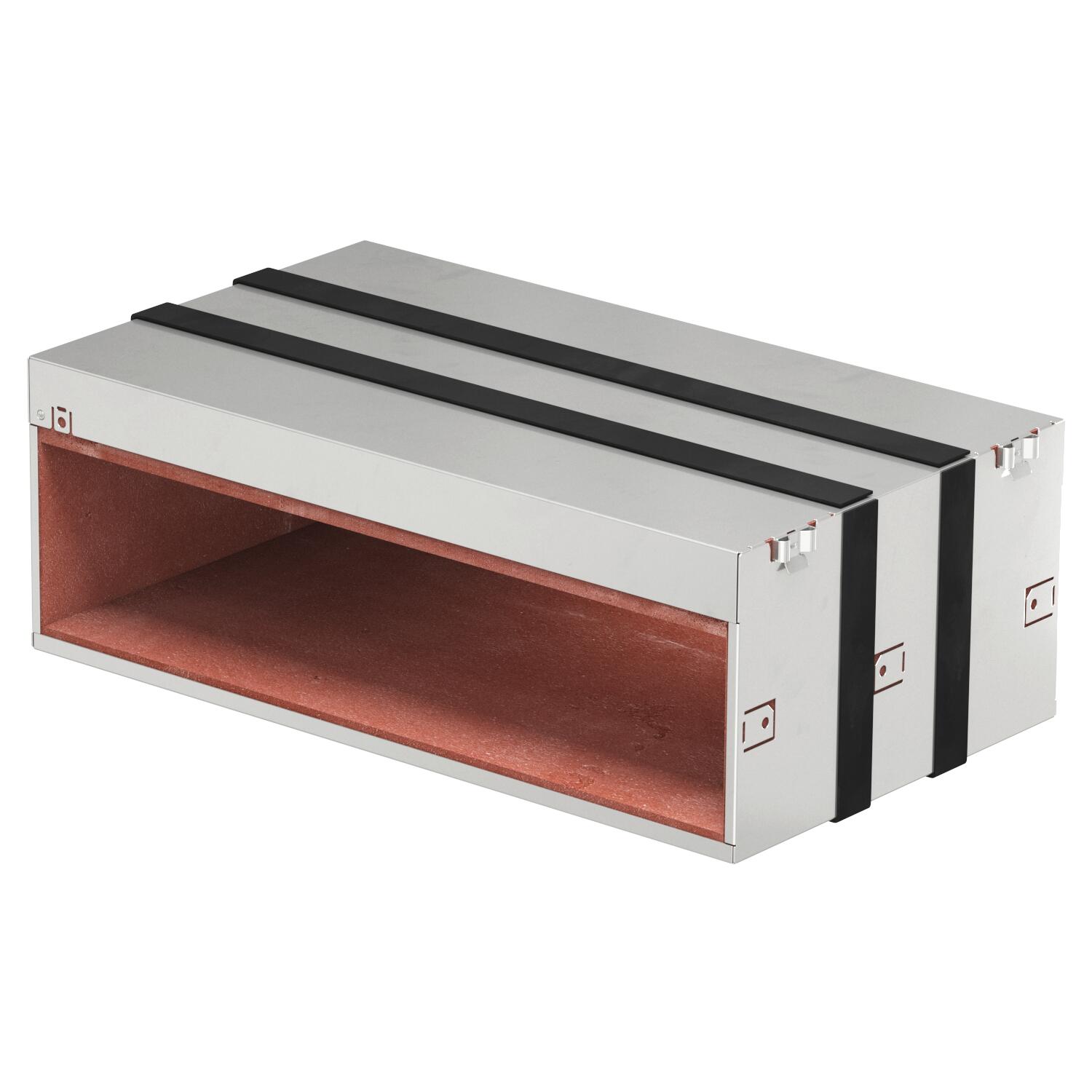

Fire protection box as an insulation system, made of two-part stainless steel housing with intumescent fire protection inlays. Can be used in walls and ceilings. Quick mounting through the releasable Magic connection. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

Technical data

Accessories required	yes
Colour	stainless steel

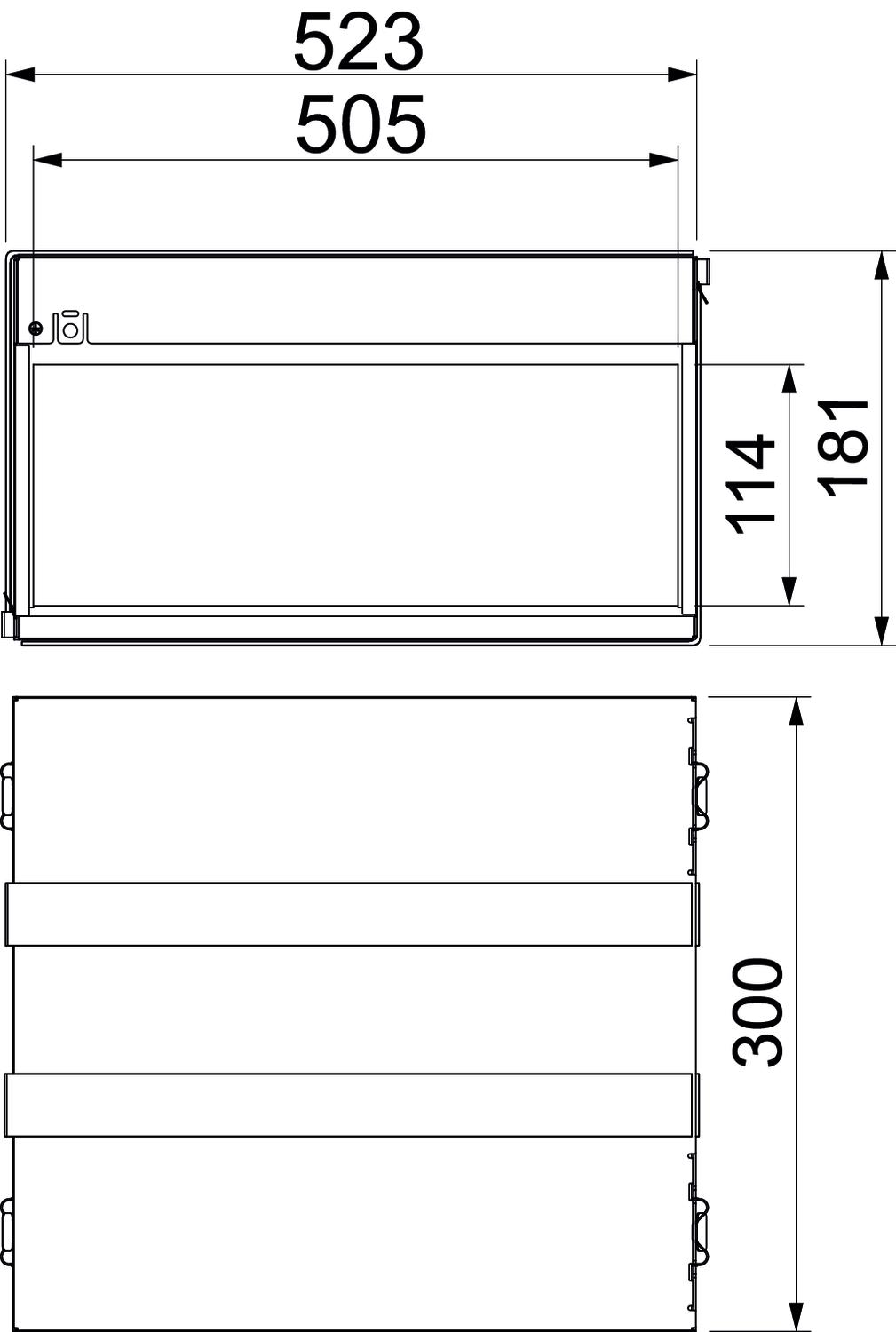

Dimension	300x523x181
Dimension d	505 mm
Dimension d min.	523 mm
Fire protection version	Box body
Height	181 mm

Internal height	114 mm
Internal width	505 mm
Length	300 mm
Material	Stainless steel
Shape	Rectangular
Surface	Bright, treated
Width	523 mm

All types

All types

Types	Internal height	Internal width	Item no.	Quantity	SSU
PMB 110-4 A2	114 mm	105 mm	7204120	piece	1 piece
PMB 120-4 A2	114 mm	205 mm	7204124	piece	1 piece
PMB 130-4 A2	114 mm	305 mm	7204128	piece	1 piece
PMB 140-4 A2	114 mm	405 mm	7204132	piece	1 piece
PMB 150-4 A2	114 mm	505 mm	7204136	piece	1 piece
PMB 160-4 A2	114 mm	605 mm	7204140	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
