PYROPLUG® MagicBox, three-sided, interior height 110 mm 115 | 205

PYROPLUG® MagicBox, three-sided, interior height 110 mm

Item no. 7204154 | EAN 4012196811915

Item no. / Types

Internal height	115 mm

Internal width

Product description

Product description

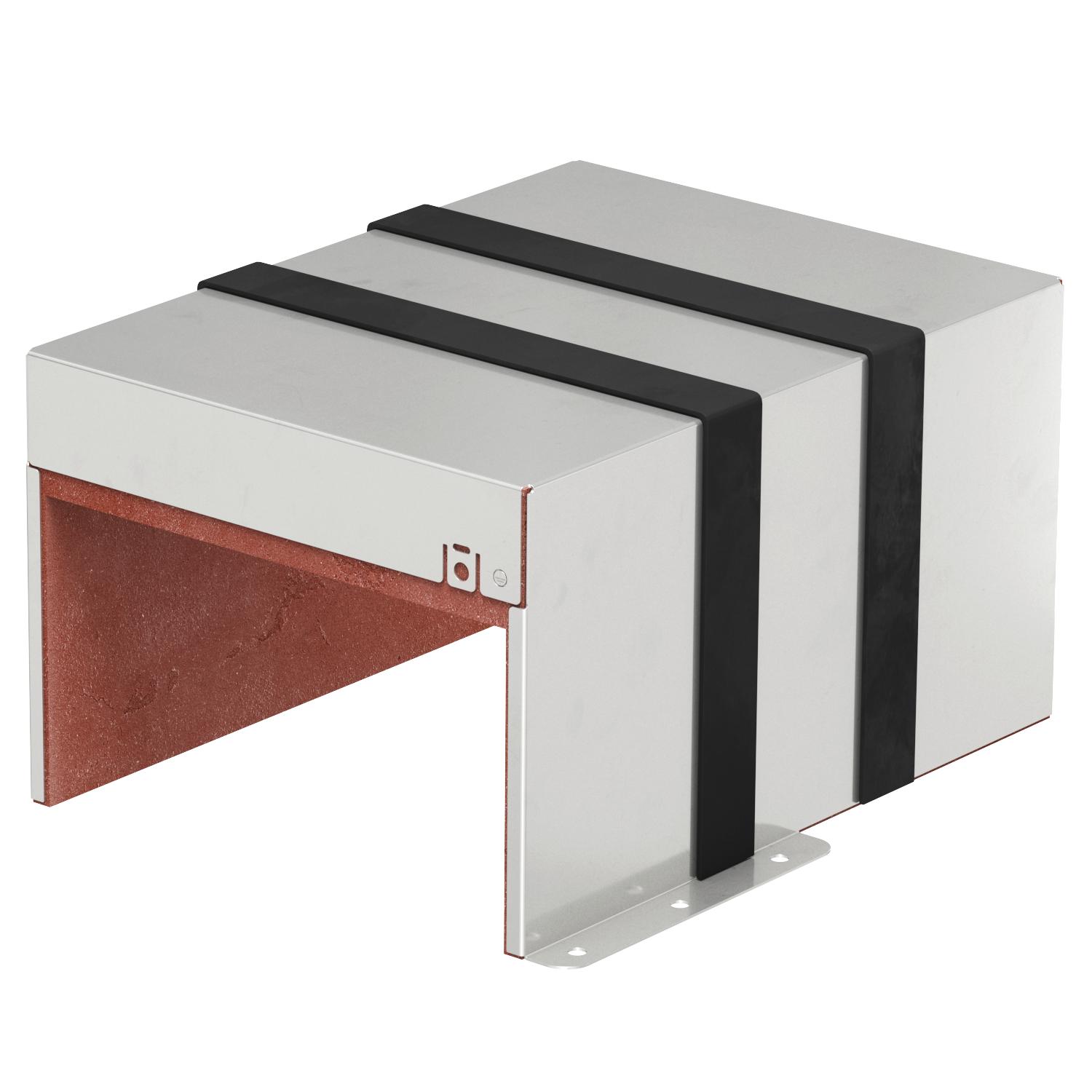

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

Technical data

Accessories required	yes

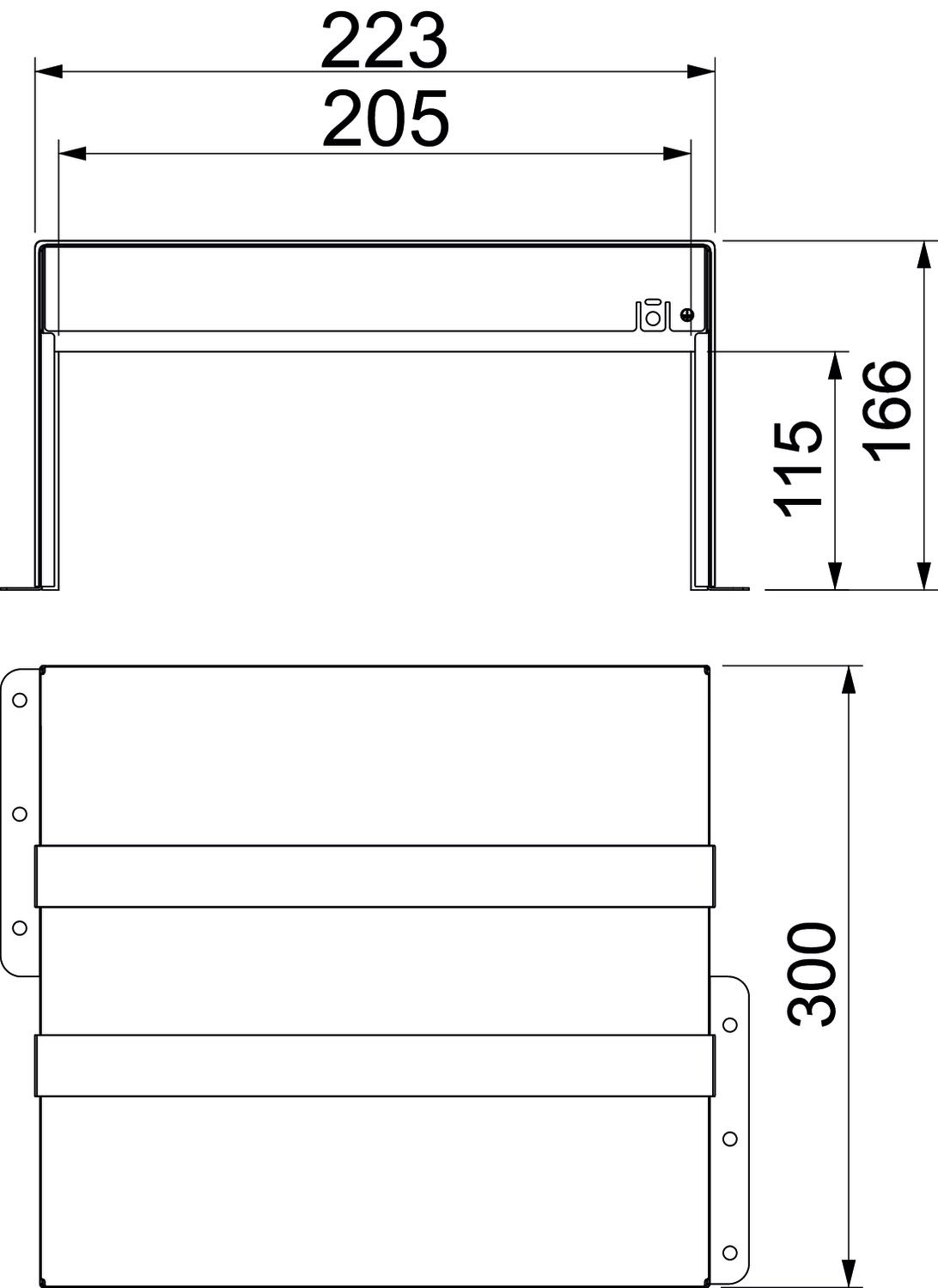

Dimension	300x223x166
Dimension d	205 mm
Dimension d min.	223 mm
Fire protection version	Box body
Height	166 mm
Internal height	115 mm

Internal width	205 mm
Length	300 mm
Material	Stainless steel
Shape	Rectangular
Surface	Bright, treated
Width	223 mm

All types

All types

Types	Internal height	Internal width	Item no.	Quantity	SSU
PMB 110-3 A2	115 mm	105 mm	7204150	piece	1 piece
PMB 120-3 A2	115 mm	205 mm	7204154	piece	1 piece
PMB 130-3 A2	115 mm	305 mm	7204158	piece	1 piece
PMB 140-3 A2	115 mm	405 mm	7204162	piece	1 piece
PMB 150-3 A2	115 mm	505 mm	7204166	piece	1 piece
PMB 160-3 A2	115 mm	605 mm	7204170	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
