PYROPLUG® MagicBox, three-sided, interior height 60 mm 65 | 405

PYROPLUG® MagicBox, three-sided, interior height 60 mm

Item no. 7204042 | EAN 4012196812080

Item no. / Types

Internal height	65 mm

Internal width

Product description

Product description

Fire protection box as insulation system, made of single-part stainless steel housing with intumescent fire protection inlays. Can be used in walls, on raw floors, beneath system floors and as insulation of rising sections in ceilings. Interior can be fully assigned with installations. For interior application. Closure of the residual openings with PYROSIT® NG fire protection foam, particularly simple for difficult geometries. CE-labelled construction product with general type approval. Fire resistance class EI90 (fire-resistant). Including graphite strip.

Technical data

Technical data

Accessories required	yes

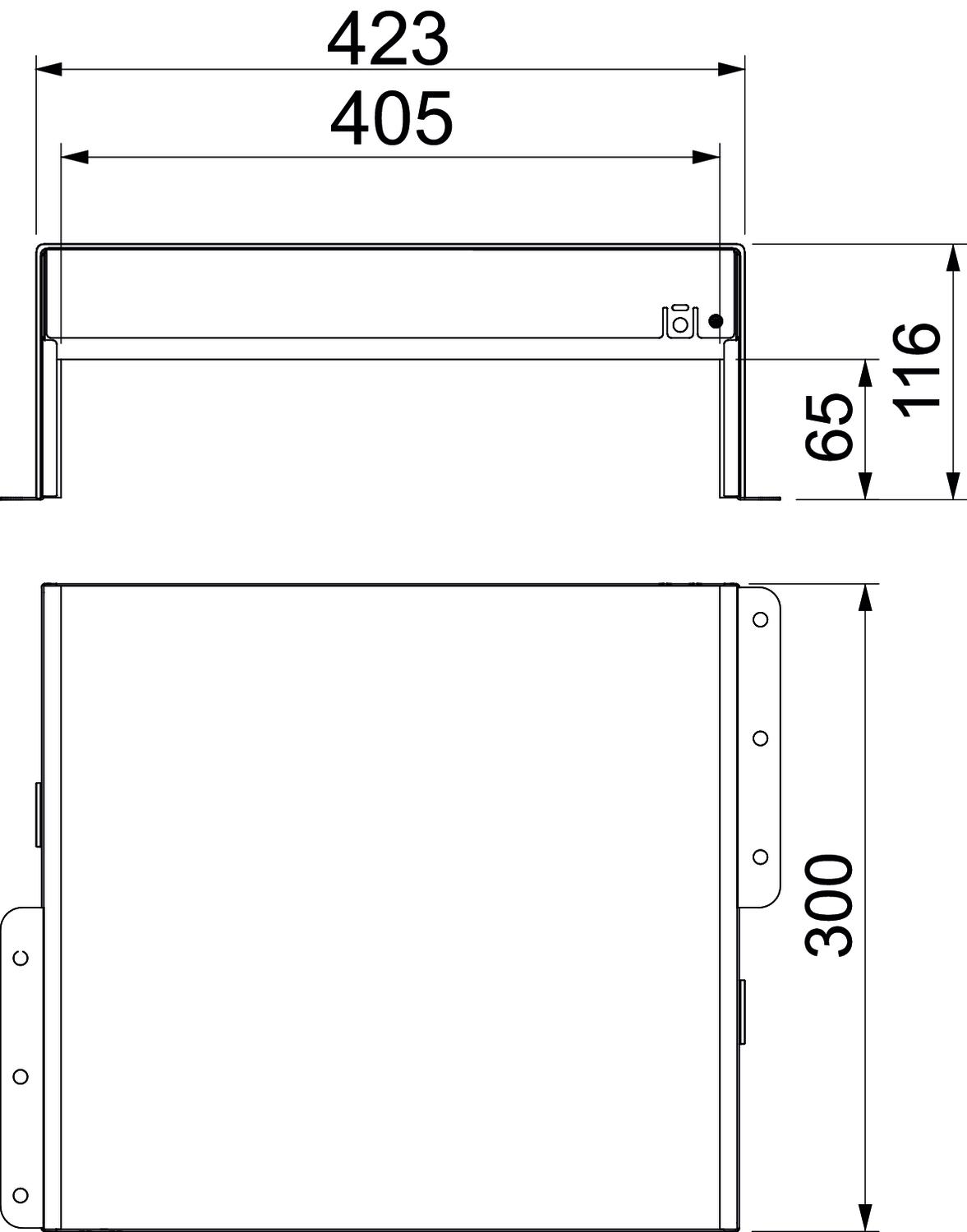

Dimension	300x423x116
Dimension d	405 mm
Dimension d min.	423 mm
Fire protection version	Box body
Height	116 mm
Internal height	65 mm

Internal width	405 mm
Length	300 mm
Material	Stainless steel
Shape	Rectangular
Surface	Bright, treated
Width	423 mm

All types

All types

Types	Internal height	Internal width	Item no.	Quantity	SSU
PMB 610-3 A2	65 mm	105 mm	7204030	piece	1 piece
PMB 620-3 A2	65 mm	205 mm	7204034	piece	1 piece
PMB 630-3 A2	65 mm	305 mm	7204038	piece	1 piece
PMB 640-3 A2	65 mm	405 mm	7204042	piece	1 piece
PMB 650-3 A2	65 mm	505 mm	7204046	piece	1 piece
PMB 660-3 A2	65 mm	605 mm	7204050	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
