- Product description
-
Product description

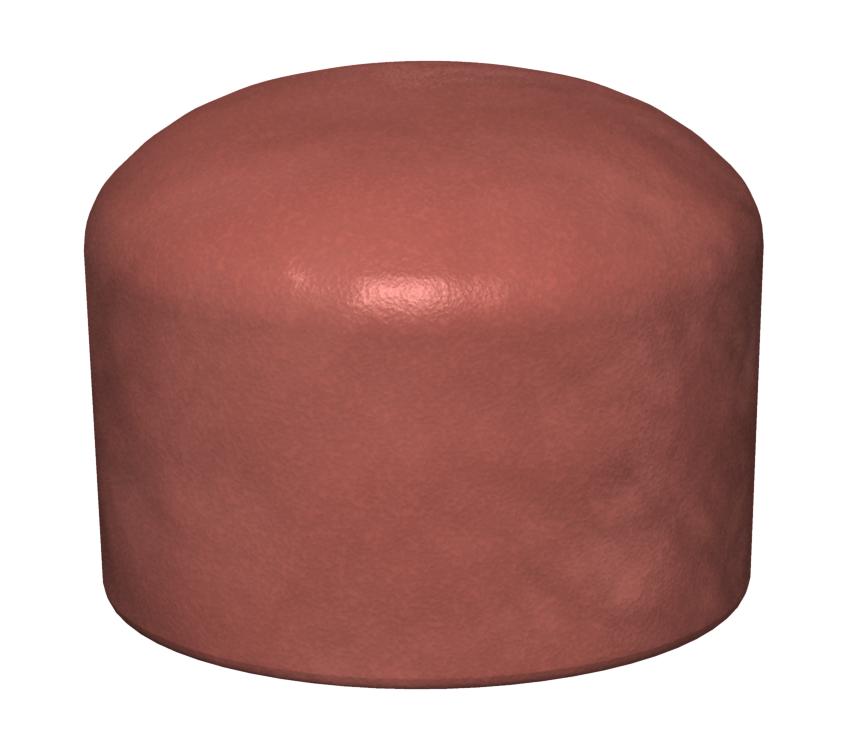

Plug for cable insulation.
Protect the FBA plugs against water in order to guarantee safe foaming in case of fire.
-
- Technical data
-
Technical data
Accessories required yes Colour Brown Diameter 107 mm Dimension Ø107x70mm Fire protection version Foam plug For opening, max. 107 mm For opening, min. 97 mm Material Permanently elastic, closed-pore foam Shape Round Dimensions

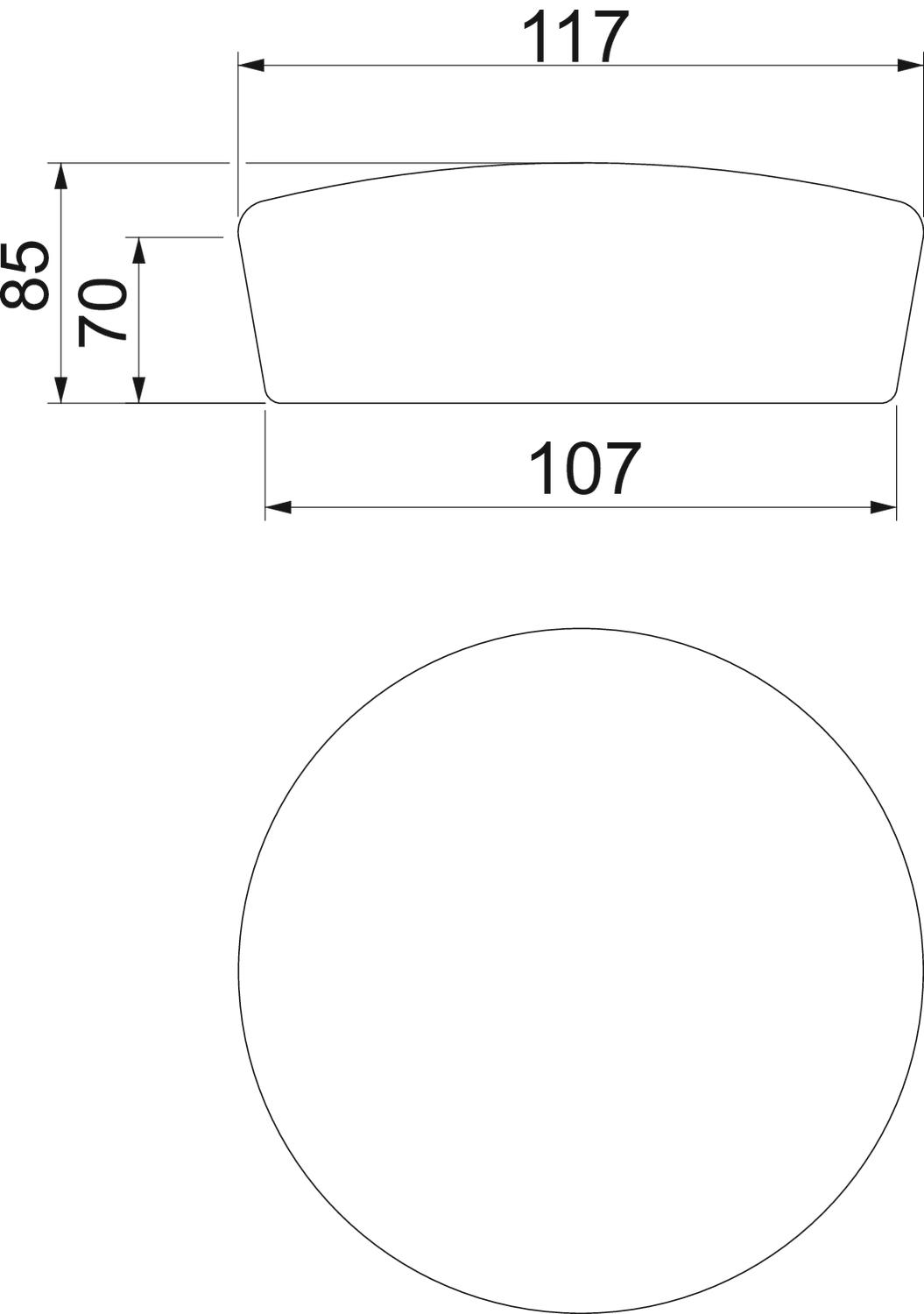

Dimension d 107 mm Dimension d min. 117 mm Height 70 mm - All types
-
All types
- Downloads
-
Data sheet FBA-SN107 / 7202561 , 0.14MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity FBA-SN107 / 7202561 , 0.12MB , pdfRoHS Declaration of conformity FBA-SN107 / 7202561 , 0.12MB , pdfApproval certificate European technical approval ETA, PYROPLUG® Peg , 0.11MB , pdfSelection aid Selection aid, insulation , 0.25MB , pdfMounting instructions Mounting instructions, PYROPLUG® Peg foam plug , 0.12MB , pdfSafety data sheet Safety data sheet, PYROPLUG® fire insulation , 0.05MB , pdf
