PYROPLUG® Peg plugs

Item no. / Types

Dimension d

Dimension d min.

For opening, min.

For opening, max.

Product description

Product description

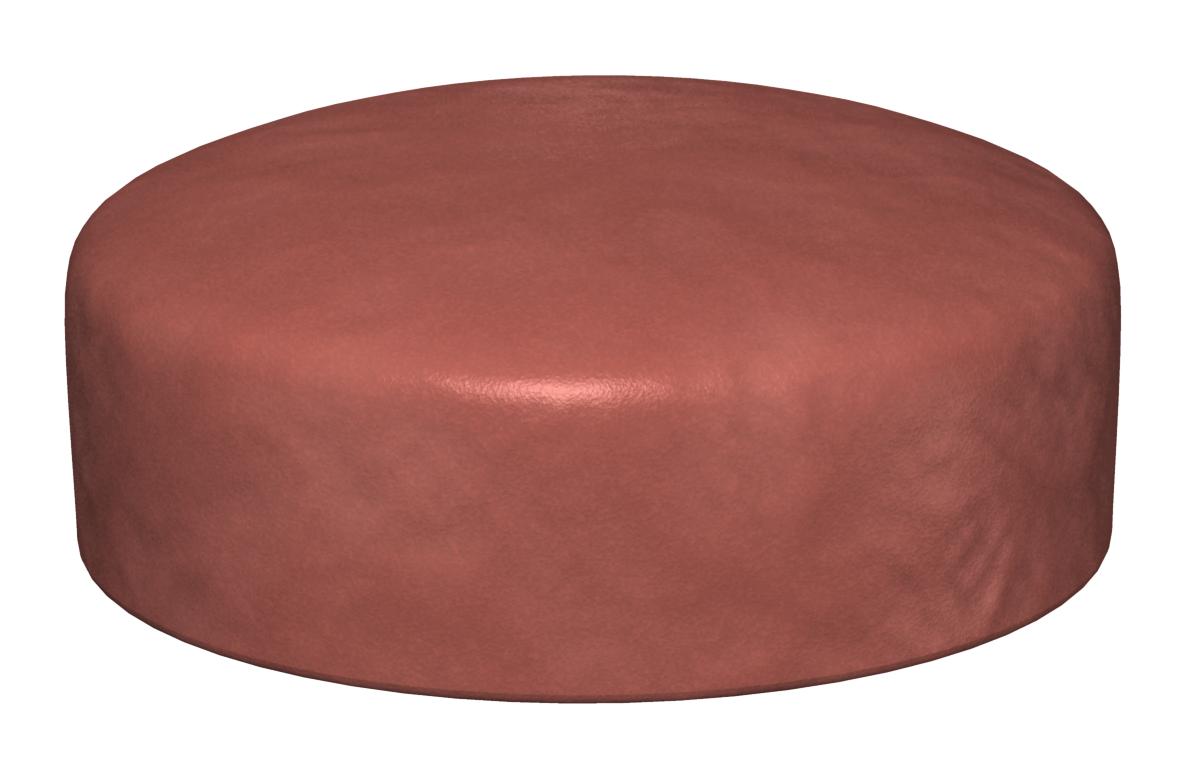

Plug for cable insulation.

Protect the FBA plugs against water in order to guarantee safe foaming in case of fire.

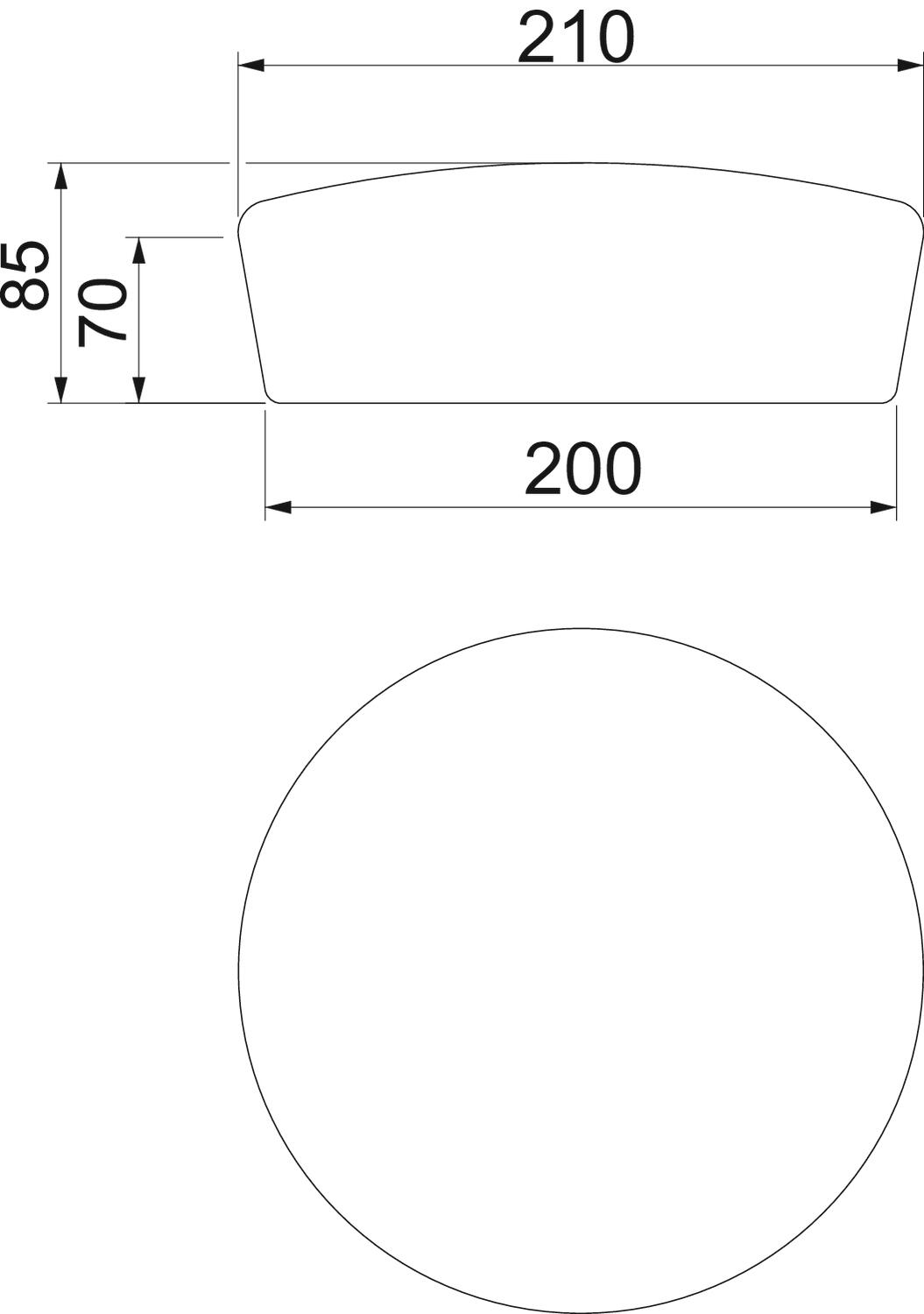

Technical data

Fire protection version	Foam plug
For opening, max.	200 mm
For opening, min.	190 mm
Height	70 mm
Material	Permanently elastic, closed-pore foam
Shape	Round

All types

Types	Dimension d	Dimension d min.	For opening, min.	For opening, max.	Item no.	Quantity	SSU
FBA-SN65	65 mm	75 mm	55 mm	65 mm	7202553	piece	4 piece
FBA-SN78	78 mm	87 mm	68 mm	78 mm	7202557	piece	4 piece
FBA-SN107	107 mm	117 mm	97 mm	107 mm	7202561	piece	4 piece
FBA-SN122	122 mm	132 mm	112 mm	122 mm	7202565	piece	4 piece
FBA-SN134	134 mm	144 mm	124 mm	134 mm	7202569	piece	4 piece
FBA-SN165	165 mm	175 mm	155 mm	165 mm	7202573	piece	2 piece
FBA-SN200	200 mm	210 mm	190 mm	200 mm	7202577	piece	2 piece
FBA-SN250	250 mm	260 mm	240 mm	250 mm	7202581	piece	2 piece

Accessories

Products	Types	Item no.	Quantity	SSU
PYROPLUG® screed filler	FBA-SP	7202322	piece	1 piece
Calcium silicate plate	KSI-P1	7202283	piece	1 piece
Calcium silicate plate	KSI-P2	7202904	piece	1 piece
Calcium silicate plate	KSI-P3	7202912	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece
