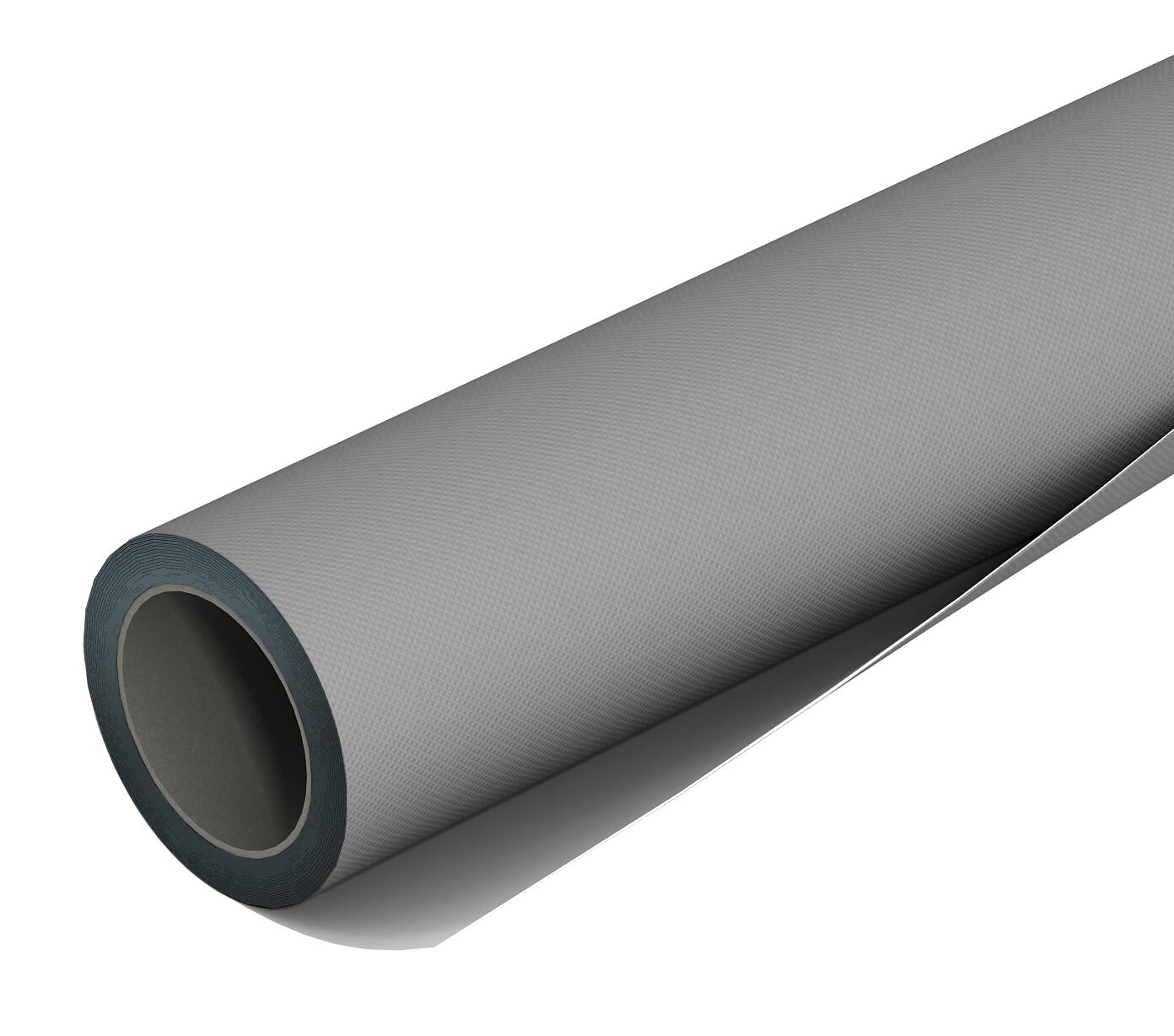

PYROWRAP® Wet - Cable bandage for indoor areas and wet rooms 10000 | 1100

PYROWRAP® Wet - Cable bandage for indoor areas and wet rooms

Item no. 7203170 | EAN 4012196475513

Item no. / Types	7203170 / FSB-WLS

Length	10000 mm

Width	1100 mm

Product description

Product description

Fire protection jacketing made of flexible mesh with fire protection coating to prevent fire spreading via cables and cable support systems. If there is a fire, the bandage only creates very little smoke, and is thus approved by the MBO building regulations as a measure for improved behaviour in case of fire in building classes 1 to 3. Hardly-flammable substance, according to EN 13501-1 - Class C-s2, d0). External side grey, internal side light grey. Can be moist wiped, use in interiors and wet rooms. One roll contains 11 m², nominal thickness 0.7 mm.

Technical data

Technical data

Colour	Grey-white
Delivery form	Roll

Dimension	1100x10000
Material	Intumescent material

Dimensions

Length	10000 mm
Length	10 m

Width	1100 mm

All types

All types

Types	Length	Width	Item no.	Quantity	SSU
FSB-WLS	10000 mm	1100 mm	7203170	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Identification plate	KS-FSB DE	7203140	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Metal strip clips, narrow	MBS 015	7203100	piece	100 piece
Metal strip clips, narrow	MBS 030	7203102	piece	100 piece
Metal strip clips, narrow	MBS 045	7203104	piece	50 piece
Metal strip clips, narrow	MBS 061	7203106	piece	50 piece
Metal strip clips, wide	MBS 075	7203108	piece	25 piece
Metal strip clips, wide	MBS 100	7203110	piece	25 piece
Metal strip clips, wide	MBS 120	7203112	piece	25 piece
Metal strip clips, wide	MBS 150	7203114	piece	25 piece
Pliers for metal strip clips	MBS-Z	7203120	piece	1 piece
Tightening strap for fastening of cable bandages	FSB-SB 100	7203131	piece	1 piece
Tightening strap lock	FSB-SV	7203132	piece	50 piece
Securing clip	FSB-SC	7203134	piece	50 piece
