Quick clip, aluminium
Item no. 2149920 | EAN 4012196409242
- Product description
-

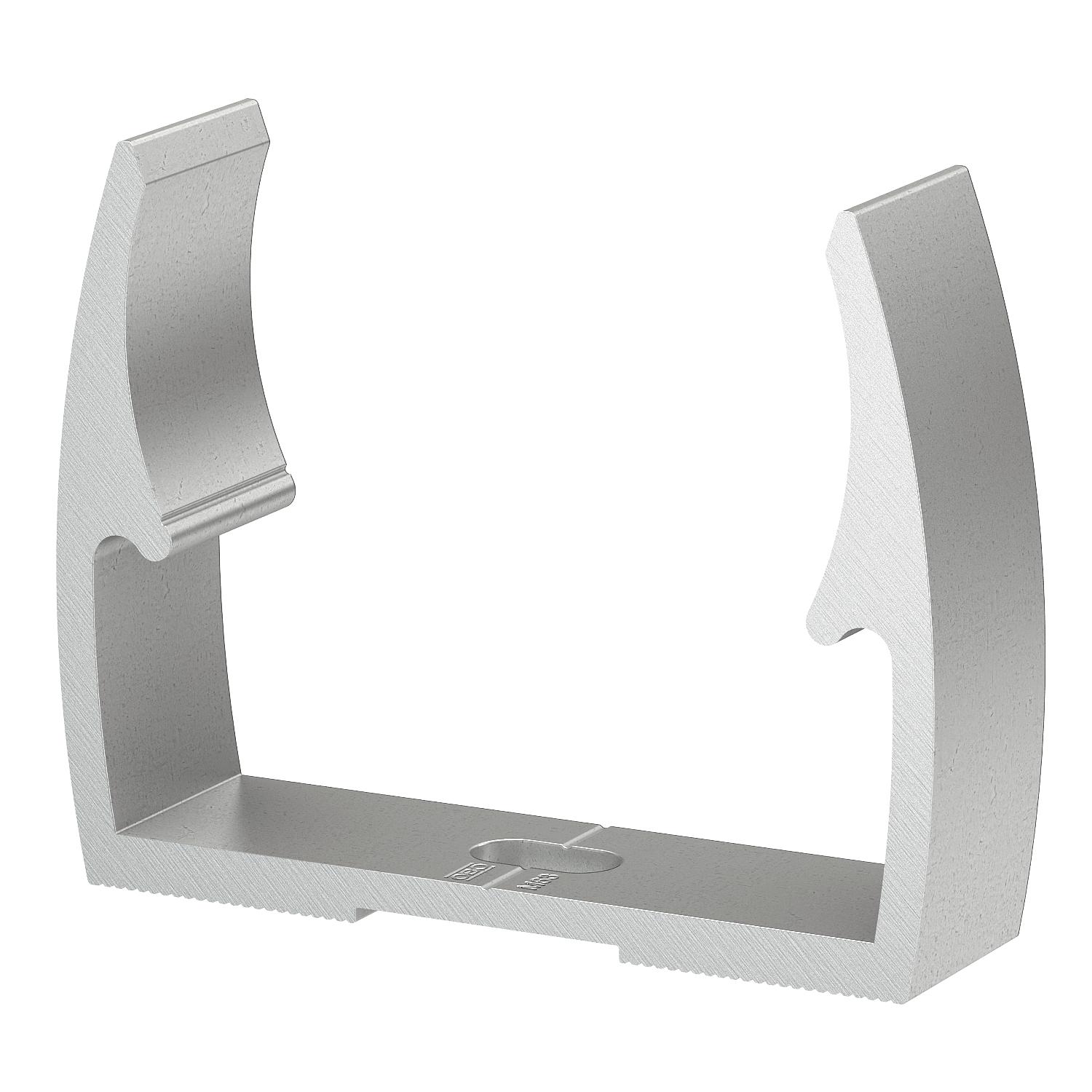

Product descriptionOBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
-
- Technical data
-
Technical data
Clamping range D, max. 20 mm Clamping range D, min. 20 mm Closed no Dimension M20 Dimension A 25 mm Dimension B 18 mm Dimension E 5,1 mm Dimension F 9,5 mm Dimension H 27,5 mm Dimension h 20 mm Expandable no Fastening type Screw hole Halogen-free no Material Aluminium Nominal size/text 20 Number of cables/pipes 1 UV-resistant yes With inlay no - All types
- Downloads
-
Data sheet ALQ M20 / 2149920 , 0.17MB , pdfEU declaration of conformity ALQ M20 / 2149920 , 0.10MB , pdfREACH Declaration of conformity ALQ M20 / 2149920 , 0.12MB , pdfRoHS Declaration of conformity ALQ M20 / 2149920 , 0.12MB , pdf
