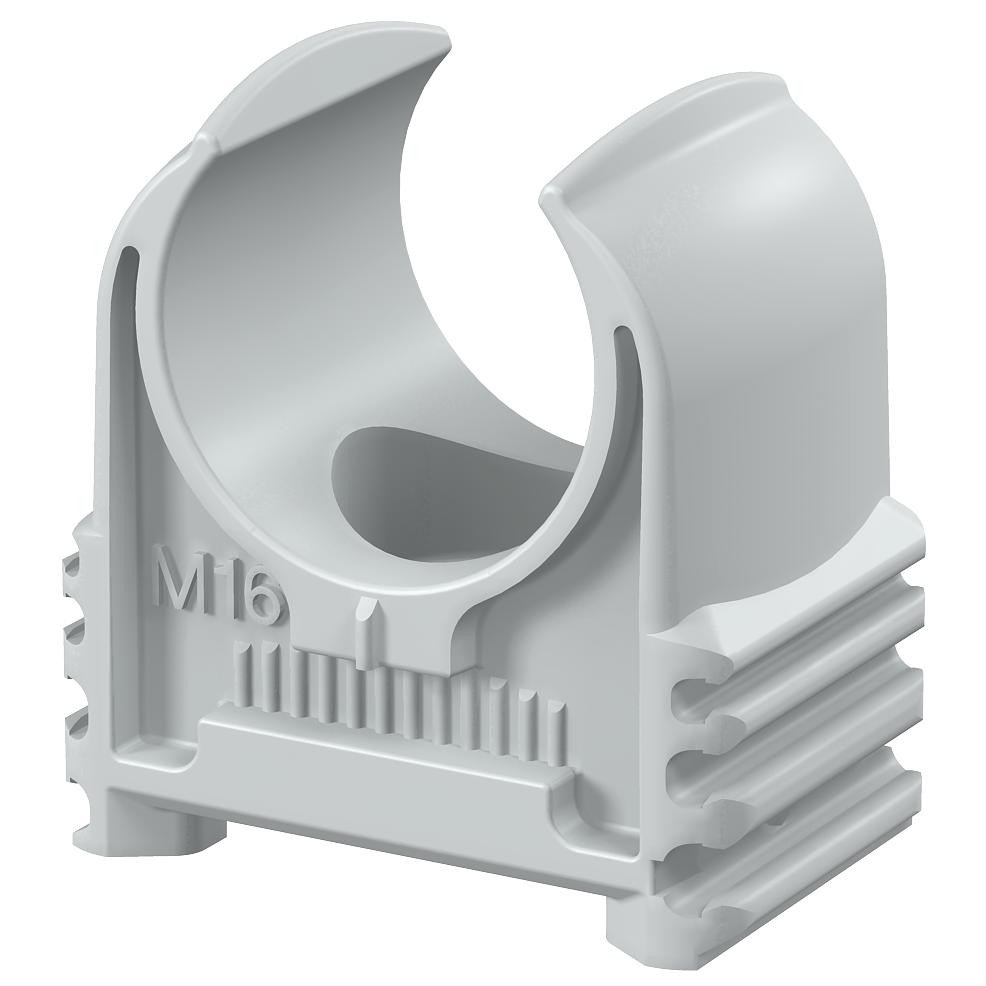

Quick clip, for push-fit anchors, light grey

Item no. 2149701 | EAN 4012195931911

Product description
Product description

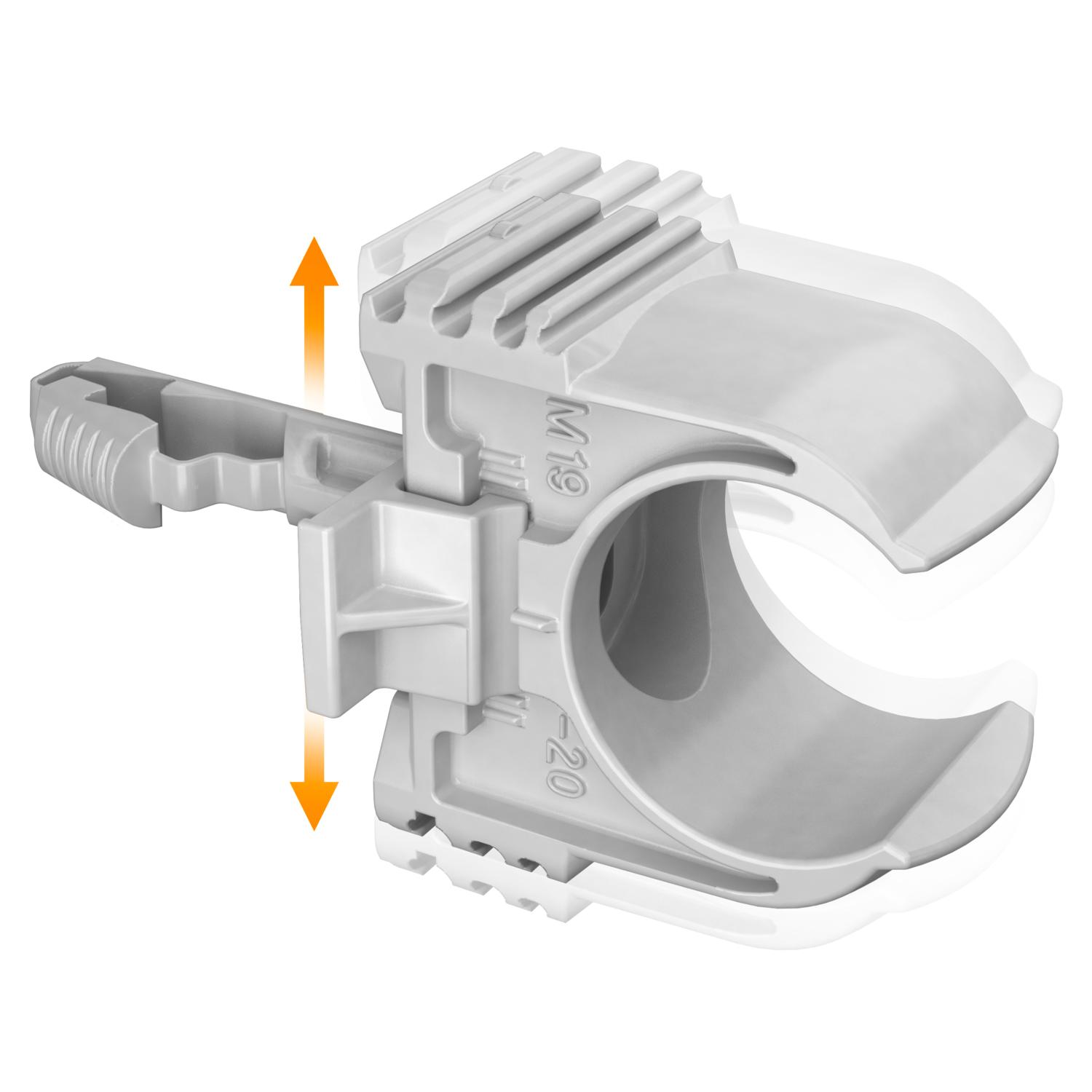

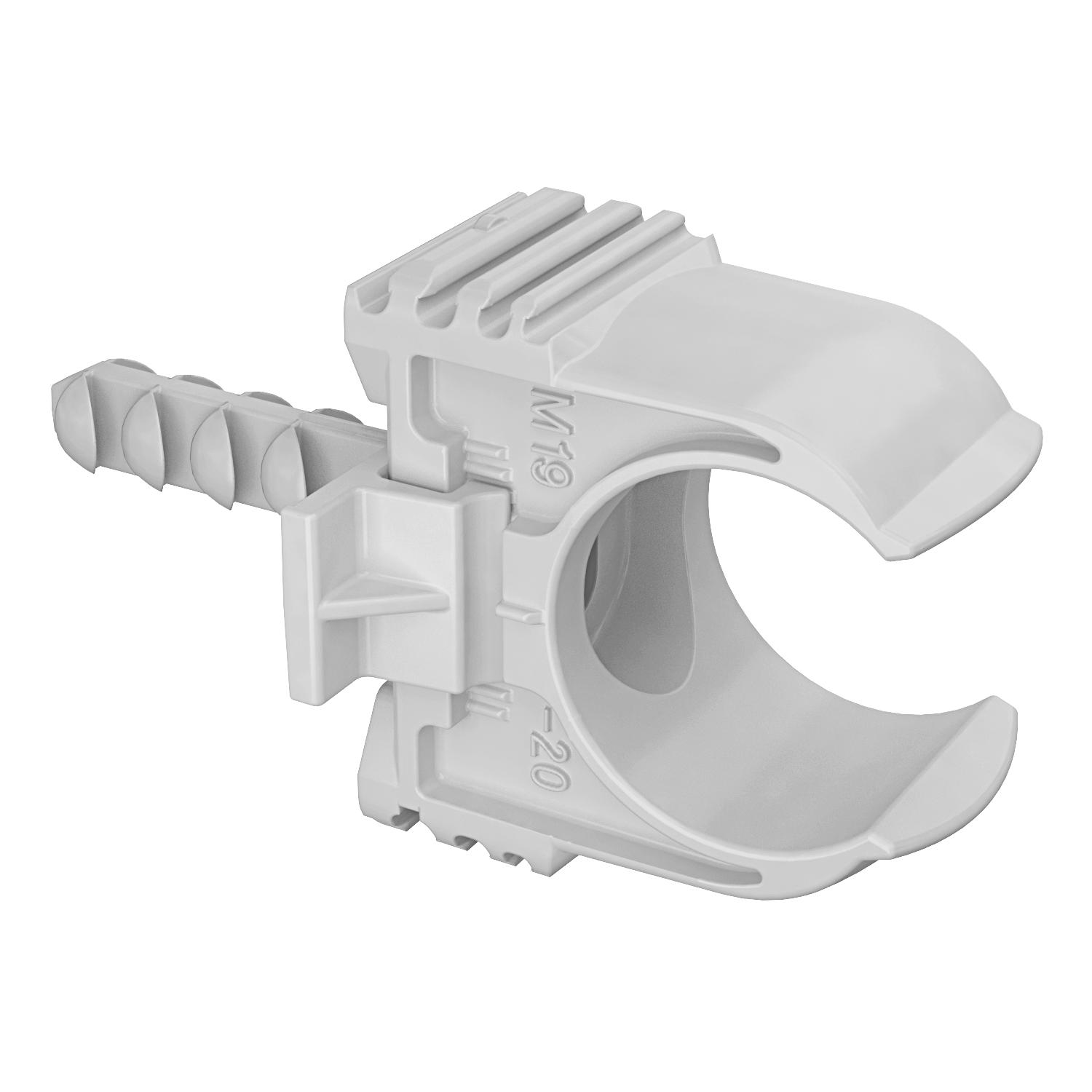

Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Clamping range D, min. 16 mm
Closed no
Colour Light grey; RAL 7035

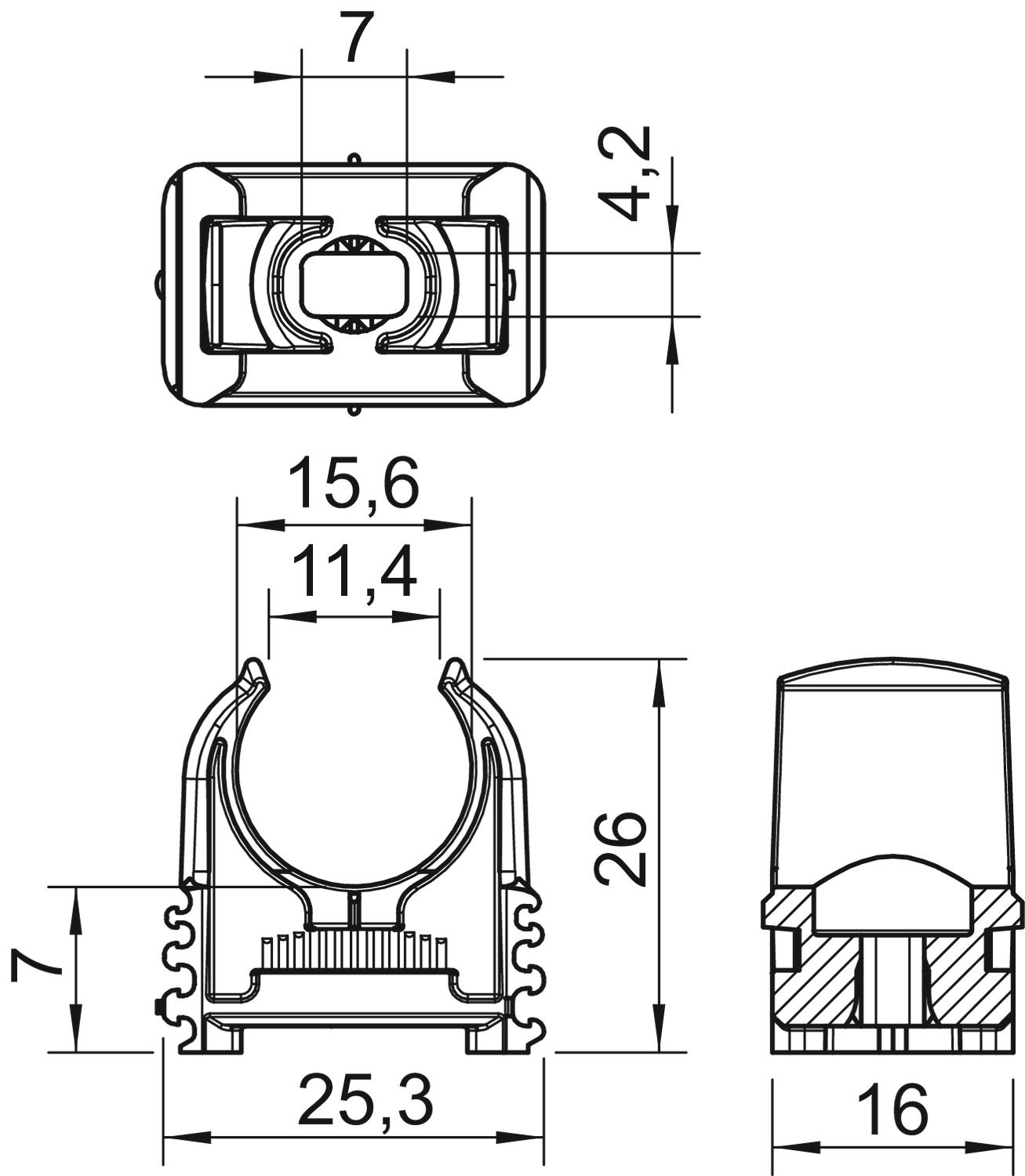

Dimension M16
Dimension A 25,3 mm
Dimension B 16 mm
Dimension C 11,4 mm
Dimension D 15,6 mm
Dimension E 7 mm
Dimension F 4,2 mm
Dimension h 7 mm
Dimension H 26 mm
Expandable yes
Fastening type Screw hole
Halogen-free yes
Material Acrylonitrile butadiene styrene
Nominal size/text M16
Number of cables/pipes 1
UV-resistant no
With inlay no
All types

All types

Types Nominal size/text Item no. Quantity SSU
2957 M16 M16 2149701
100 piece
2957 M19-20 M19-20 2149710
100 piece
