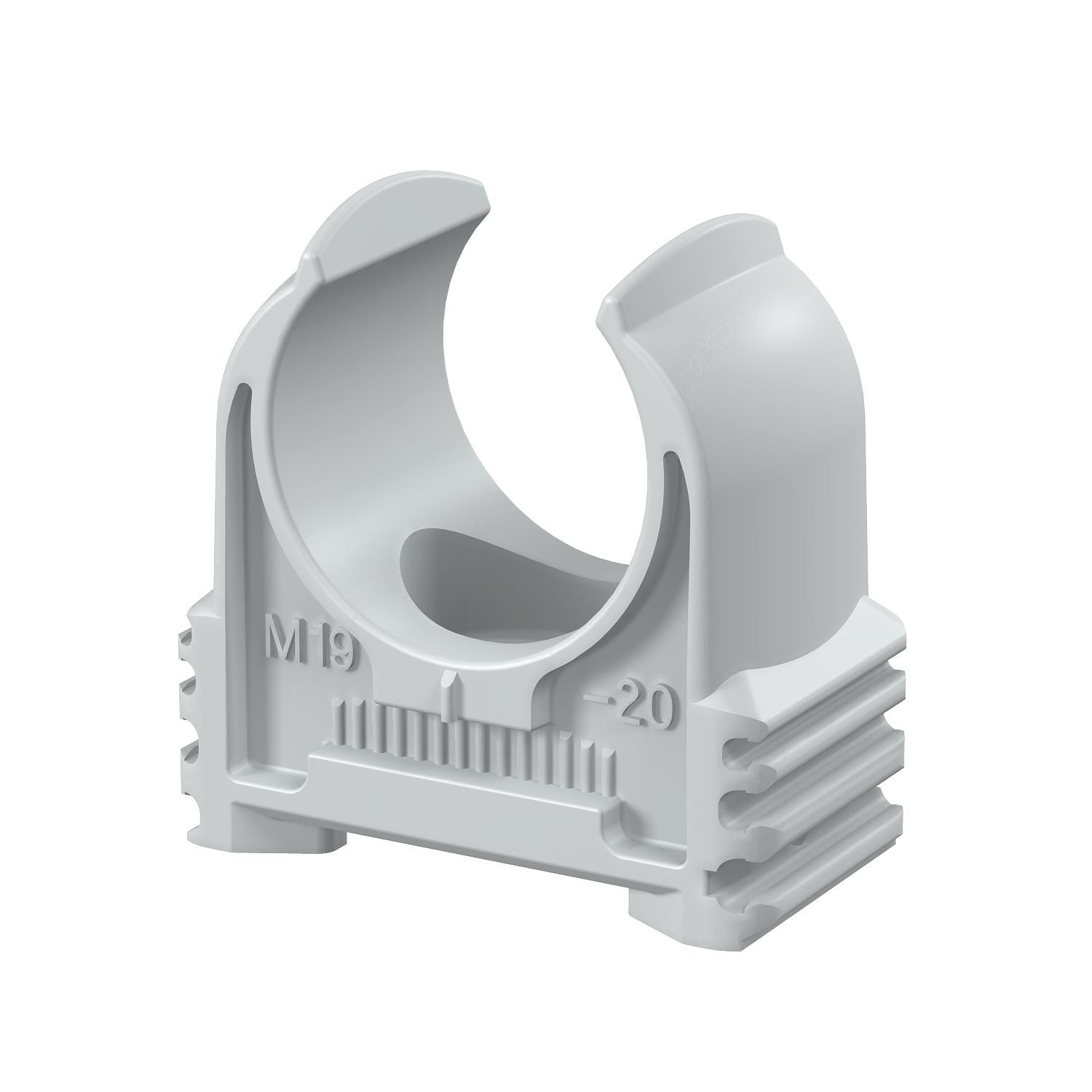

Quick clip, for push-fit anchors, light grey
Item no. 2149710 | EAN 4012195931928
- Product description
-

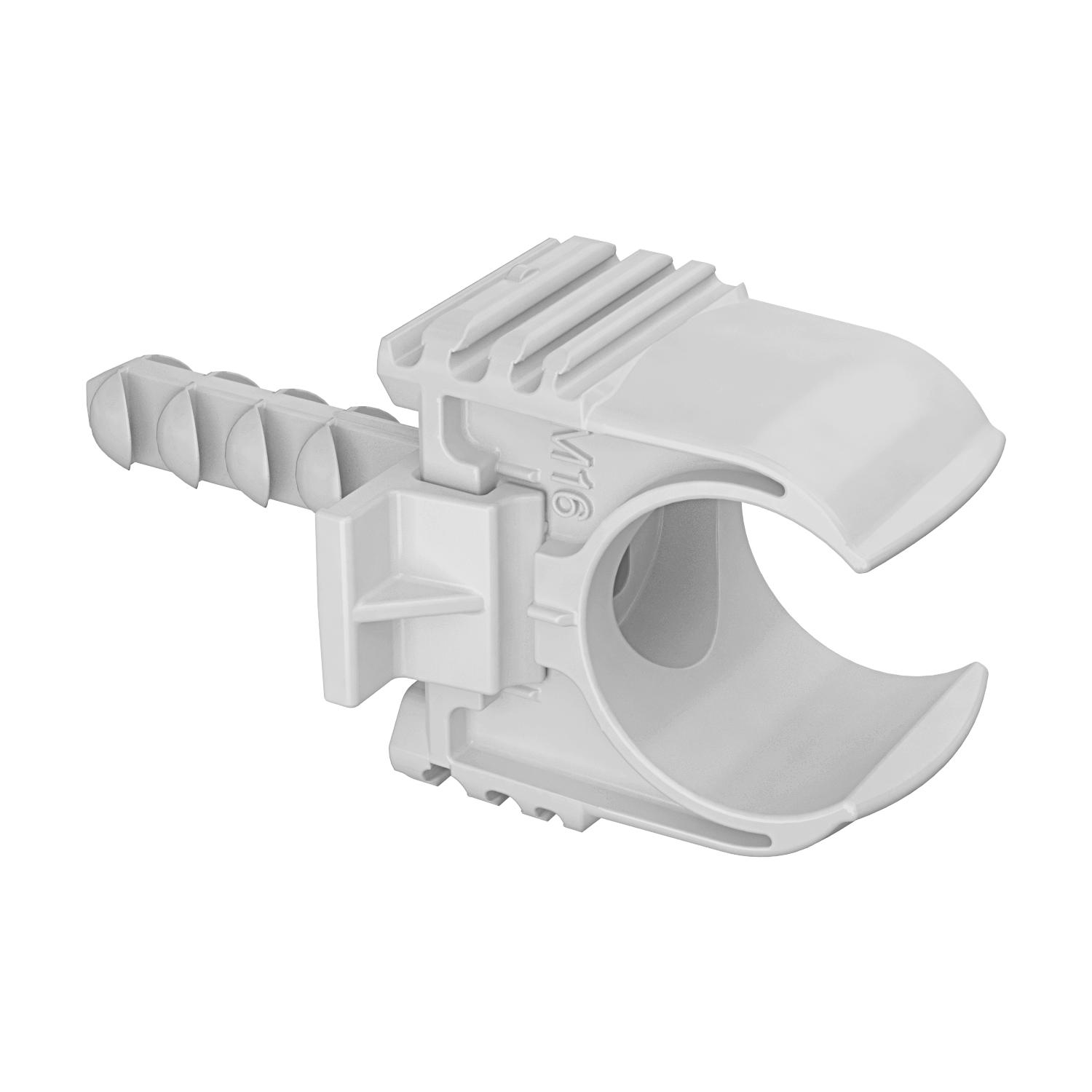

Product descriptionFlush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
-
- Technical data
-
Technical data

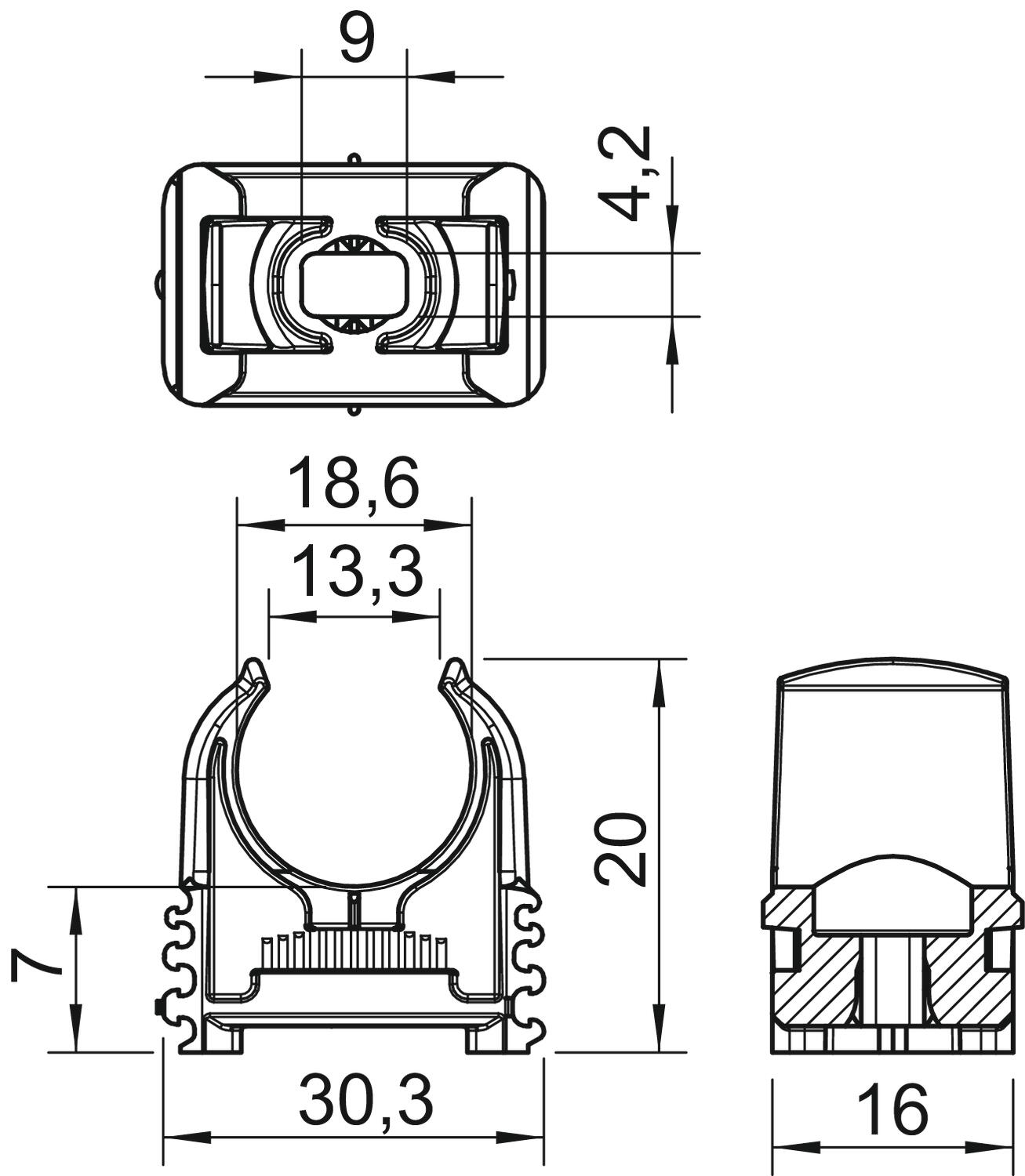

Clamping range D, max. 20 mm Clamping range D, min. 19 mm Closed no Colour Light grey; RAL 7035 Dimension M19-20 Dimension A 30,3 mm Dimension B 16 mm Dimension C 13,3 mm Dimension D 18,6 mm Dimension E 9 mm Dimension F 4,2 mm Dimension h 7 mm Dimension H 30 mm Expandable yes Fastening type Screw hole Halogen-free yes Material Acrylonitrile butadiene styrene Nominal size/text M19-20 Number of cables/pipes 1 UV-resistant no With inlay no - All types
- Downloads
-
Data sheet 2957 M19-20 / 2149710 , 0.22MB , pdfBrochure Quick Pipe , 1.41MB , pdfEU declaration of conformity 2957 M19-20 / 2149710 , 0.13MB , pdf
