Quick connector, upper part Rd 8–10 mm Rd 8-10

morepic-1

morepic-2

Quick connector, upper part Rd 8–10 mm

Item no. 5311503 | EAN 4012195737063

Item no. / Types	5311503 / 249 8-10 ST-OT

Fit	Rd 8-10 mm

Product description

Product description

• For round conductor fastening RD 8-10

• Suitable for M10 bolts

Technical data

Technical data

Dimension	40x40mm
Fit	Rd 8-10 mm

Material	Steel
Surface	Hot-dip galvanised

Dimensions

Dimension A	40 mm

All types

All types

Types	Fit	Item no.	Quantity	SSU
249 8-10 ST-OT	Rd 8-10 mm	5311503	piece	100 piece

Downloads

Data sheet 249 8-10 ST-OT / 5311503 , 0.18MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 249 8-10 ST-OT / 5311503 , 0.06MB , pdf

Download

REACH Declaration of conformity 249 8-10 ST-OT / 5311503 , 0.27MB , pdf

Download

RoHS Declaration of conformity 249 8-10 ST-OT / 5311503 , 0.12MB , pdf

Download

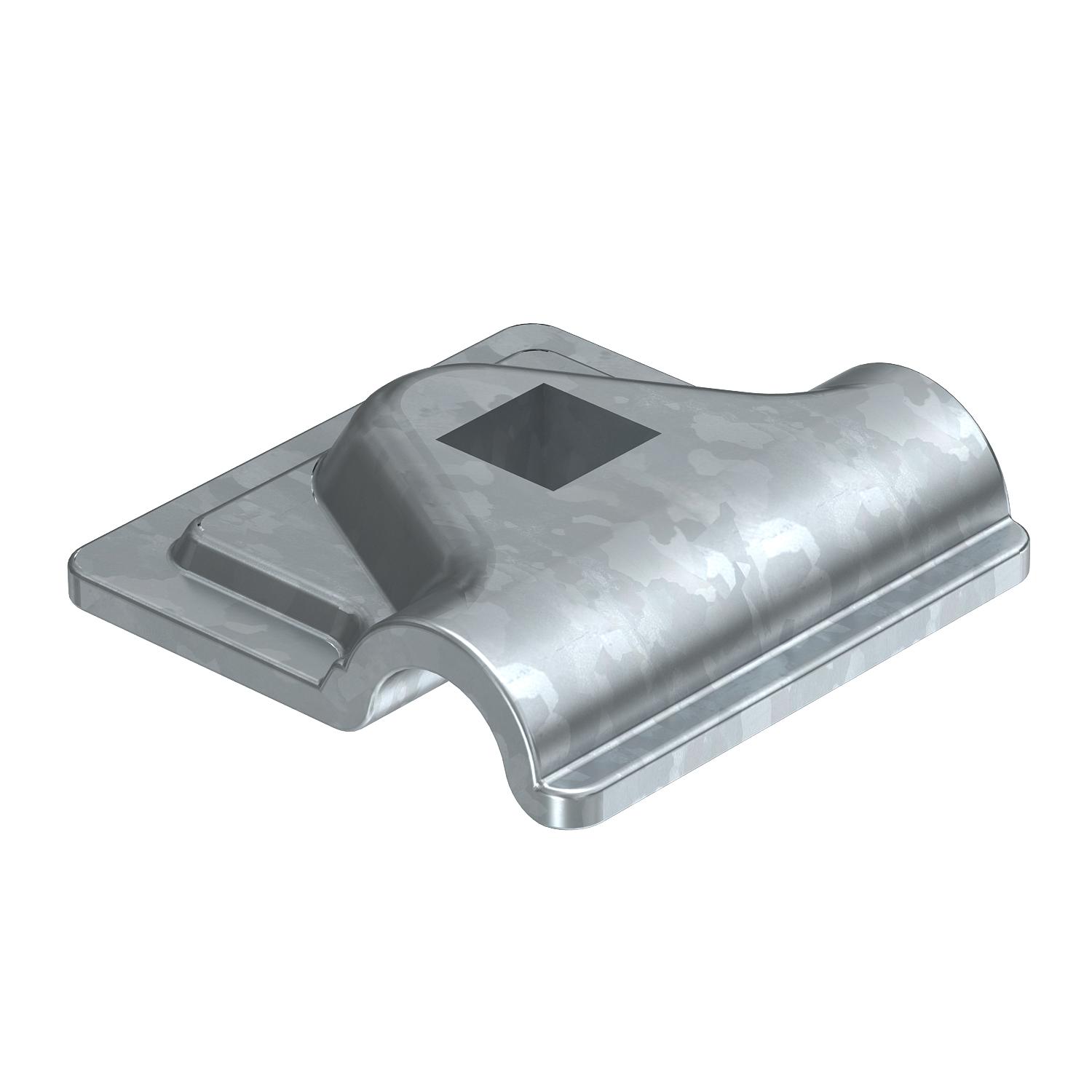

Product graphic 249 8-10 ST-OT / 5311503, 70.33 kB, jpg

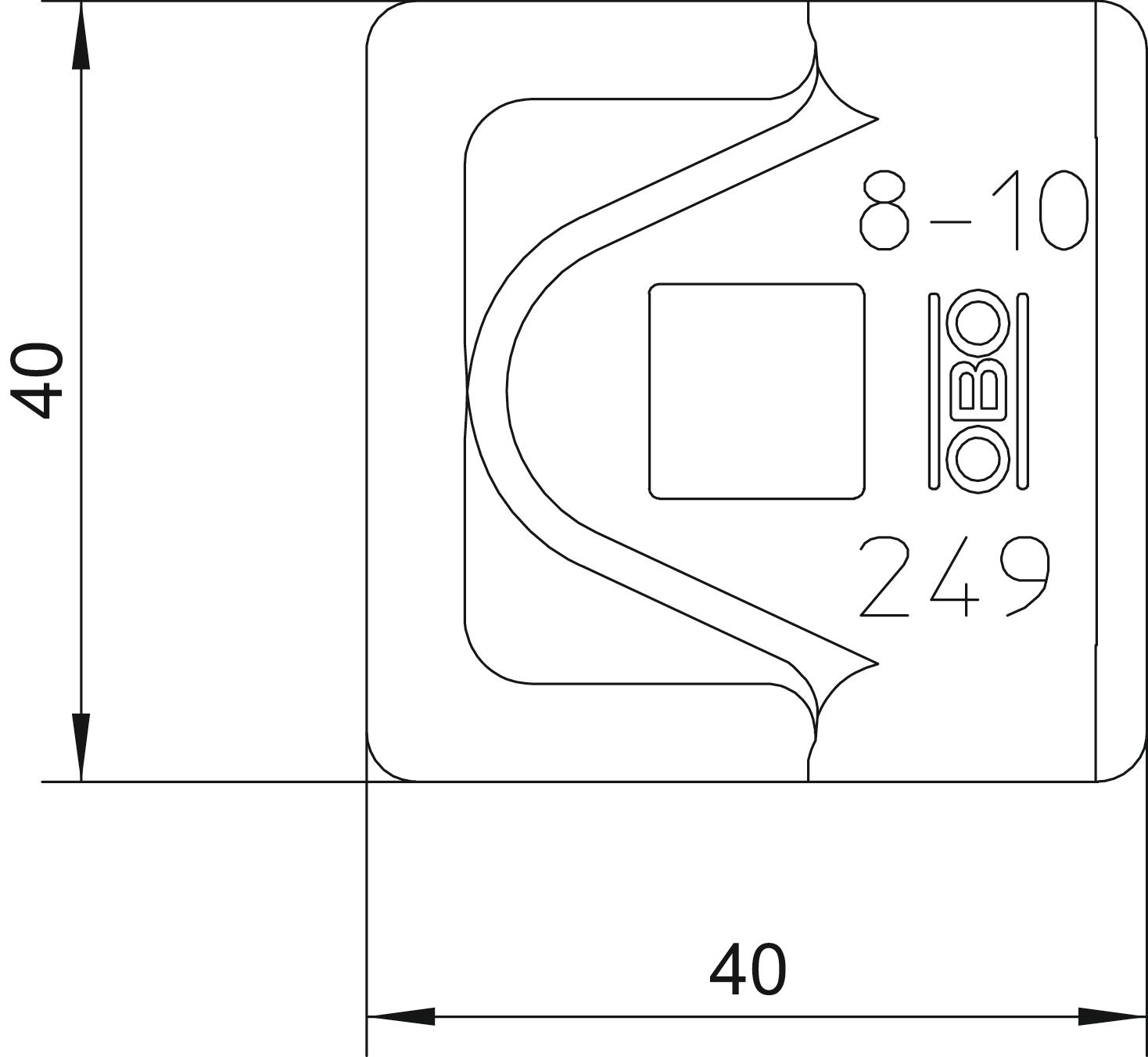

Scale drawing 249 8-10 ST-OT / 5311503, 73.79 kB, jpg

249 8-10 ST-OT / 5311503

Anschlussklemme Potentialausgleich Rd 8-10 mm.rfa, 460.00 kB
