Quick connector, upper part Rd 8–10 mm Rd 8-10

morepic-1

morepic-2

Quick connector, upper part Rd 8–10 mm

Item no. 5311585 | EAN 4012195466192

Item no. / Types	5311585 / 249 8-10 ALU-OT

Fit	Rd 8-10 mm

Product description

Product description

• For round conductor fastening Rd 8-10

• Suitable for M10 bolts

Technical data

Technical data

Dimension	44x44mm
Fit	Rd 8-10 mm

Material	Aluminium
Type of fastening screw	Miscellaneous

Dimensions

Dimension A	44 mm

All types

All types

Types	Fit	Item no.	Quantity	SSU
249 8-10 ALU-OT	Rd 8-10 mm	5311585	piece	100 piece

Downloads

Data sheet 249 8-10 ALU-OT / 5311585 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Brochure Lösungen für Photovoltaikanlagen , 11.37MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 249 8-10 ALU-OT / 5311585 , 0.06MB , pdf

Download

REACH Declaration of conformity 249 8-10 ALU-OT / 5311585 , 0.12MB , pdf

Download

RoHS Declaration of conformity 249 8-10 ALU-OT / 5311585 , 0.12MB , pdf

Download

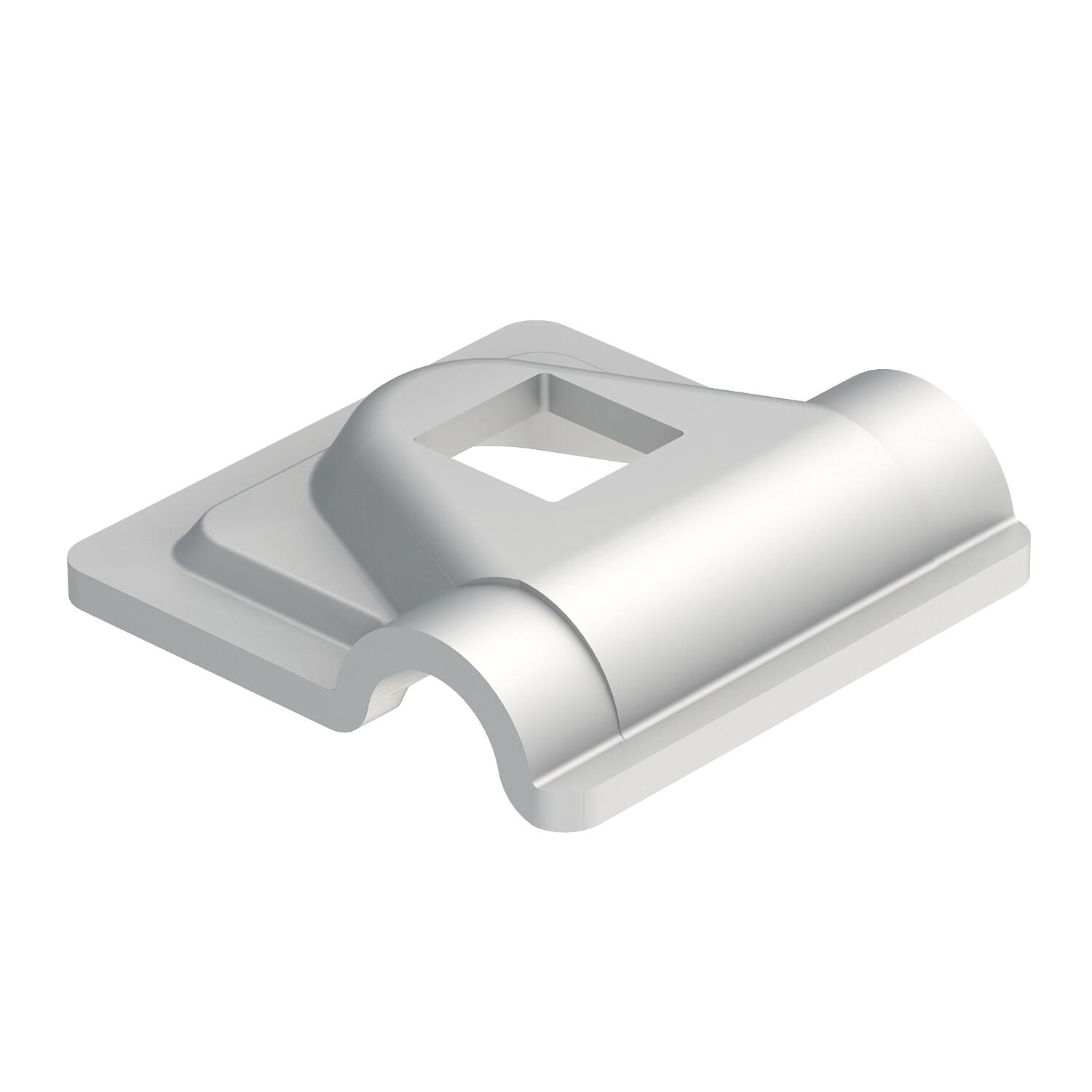

Product graphic 249 8-10 ALU-OT / 5311585, 42.45 kB, jpg

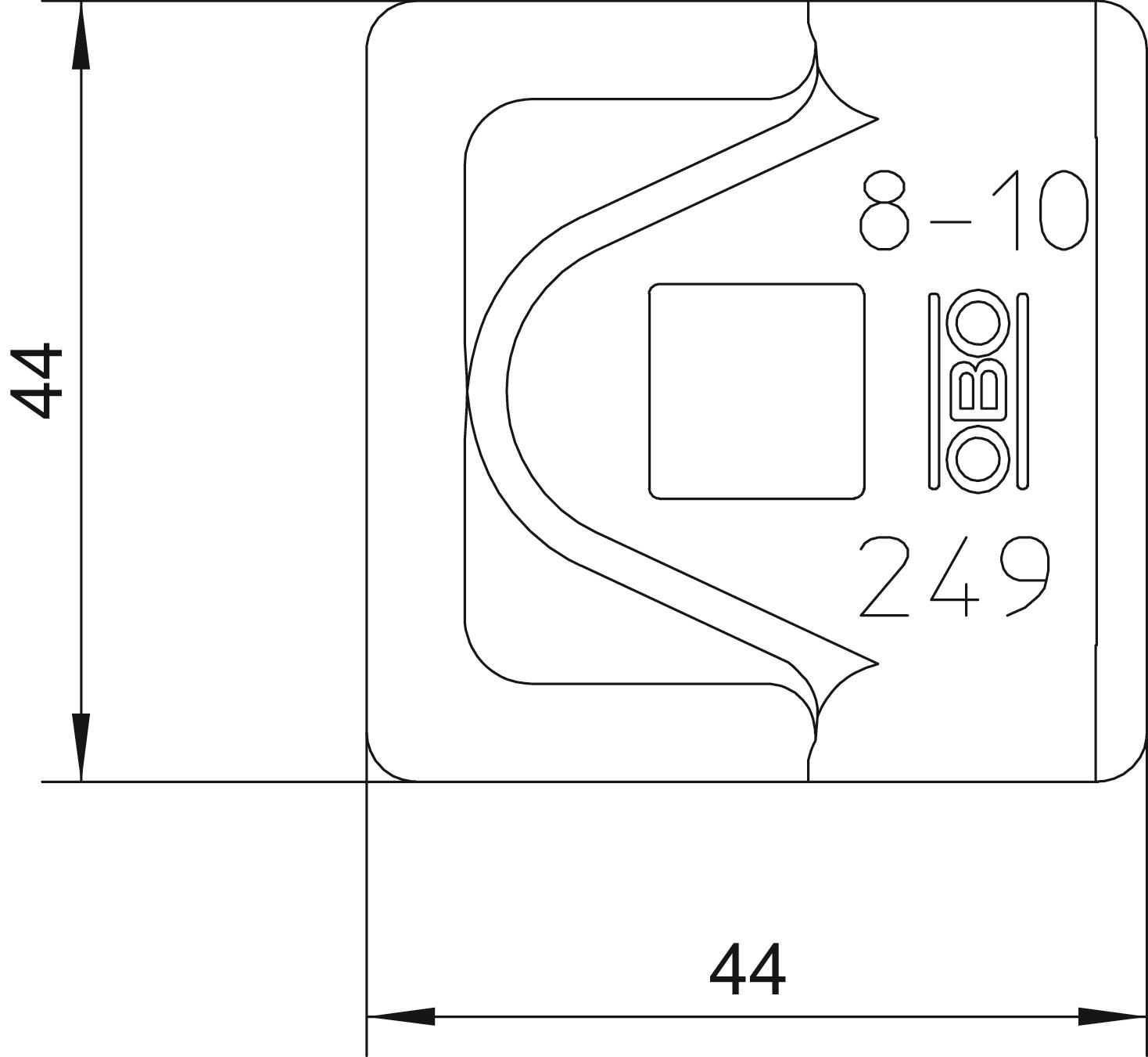

Scale drawing 249 8-10 ALU-OT / 5311585, 73.24 kB, jpg

249 8-10 ALU-OT / 5311585

Anschlussklemme Potentialausgleich Rd 8-10 mm.rfa, 460.00 kB
