- Product description
-
Product description

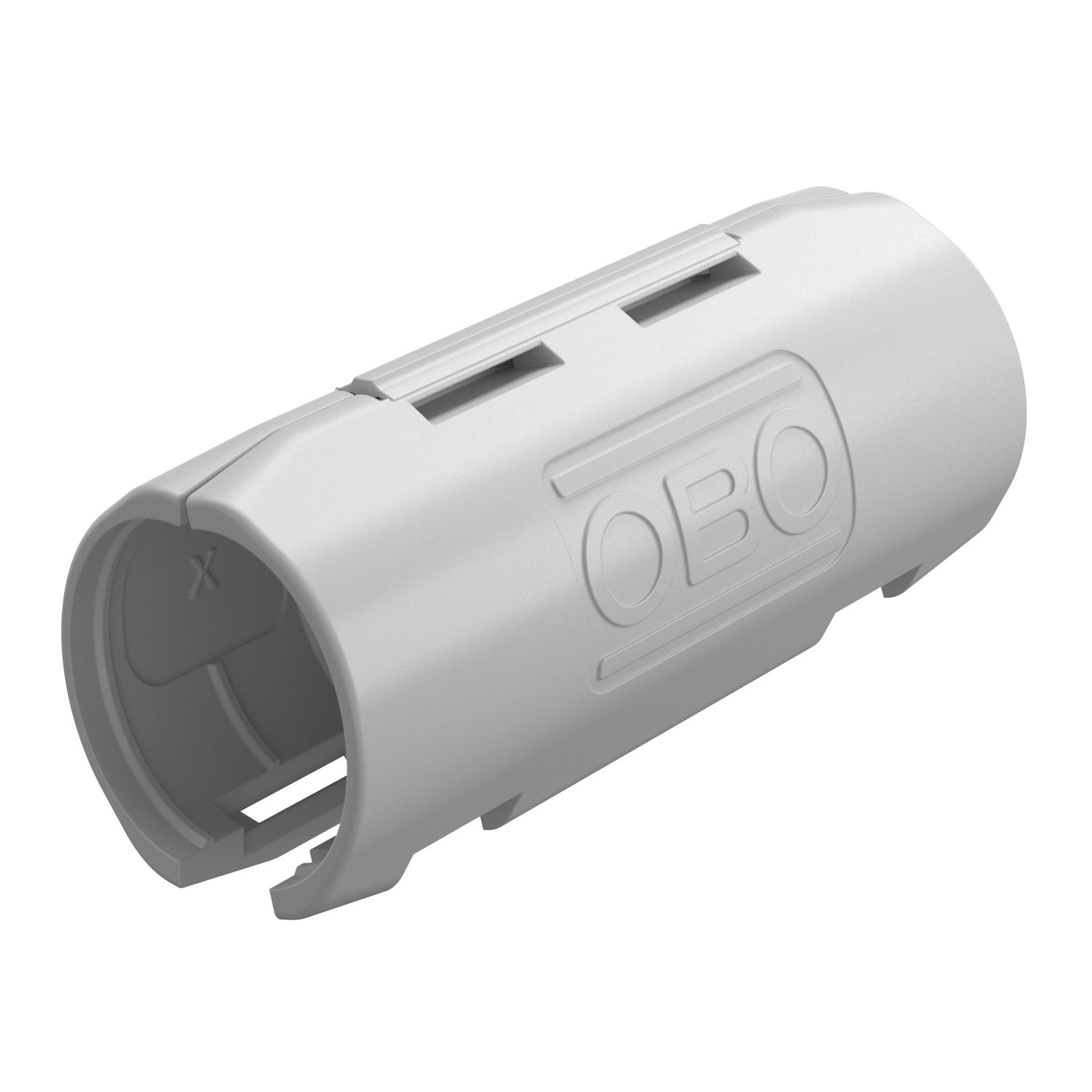

Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension M16 Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Size M16 Dimensions
Dimension B 21 mm Dimension d 15,6 mm Dimension L 52 mm Dimension L1 18 mm - All types
- Downloads
-
Data sheet 3000 MMS M16 LGR / 2154081 , 0.29MB , pdfBrochure Quick Pipe , 1.41MB , pdfDeclaration of conformity 3000 MMS M16 LGR / 2154081 , 0.05MB , pdfREACH Declaration of conformity 3000 MMS M16 LGR / 2154081 , 0.12MB , pdfRoHS Declaration of conformity 3000 MMS M16 LGR / 2154081 , 0.13MB , pdf
