- Product description
-

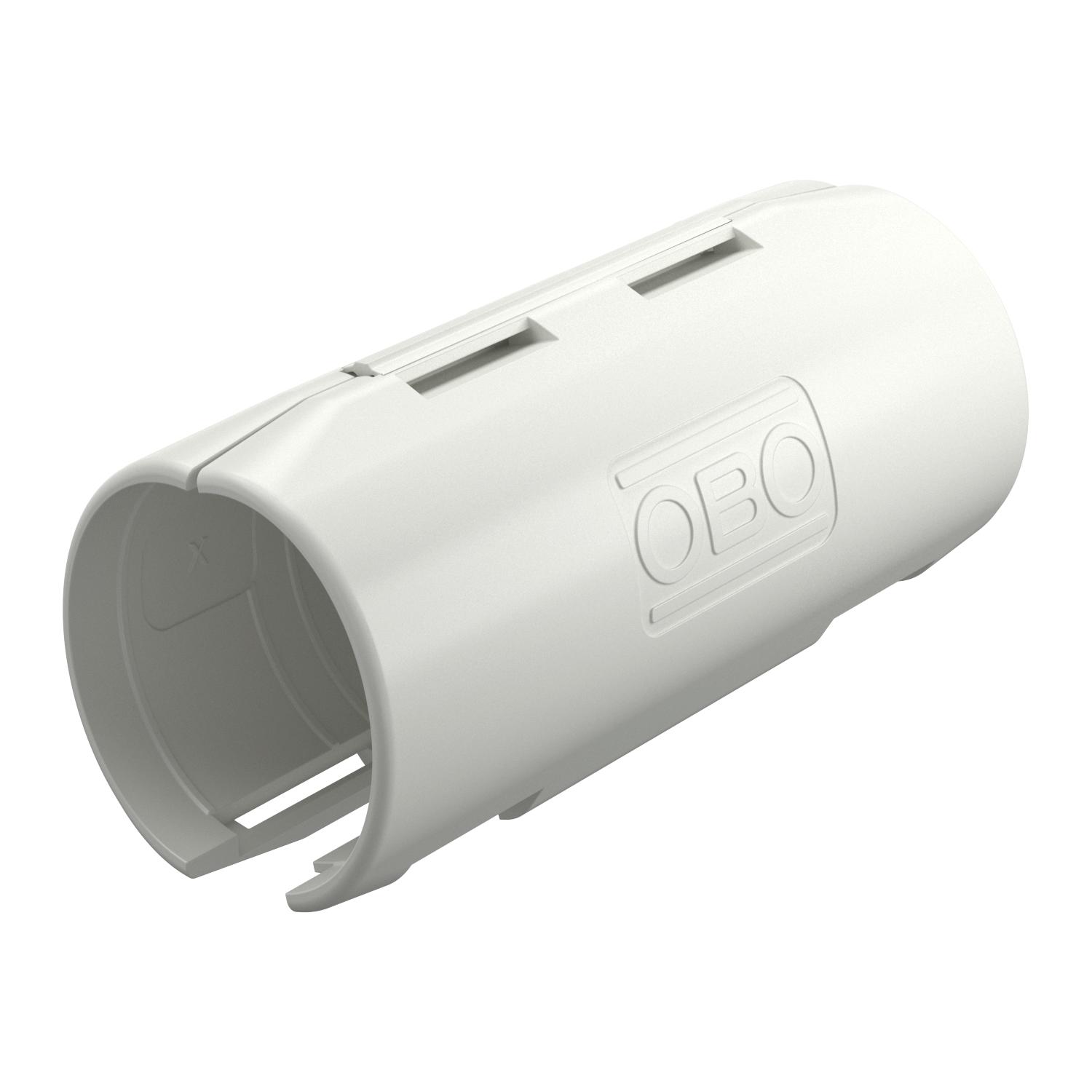

Product descriptionConnection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

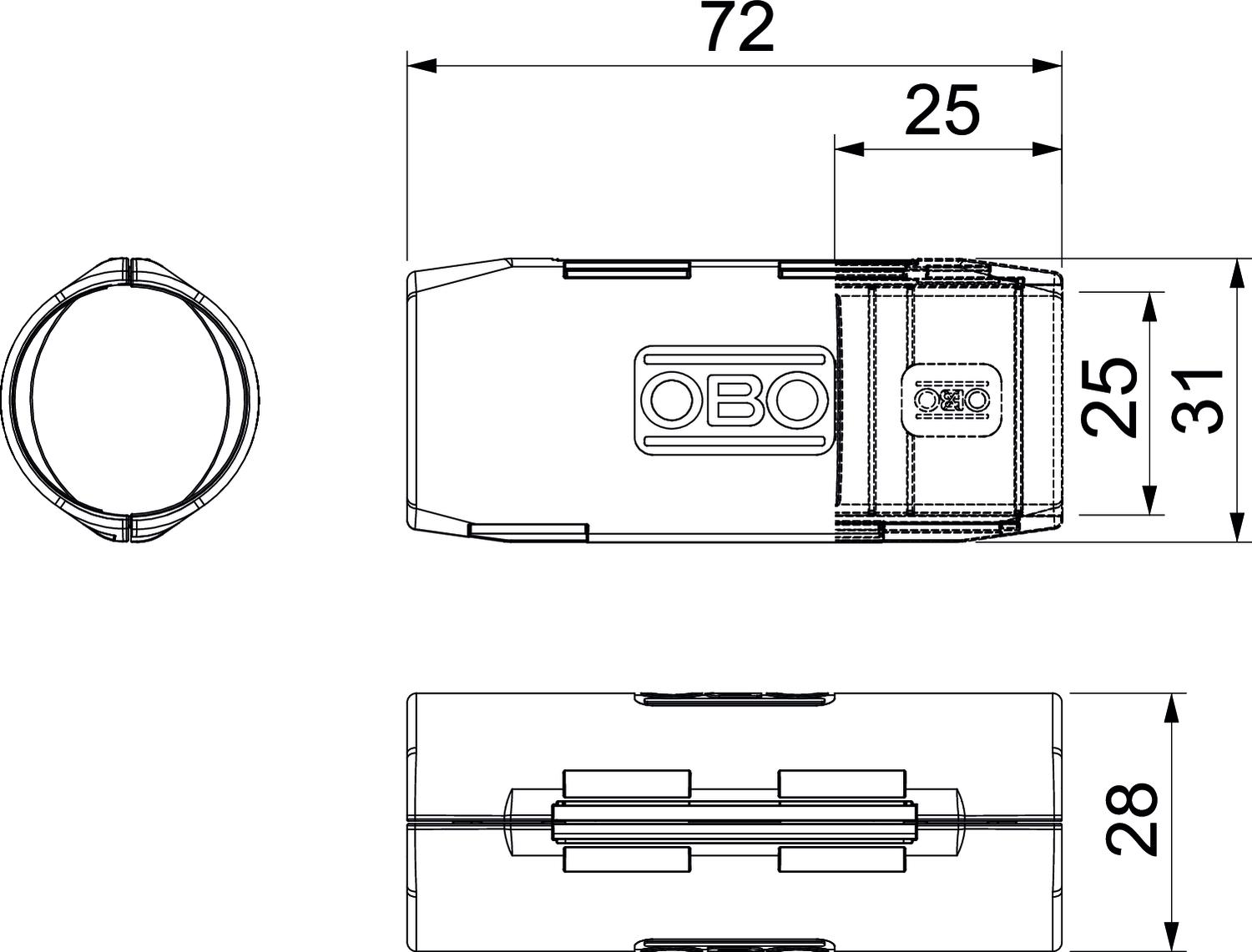

Colour Pure white; RAL 9010 Dimension M25 Dimension B 31 mm Dimension d 25 mm Dimension L 72 mm Dimension L1 25 mm Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Size M25 - All types
- Downloads
-
Data sheet 3000 MMS M25 RW / 2154095 , 0.21MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 3000 MMS M25 RW / 2154095 , 0.12MB , pdfRoHS Declaration of conformity 3000 MMS M25 RW / 2154095 , 0.12MB , pdf
