Quick pipe T piece, light grey 58 | M16
morepic-1 morepic-2

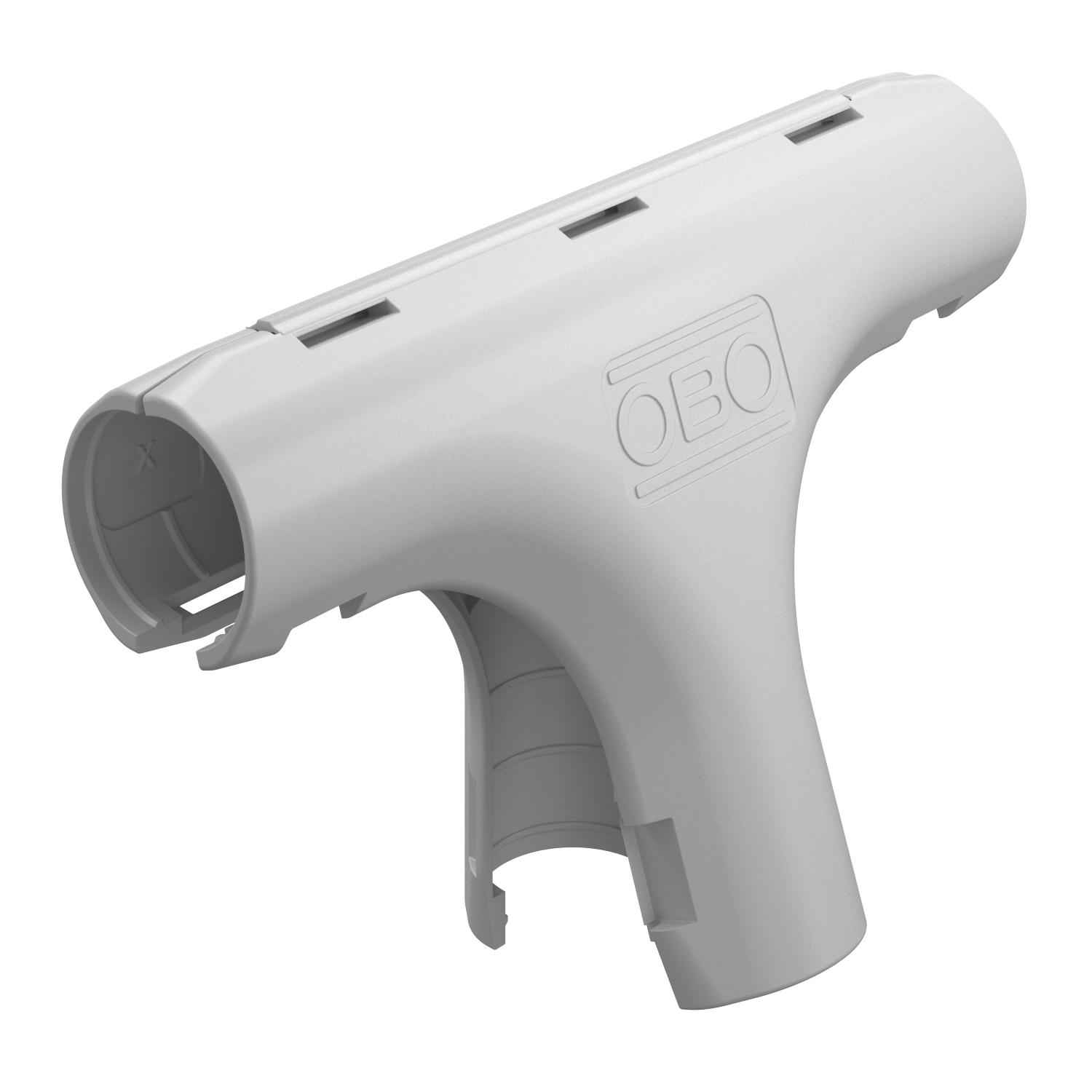

Quick pipe T piece, light grey

Item no. 2153839 | EAN 4012196868384

Product description
Product description
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Brushed surface no
Colour Light grey; RAL 7035

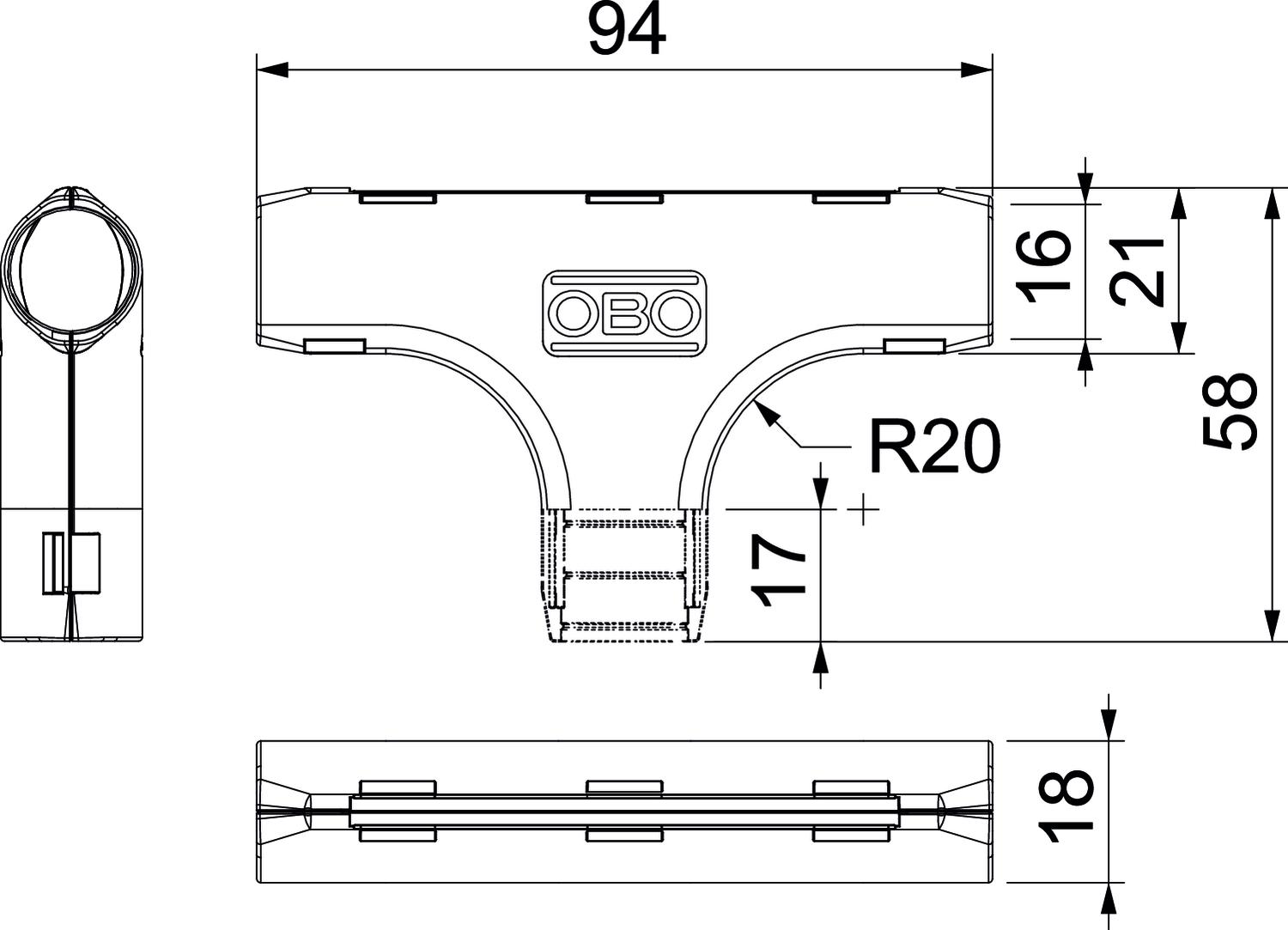

Dimension M16
Dimension B 21 mm
Dimension B2 94 mm
Dimension d 16 mm
Dimension L 58 mm
Dimension L1 17 mm
Dimension R 20 mm
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Polished surface no
Shape T piece
Size M16
Version for Connector
With sleeve no
All types

All types

Types Dimension L Size Item no. Quantity SSU
3000 TMS M16 LGR 58 mm M16 2153839
10 piece
3000 TMS M20 LGR 69 mm M20 2153841
5 piece
3000 TMS M25 LGR 77 mm M25 2153843
5 piece
3000 TMS M32 LGR 87 mm M32 2153845
5 piece
