- Product description
-

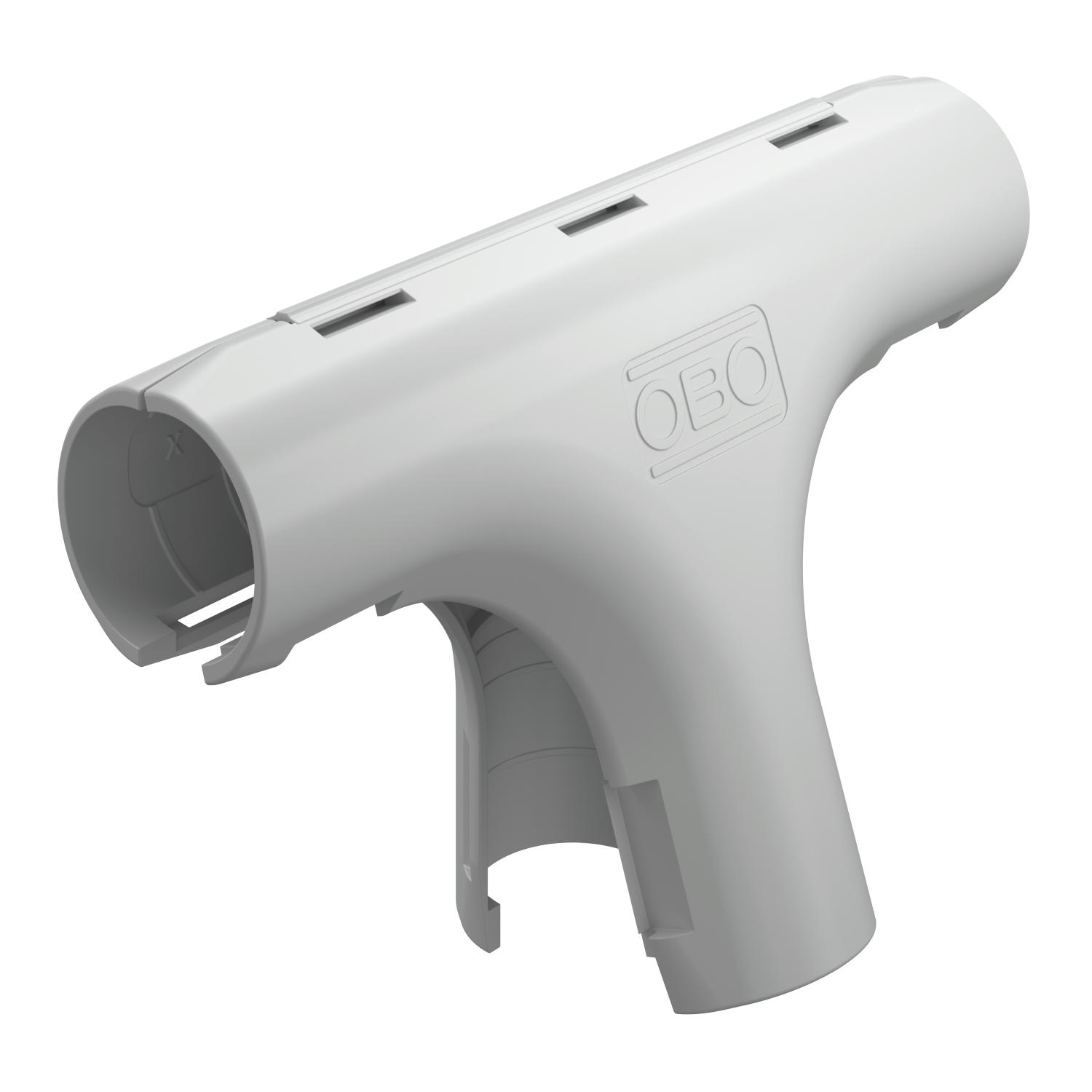

Product descriptionFitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

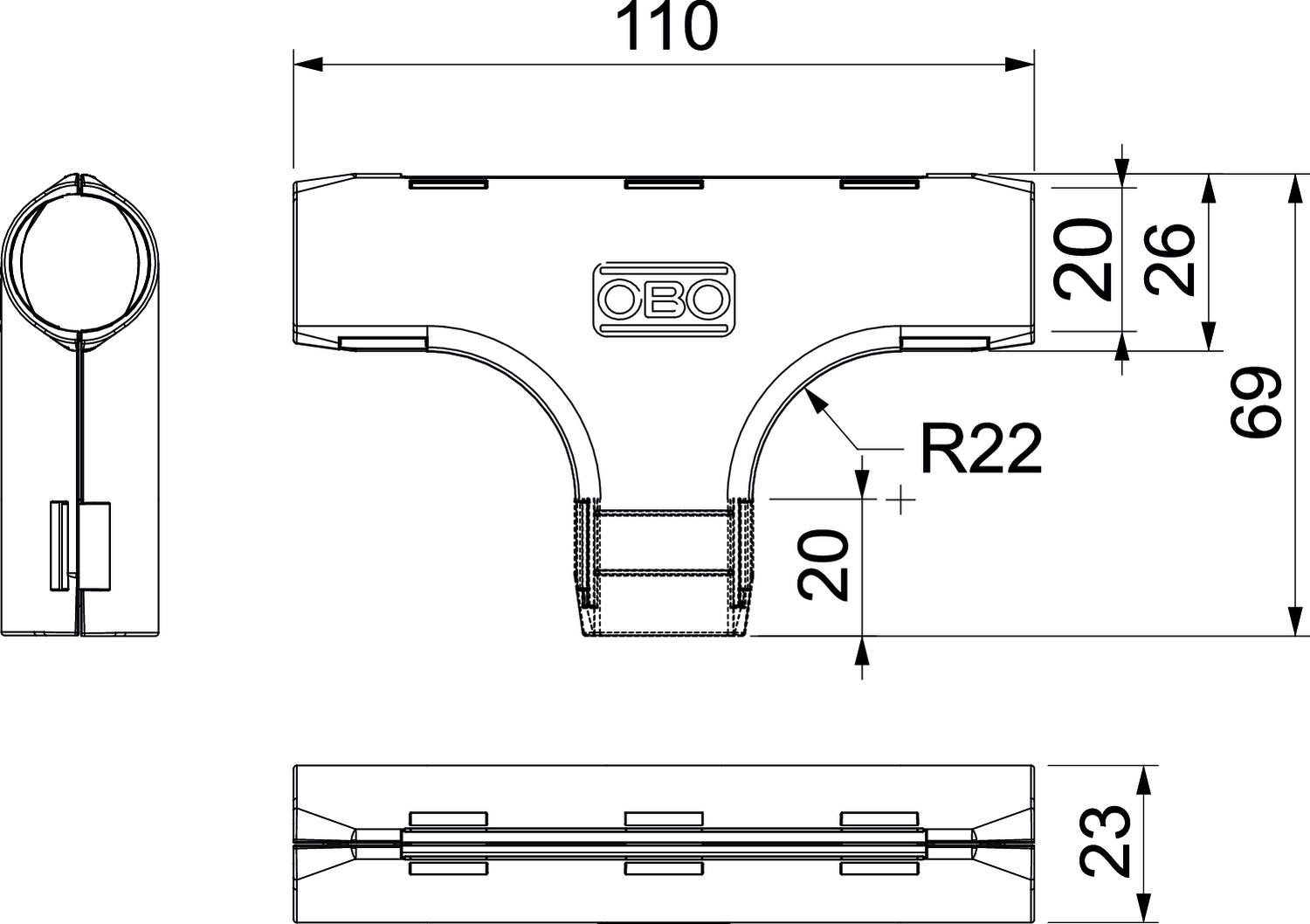

Brushed surface no Colour Light grey; RAL 7035 Dimension M20 Dimension B 26 mm Dimension B2 110 mm Dimension d 20 mm Dimension L 69 mm Dimension L1 20 mm Dimension R 22 mm Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Polished surface no Shape T piece Size M20 Version for Connector With sleeve no - All types
- Downloads
-
Data sheet 3000 TMS M20 LGR / 2153841 , 0.20MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 3000 TMS M20 LGR / 2153841 , 0.12MB , pdfRoHS Declaration of conformity 3000 TMS M20 LGR / 2153841 , 0.13MB , pdf
