Rauduo GT40105 device support, double Pure white; RAL 9010

morepic-1

morepic-2

Rauduo GT40105 device support, double

Item no. 6132171 | EAN 4012196724321

Item no. / Types

Colour

Product description

Product description

Device support with double Schuko socket for the Rauduo trunking system.

Technical data

Technical data

Accessory mounting type	Pre-equipped
Colour	Pure white; RAL 9010
Decoration	Without
Equipment	2x protective contact socket
Halogen-free	no

Height	175 mm
Length	62 mm
Material	Polyvinylchloride
Number of units	1
Width	112 mm

All types

All types

Types	Colour	Item no.	Quantity	SSU
RD 2GT40105 rws	Pure white; RAL 9010	6132171	piece	10 piece
RD 2GT40105 cws	Cream; RAL 9001	6132172	piece	10 piece

Downloads

Data sheet RD 2GT40105 rws / 6132171 , 0.20MB , pdf

Brochure SL skirting trunking and RAUDUO electrical/heating trunking , 4.31MB , pdf

Declaration of conformity RD 2GT40105 rws / 6132171 , 0.15MB , pdf

Selection aid Selection aid Skirting trunkings SL and Rauduo , 0.43MB , pdf

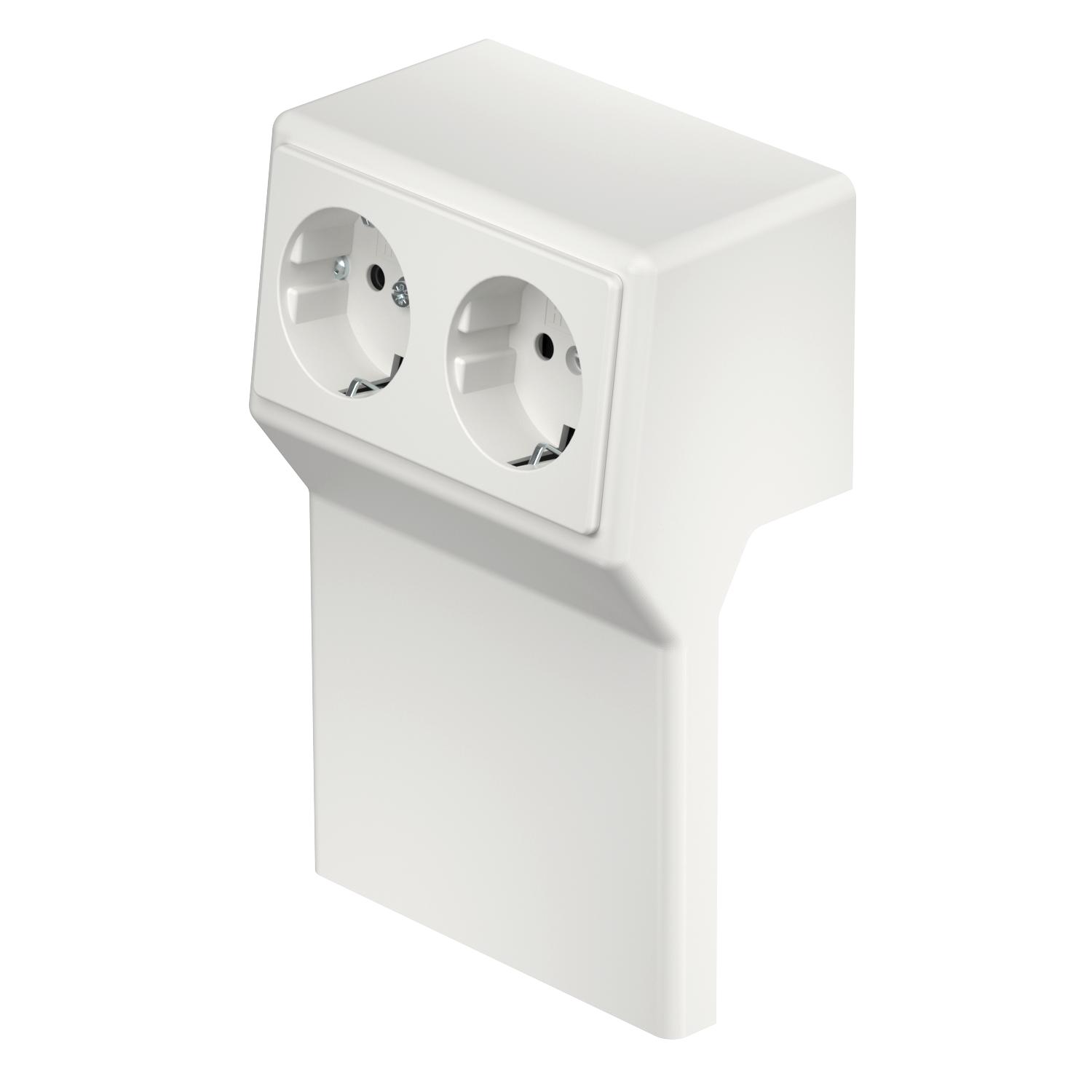

Product graphic RD 2GT40105 rws / 6132171, 36.71 kB, jpg

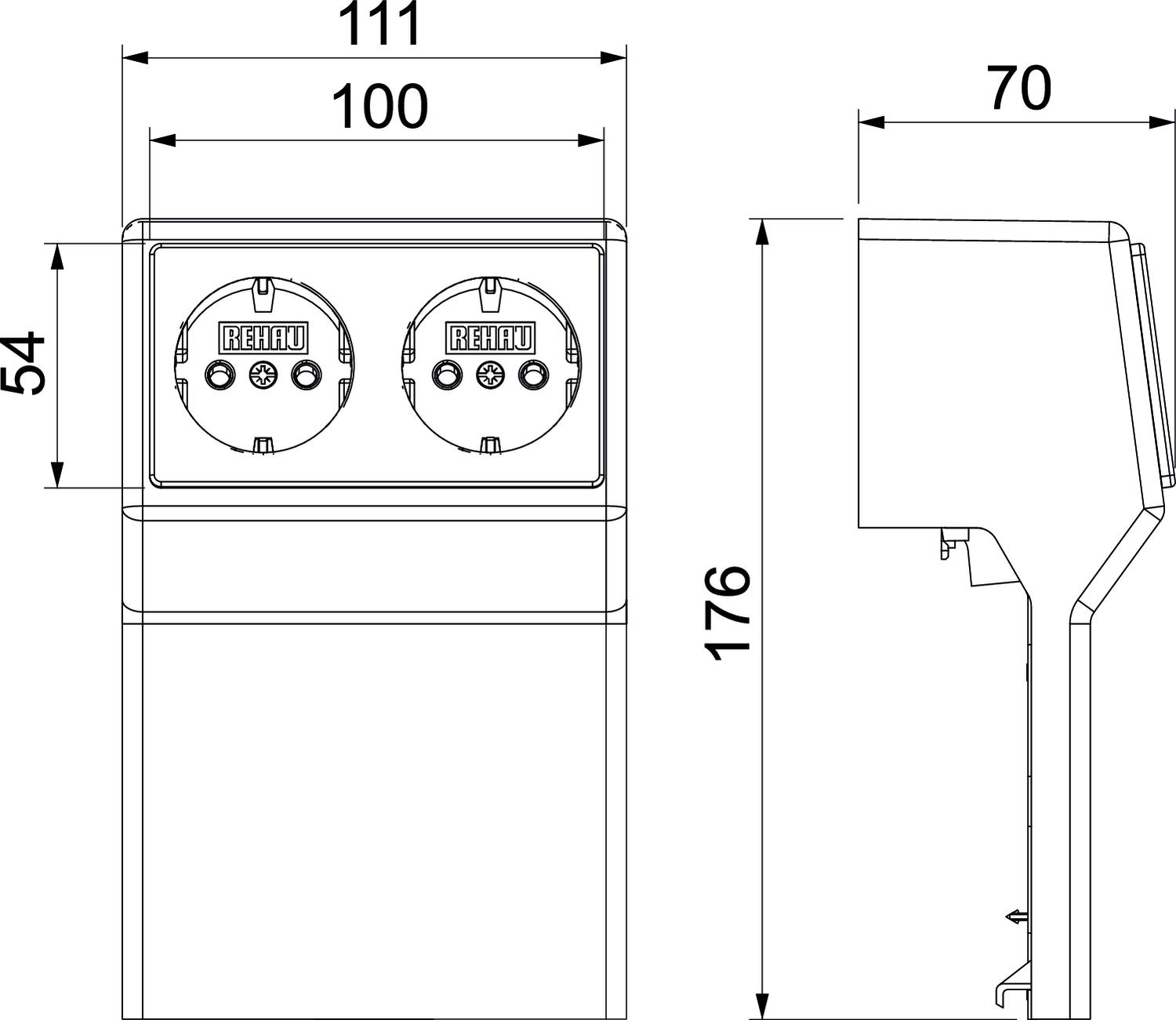

Scale drawing RD 2GT40105 rws / 6132171, 89.73 kB, jpg

No invitation to tender text is available for this product.
