Rauduo GT40105 device support, single Pure white; RAL 9010
morepic-1 morepic-2

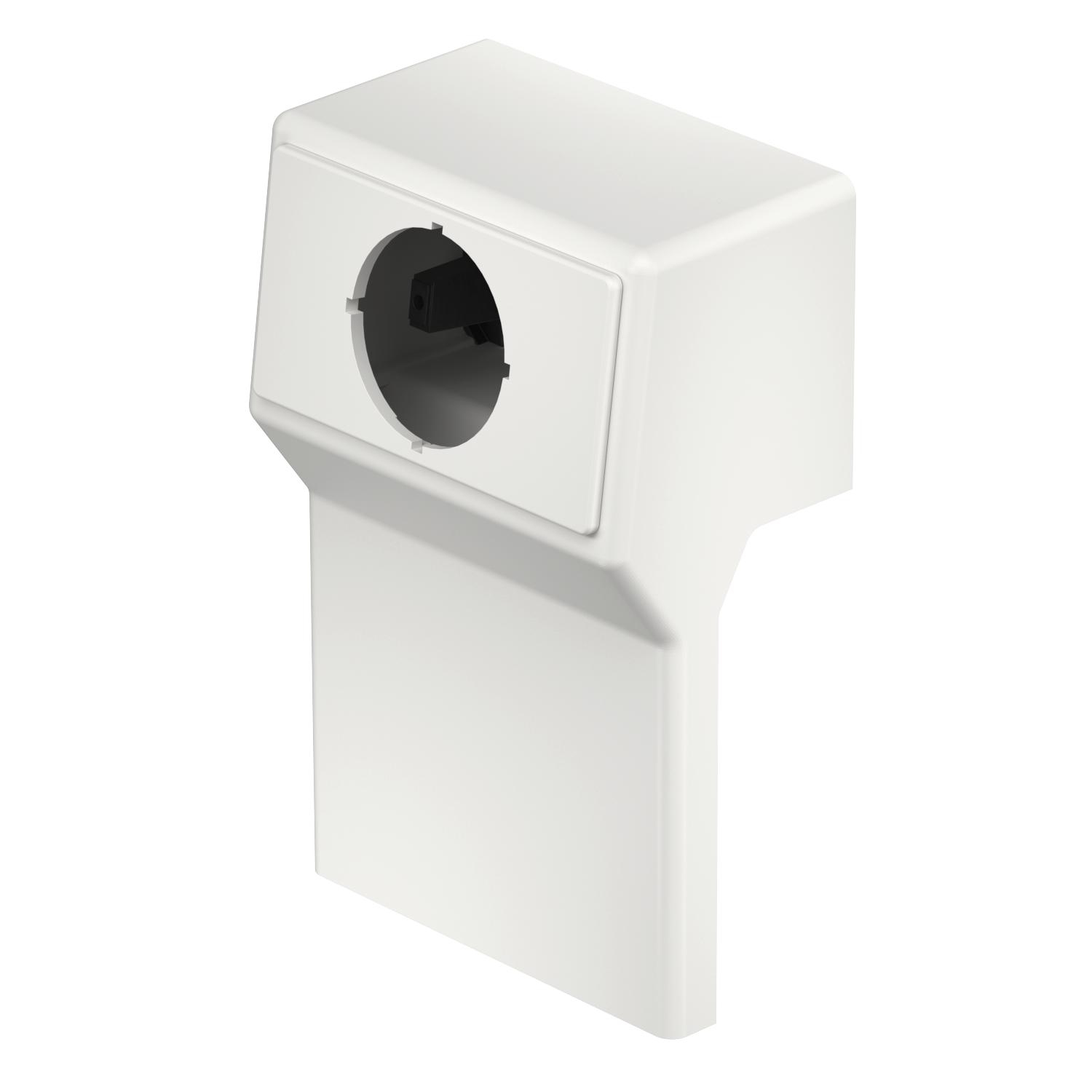

Rauduo GT40105 device support, single

Item no. 6132173 | EAN 4012196725281

Product description

Product description

Device support for the Rauduo skirting trunking system for the installation of devices in support clamp form (according to DIN 49075).
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Accessory mounting type With central plate
Colour Pure white; RAL 9010
Decoration Without
Equipment Without
Halogen-free no
Height 175 mm
Length 62 mm
Material Polyvinylchloride
Width 112 mm
All types

All types

Types Colour Item no. Quantity SSU
RD GT40105 rws Pure white; RAL 9010 6132173
10 piece
RD GT40105 cws Cream; RAL 9001 6132174
10 piece
Downloads

Download

Download

Download

Download

No invitation to tender text is available for this product.
