Reducer/stop-end 110 FS 100 | 110
morepic-1 morepic-2 video-1

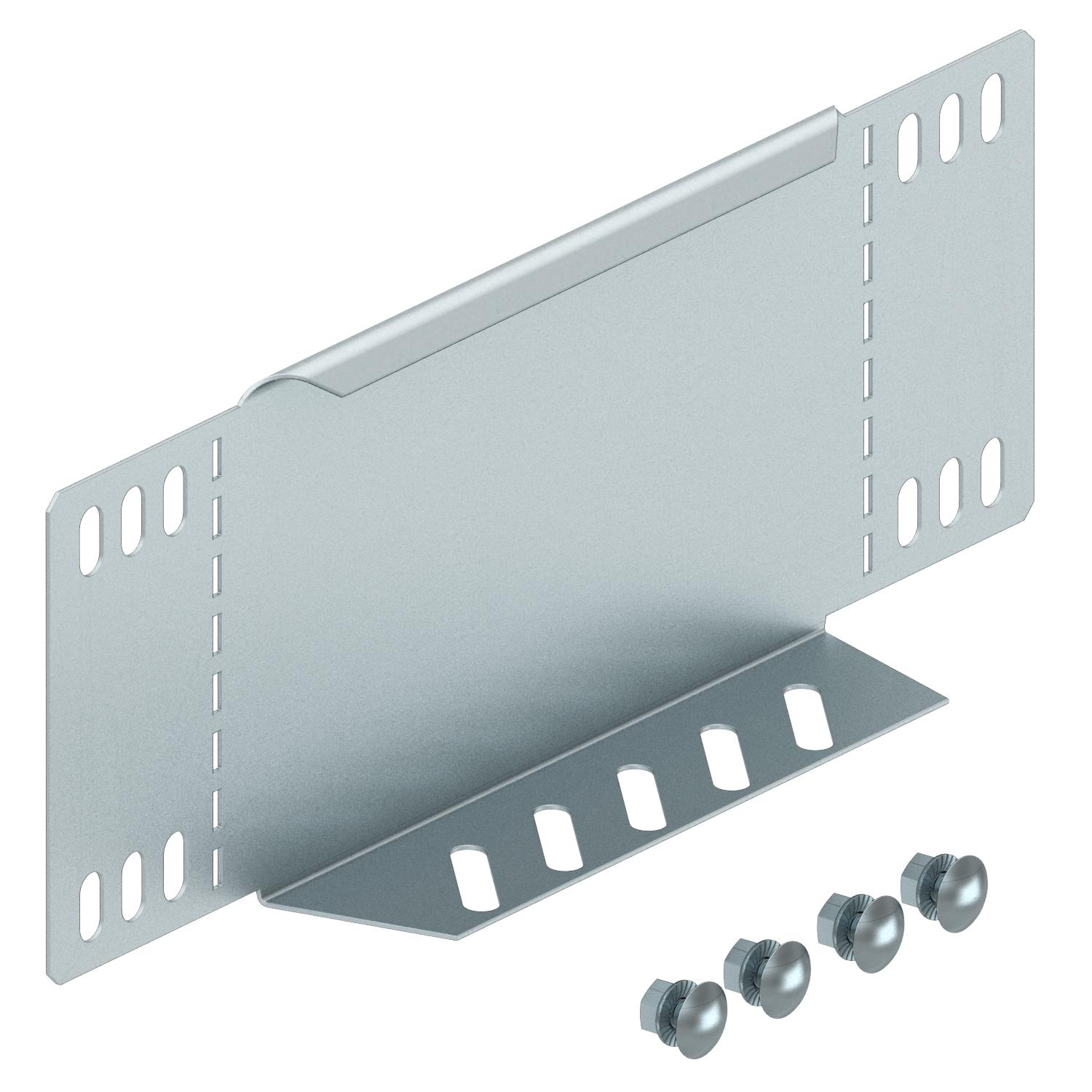

Reducer/stop-end 110 FS

Item no. 7111096 | EAN 4012196242771

110 mm
Product description

Product description

Reducer/stop-end for cable trays with side height 110 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

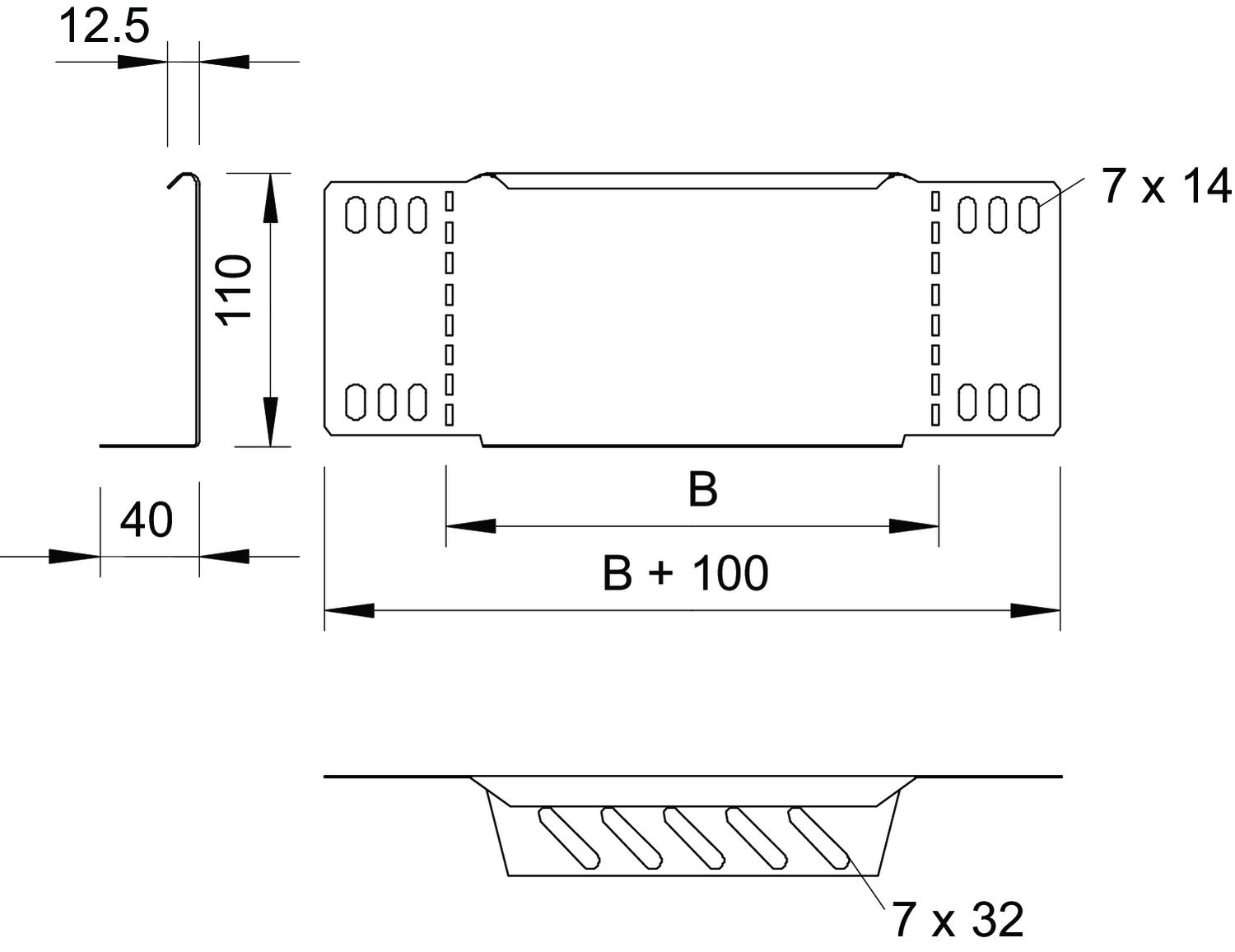

Dimension 110x100
Dimension B 100 mm
Height 4 in
Height 110 mm
Maintain electrical functions no
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanized
Wide-span version no
Width 100 mm
Width 4 in
All types

All types

Types Width Height Item no. Quantity SSU
RWEB 110 FS 100 mm 110 mm 7111096
1 piece
RWEB 115 FS 150 mm 110 mm 7111201
1 piece
RWEB 120 FS 200 mm 110 mm 7111207
1 piece
RWEB 130 FS 300 mm 110 mm 7111304
1 piece
RWEB 140 FS 400 mm 110 mm 7111428
1 piece
RWEB 150 FS 500 mm 110 mm 7111509
1 piece
RWEB 155 FS 550 mm 110 mm 7111541
1 piece
RWEB 160 FS 600 mm 110 mm 7111740
1 piece
