Reducer / stop-end 35 DD 100 | 35

morepic-1

morepic-2

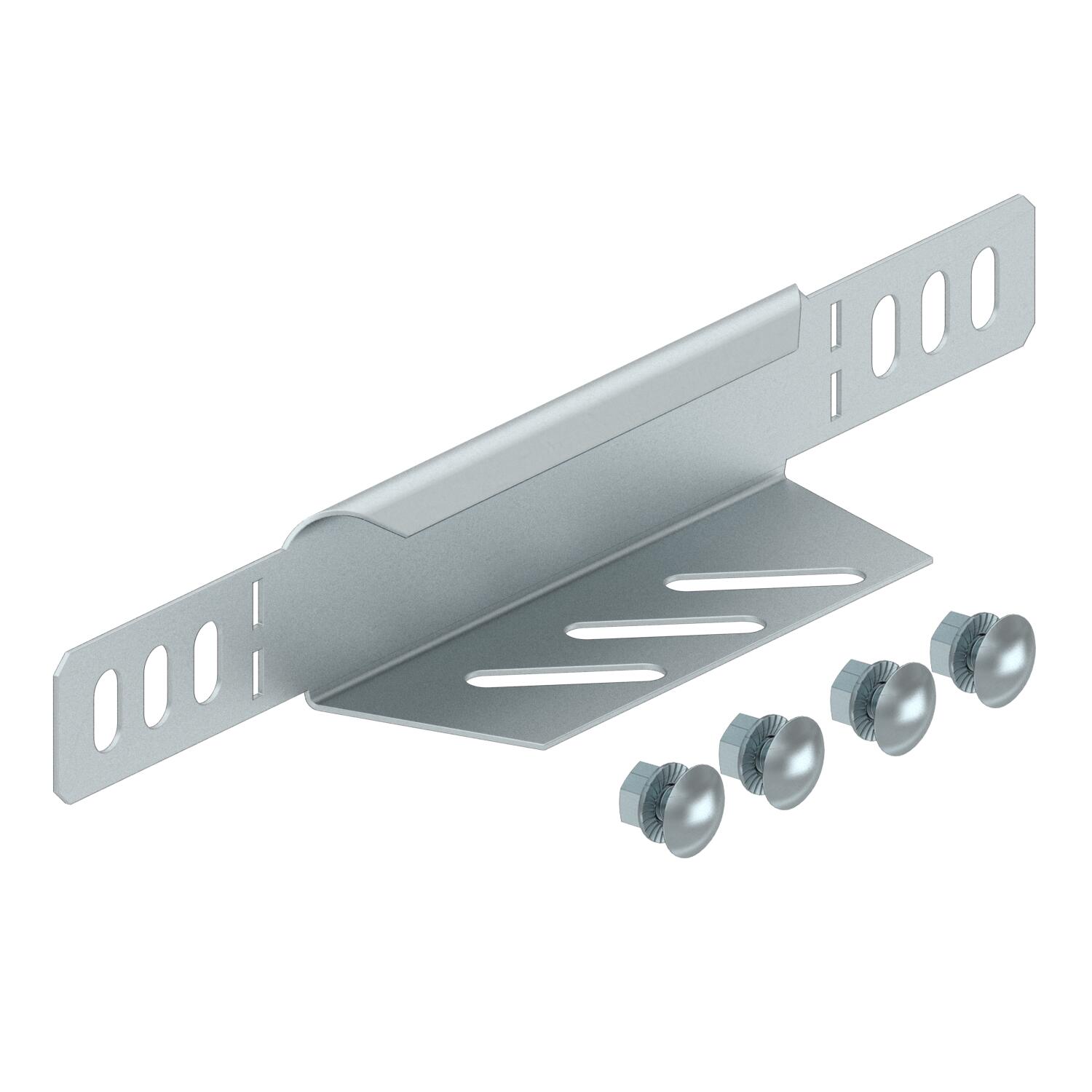

Reducer / stop-end 35 DD

Item no. 7107013 | EAN 4012196240135

Item no. / Types

Width

Height	35 mm

Product description

Product description

Reducer/stop-end for cable trays with side height 35 mm.

Technical data

Technical data

Dimension	35x100
Dimension B	100 mm
Height	35 mm
Maintain electrical functions	no
Material	Steel

Plate thickness	1 mm
Rustproof steel, pickled	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	100 mm

All types

All types

Types	Width	Height	Item no.	Quantity	SSU
RWEB 310 DD	100 mm	35 mm	7107013	piece	1 piece
RWEB 320 DD	200 mm	35 mm	7107048	piece	1 piece

Downloads

Data sheet RWEB 310 DD / 7107013 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity RWEB 310 DD / 7107013 , 0.11MB , pdf

Mounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf

Mounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic RWEB 310 DD / 7107013, 78.10 kB, jpg

Scale drawing RWEB 310 DD / 7107013, 64.97 kB, jpg

RWEB 310 DD / 7107013
