- Product description
-

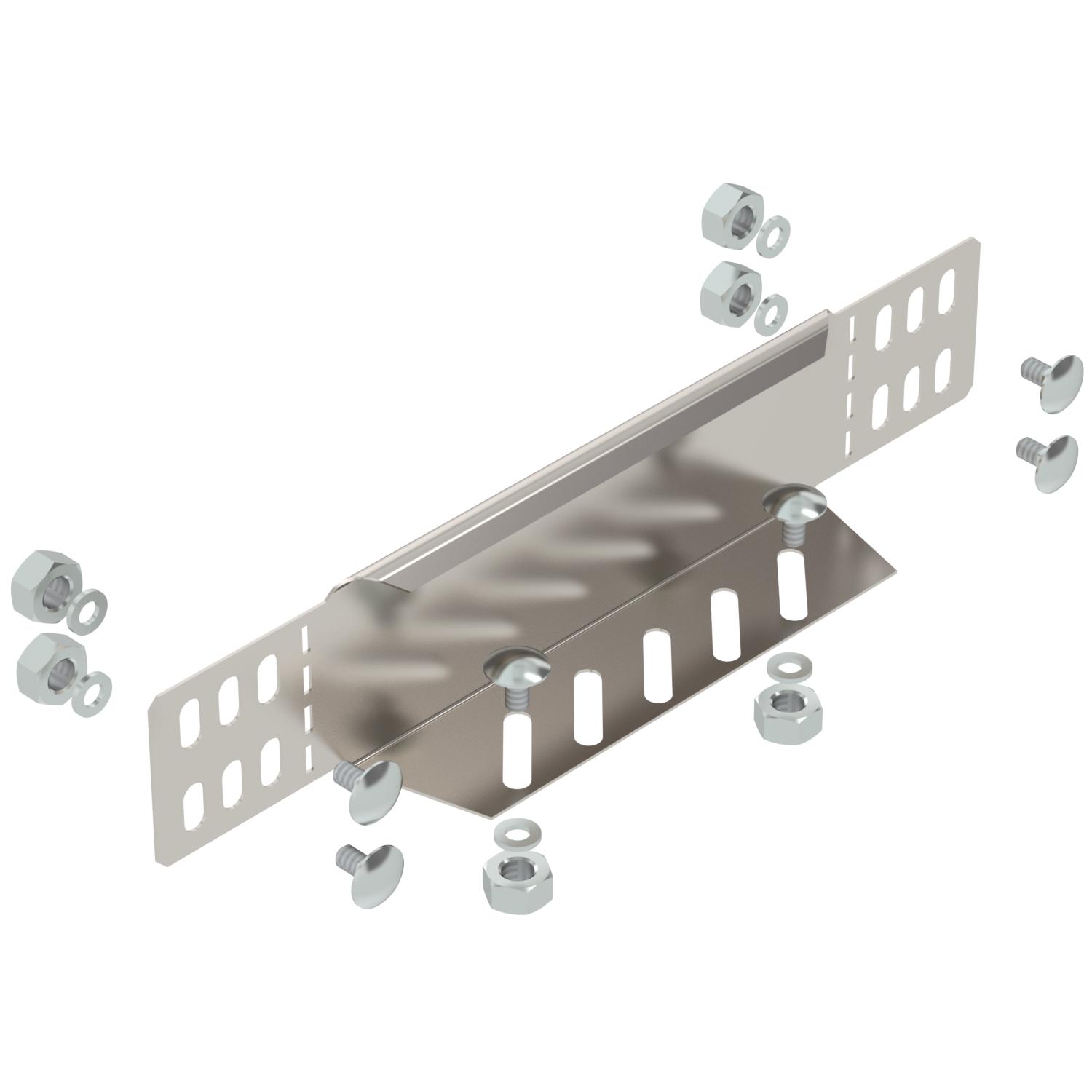

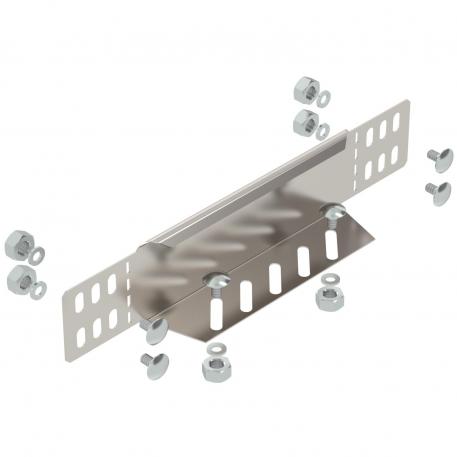

Product descriptionReducer and end closure plate for cable trays with side height 60 mm.
- Technical data
-
Technical data

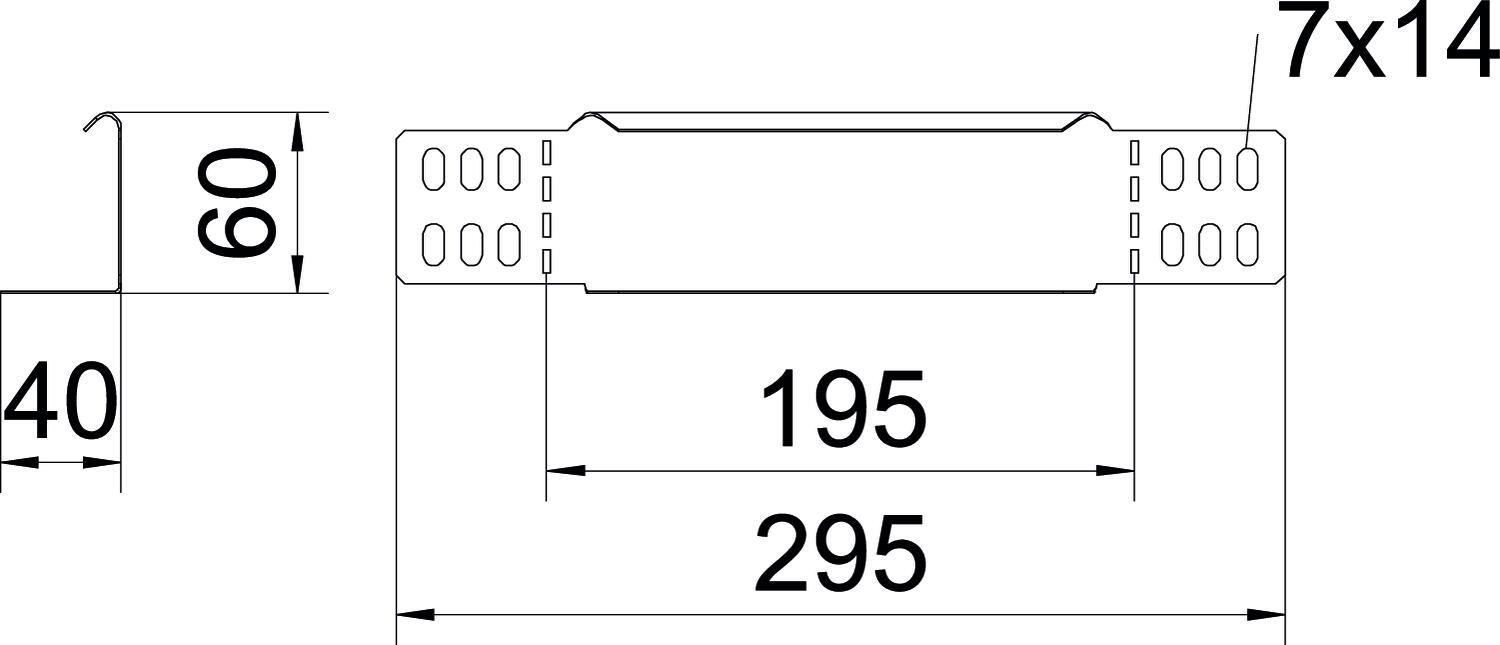

Colour stainless steel Connector version Integrated connector Dimension 60x200 Dimension B 195 mm Height 60 mm Height 2 in Maintain electrical functions no Material Stainless steel Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Surface Bright, treated Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet RWEB 620 A4 / 7109953 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RWEB 620 A4 / 7109953 , 0.10MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
