Reducer/stop-end 60 A4 400 | 60
morepic-1 morepic-2

Reducer/stop-end 60 A4

Item no. 7109957 | EAN 4012196804108

60 mm
Product description
Product description

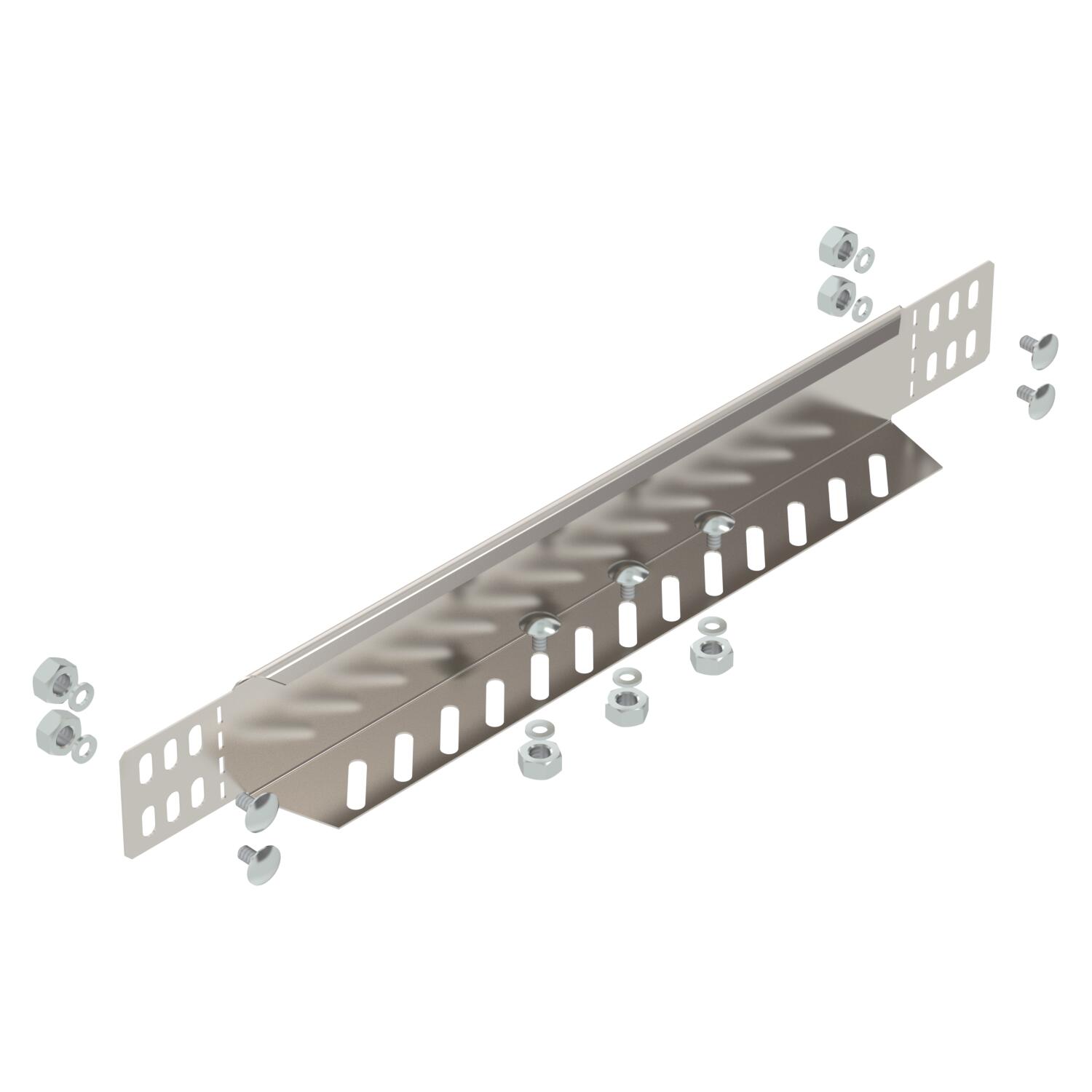

Reducer and end closure plate for cable trays with side height 60 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm

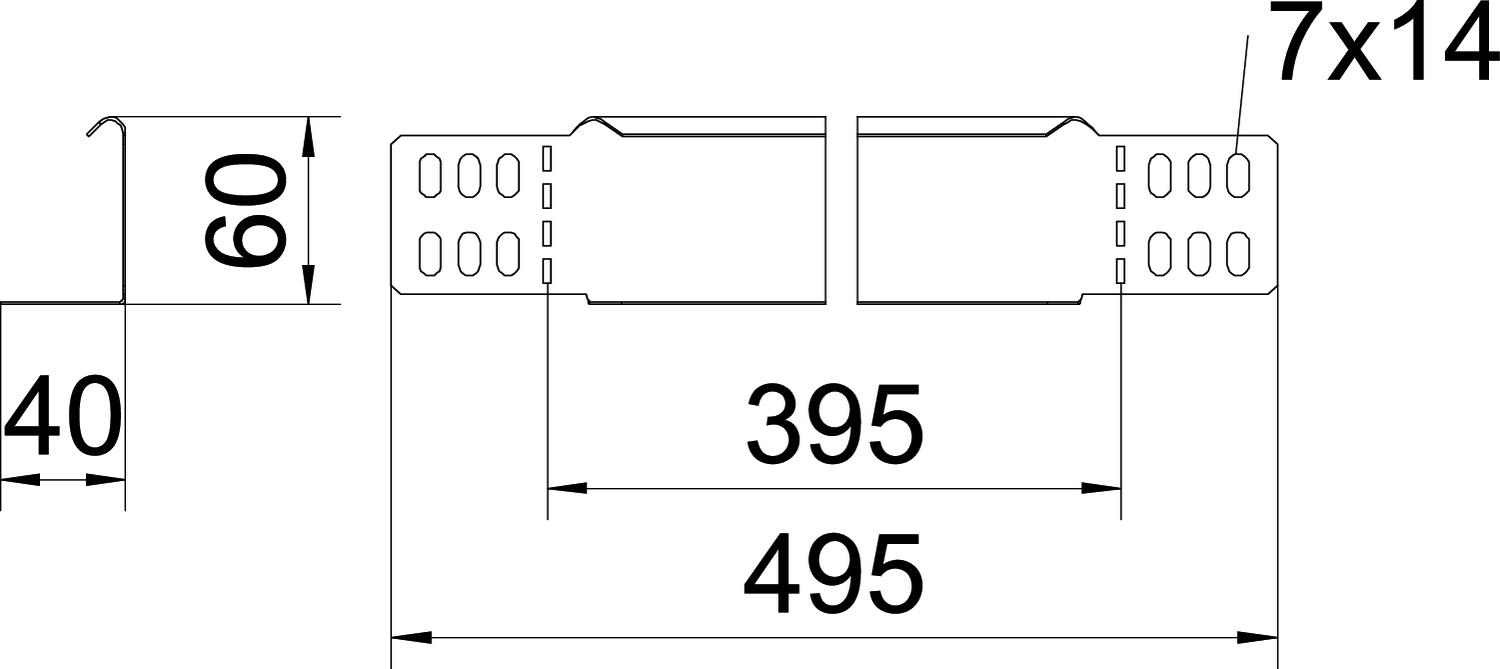

Technical data

Technical data

Colour stainless steel
Connector version Integrated connector
Dimension 60x400
Dimension B 395 mm
Height 60 mm
Height 2 in
Maintain electrical functions no
Material Stainless steel
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Bright, treated
Wide-span version no
Width 400 mm
All types

All types

Types Width Height Item no. Quantity SSU
RWEB 610 A4 100 mm 60 mm 7109951
1 piece
RWEB 620 A4 200 mm 60 mm 7109953
1 piece
RWEB 630 A4 300 mm 60 mm 7109955
1 piece
RWEB 640 A4 400 mm 60 mm 7109957
1 piece
RWEB 650 A4 500 mm 60 mm 7109959
1 piece
RWEB 660 A4 600 mm 60 mm 7109961
1 piece
Downloads

Download

Download
Download

EU declaration of conformity RWEB 640 A4 / 7109957 , 0.10MB , pdf
Download

Download
Download
Download

No invitation to tender text is available for this product.
