- Product description
-
Product description

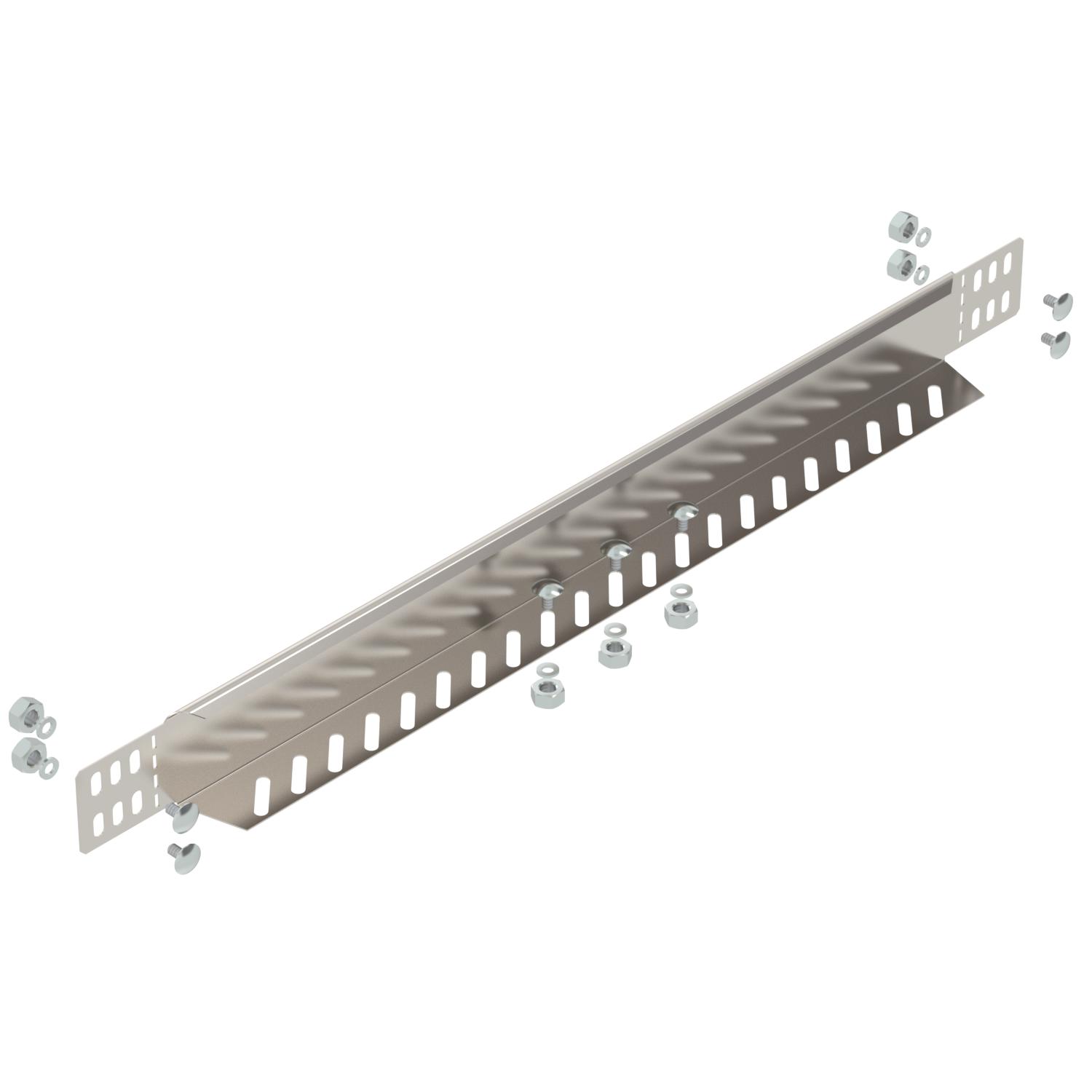

Reducer and end closure plate for cable trays with side height 60 mm.
- Technical data
-
Technical data
Connector version Integrated connector Dimension 60x600 Maintain electrical functions no Material Stainless steel Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rustproof steel, pickled no Surface Bright, treated Wide-span version no Dimensions

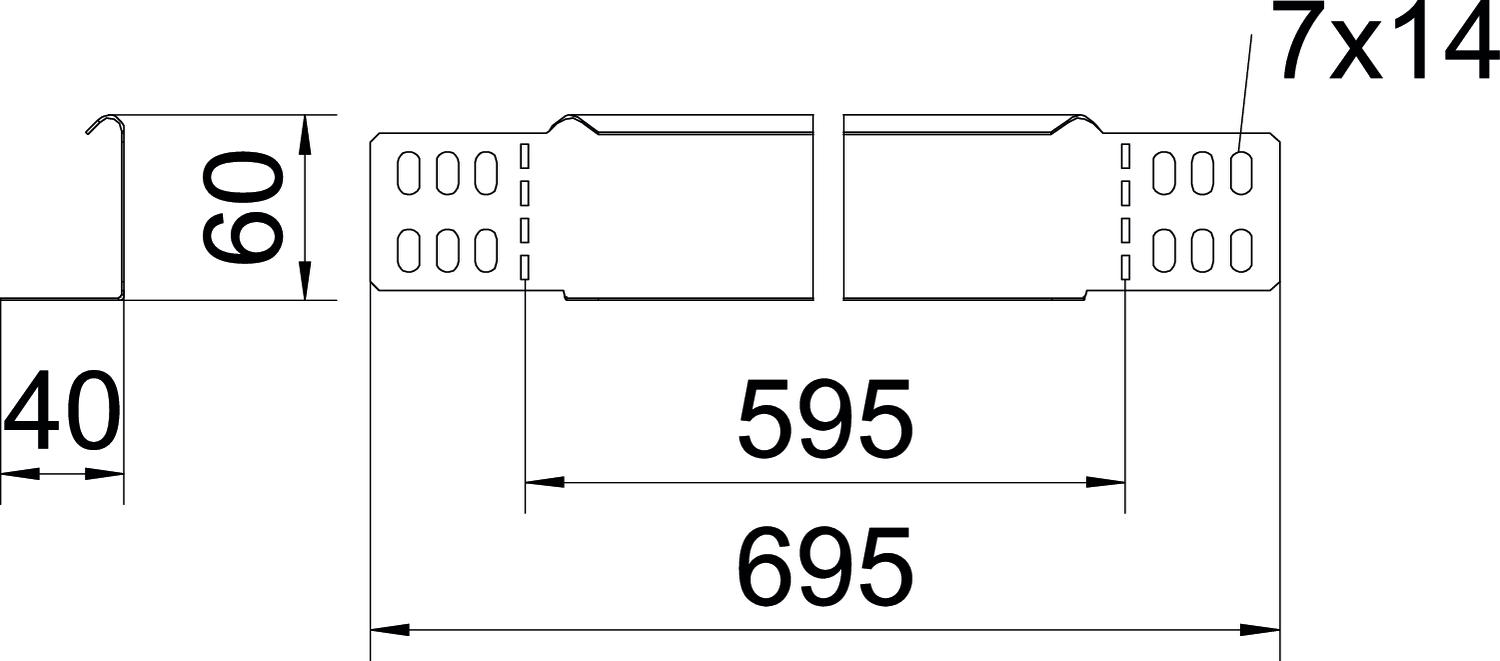

Dimension B 595 mm Height 60 mm Height 2 in Width 600 mm - All types
- Downloads
-
Data sheet RWEB 660 A4 / 7109961 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RWEB 660 A4 / 7109961 , 0.17MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdf
