Reducing sealing insert, metric 9 | 16 | 20
morepic-1 morepic-2

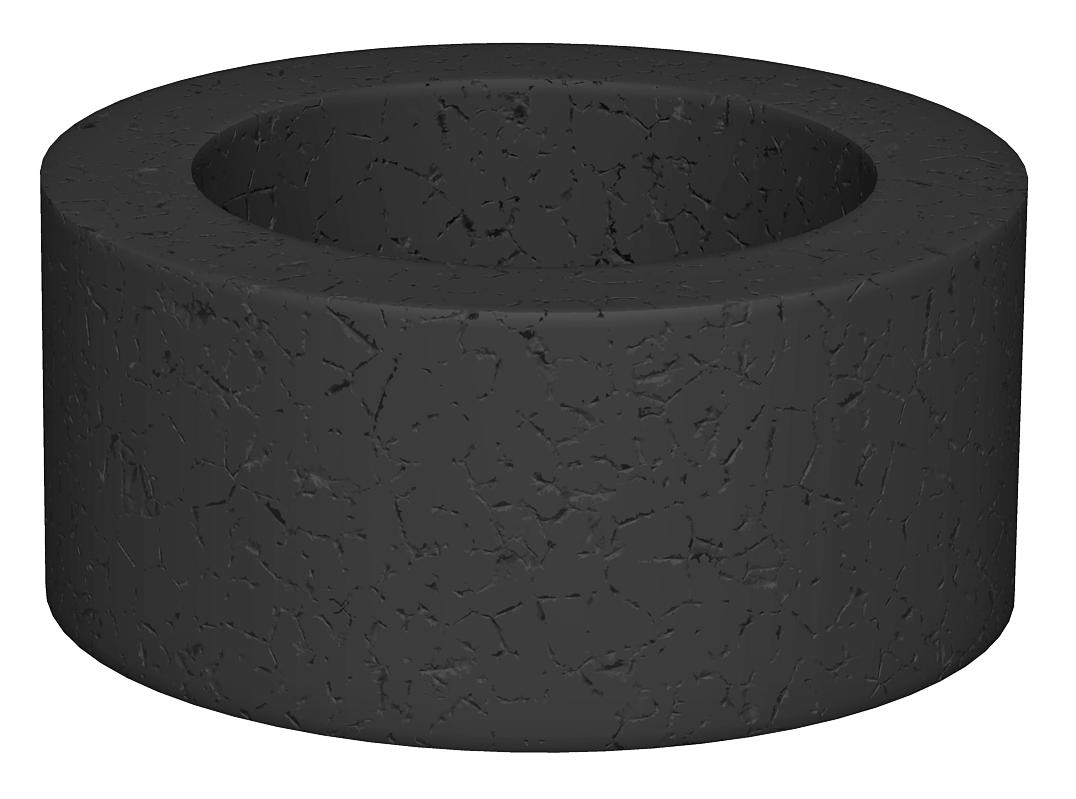

Reducing sealing insert, metric

Item no. 2029566 | EAN 4012195360605

Product description
Product description
Reduces the sealing area D of the cable gland V-TEC VM and V-TEC VM L.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Colour Black

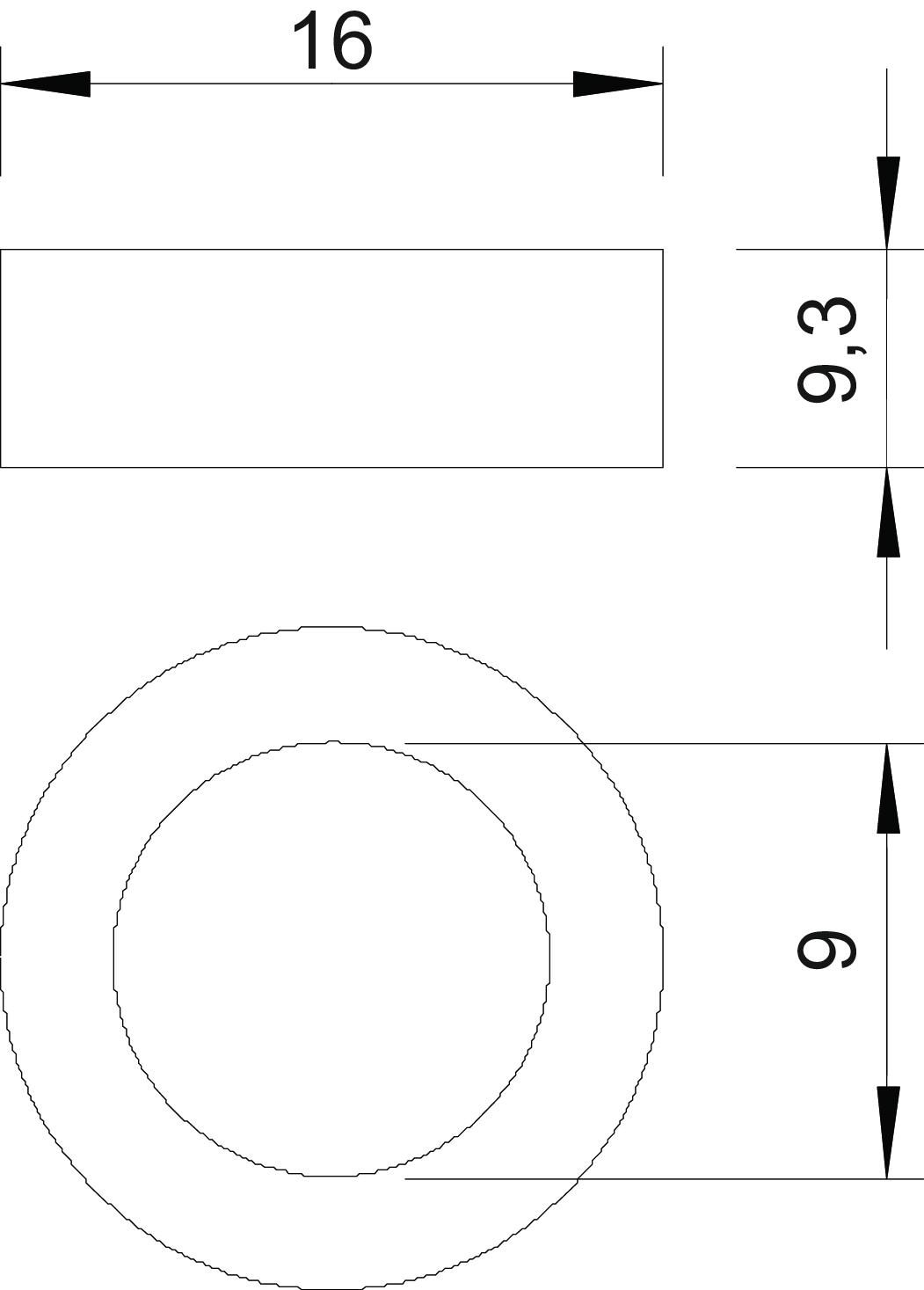

Dimension M20
Dimension D1 9 mm
Dimension D2 16 mm
Dimension H 9,3 mm
External diameter 16 mm
Halogen-free no
Inner diameter 9 mm
Material Rubber mixture
Sealing area D, max. 9 mm
Sealing area D, min. 4 mm
Suitable for metric thread dimension 20
Thickness 9,3 mm
Version for Miscellaneous
All types

All types

Types Dimension D1 Dimension D2 Suitable for metric thread dimension Item no. Quantity SSU
107CR VM 12 5 mm 8.9 mm 12 2029560
1300 piece
107CR VM 16 7 mm 12.7 mm 16 2029563
50 piece
107CR VM 20 9 mm 16 mm 20 2029566
50 piece
107CR VM 25 13 mm 20.7 mm 25 2029569
50 piece
107CR VM 32 16 mm 25.7 mm 32 2029572
25 piece
107CR VM 40 23 mm 33.7 mm 40 2029575
25 piece
107CR VM 50 29 mm 41.7 mm 50 2029578
25 piece
107CR VM 63 40 mm 54.8 mm 63 2029581
25 piece
